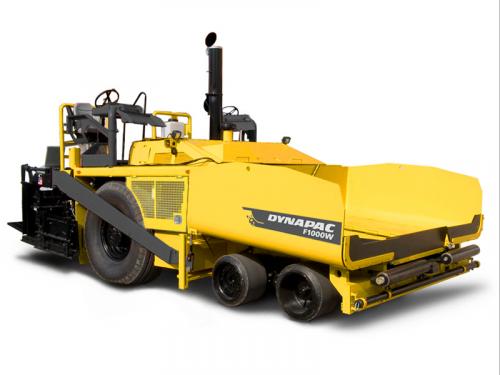

Dynapac F1000W Wheeled pavers

0
My comparison
  • Pictures
  • Dimensions
A. Axle track 2410 mm
B2. Width, standard 3.05 m
H2. Height, with folded exhaust 2693 mm
H3. Height
H4. Dumping height
K. Ground clearance
L1. Length 6650 mm
L2. Length, hopper
L2. Length, wheelbase 2030 mm
L3. Length, wheel module
Discontinued true
The DYNAPAC F1000W is a wheeled finisher that is used for laying bituminous mixed material, rolldown or lean-mixed concrete, track-laying ballast and unbound mineral aggregates for foundations for paving.
Basic paving width: 3.05 m
Max. paving width: 7.9 m
Max. layer thickn.: 305 mm
Theor placement cap.: 1600 t/h

Technical data

Masses
Weight 14970 kg
Traction
Maximum paving speed 1.45 m/s
Maximum travel speed 5.20 m/s
Drive system Integrated hydrostatic drive system
Turning radius 1525 mm
Engine / Drive
Manufacturer/Model Cummins QSB6.7 Tier III
Type 6 cyl water cooled diesel engine with hydraulivally driven fan
Rated power 169 kW (230 hp ) @ 1800 rpm
Emissions according to Tier 4i
Electrical system 24V, 70A
Alternative Engine
Manufacturer/Model
Operation
Operator console Dual swing out operation stations
Conveyor
Conveyor type Dual independent slat conveyor

Operations & maintenance manuals

Please Log in or Register to MyDynapac to get access.

Service Kits

Auger reinforcement kit
Category Subcategory P/N Additional info
Paving Wheeled pavers 4812200217 Auger lubrication
Paving Wheeled pavers 4812269105
Auger wear part kit
Category Subcategory P/N Additional info
Paving Wheeled pavers 4700679743 Auger Kit Complete
Paving Wheeled pavers 4812224489 Kit, 11", auger extension
Paving Wheeled pavers 4812224490 Kit, 17", auger extension
Paving Wheeled pavers 4812224491, 4812224488 Kit, 34", auger extension
Paving Wheeled pavers 4812224490 Auger Extensions
Paving Wheeled pavers D722182100 (4812224490) Extension, left
Paving Wheeled pavers D722182200 (4812224490) Extension, right
Paving Wheeled pavers 4812224488 Auger Extensions
Paving Wheeled pavers D722182300 (4812224488) Extension, left
Paving Wheeled pavers D722182400 (4812224488) Extension, right
Conveyor bearing kit
Category Subcategory P/N Additional info
Paving Wheeled pavers 4812269064, D717954684
Conveyor chain kit
Category Subcategory P/N Additional info
Paving Wheeled pavers D717952339, 4812269059
Conveyor guide kit
Category Subcategory P/N Additional info
Paving Wheeled pavers D717952346, 4812269060
Conveyor sprocket kit
Category Subcategory P/N Additional info
Paving Wheeled pavers 4812269062, D717952360
Conveyor wear part kit
Category Subcategory P/N Additional info
Paving Wheeled pavers 4812269058 Kit, chain, conveyor drive
Emergency hose kit
Category Subcategory P/N Additional info
Paving Wheeled pavers D717951989
Inboard bearing kit
Category Subcategory P/N Additional info
Paving Wheeled pavers D299010014
Outboard bearing kit
Category Subcategory P/N Additional info
Paving Wheeled pavers D717954677
Screed connect kit
Category Subcategory P/N Additional info
Paving Wheeled pavers 4812224504 Disconnect
Service kit
Category Subcategory P/N Additional info
Paving Wheeled pavers 4812269054, 4812269131 Start up Kit 100H
Paving Wheeled pavers 4812269057 Kit, hopper front
Paving Wheeled pavers 4812244099 Kit, hopper skirt-low version
Paving Wheeled pavers D717955090 Uptime kit
Paving Wheeled pavers 4812222082 Key replacement kit
Service kit , 1000H
Category Subcategory P/N Additional info
Paving Wheeled pavers 4812269056, 4812269132
Service kit , 500H
Category Subcategory P/N Additional info
Paving Wheeled pavers 4812269055,
Wear plate kit
Category Subcategory P/N Additional info
Paving Wheeled pavers 4812269061, D717952353
Paving Wheeled pavers 4812269086, D717954691 wheel
Working lights kit
Category Subcategory P/N Additional info
Paving Wheeled pavers 4812269087, D717954691 track

Spare parts manuals

Eager to see the spare parts of Dynapac F1000W?

Please Log in or Register to MyDynapac to get access.

Schematics

Eager to see the schematics of Dynapac F1000W?

Please Log in or Register to MyDynapac to get access.
