Dynapac CC2200 Double drum vibratory rollers

  • Pictures

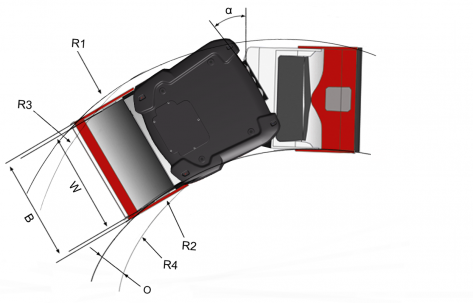

  • Dimensions
A. Wheelbase 3,340 mm
B. Width 1,620 mm
C. Curb clerance 715 mm
D. Drum diameter 1,150 mm
H1. Height, with ROPS/cab 2,990 mm
K. Ground clearance 270 mm
L. Length 4,490 mm
O. Off-set 335 mm
R1. Turning radius, outside 6,570 mm
R2. Turning radius, inside 5,070 mm
R3. Turning radius with off-set, outside 4890 mm
R4. Turning radius with off-set, inside 3390 mm
S. Drum shell thickness 20 mm
W. Drum width 1,500 mm
α. Steering angle ±32°

Product information

These tandem rollers are designed with efficiency in mind - application efficiency, operator efficiency, compaction control efficiency and service efficiency. Performance, visibility, operators comfort, compaction control and serviceability for the new CC line will appeal to owners, operators and service crews. The environmental benefits appeal to everyone. All models have high frequency vibration as standard. There is a number of features to the CC rollers to make servicing quick and easy, ensuring maximum uptime.

Features & benefits


Dynapac Dyn@Link
Dyn@Link

A tool to monitor and control their machine fleet efficiently and conveniently.


Dynapac Eco mode
Eco mode

Big fuel savings with ECO!

Technical data

Masses
Max. operating mass 9,000 kg
Operating mass (incl. ROPS) 7,600 kg
Operating mass (incl. Cab) 7,800 kg
Module mass (front/rear) 3,800 kg/ 3,800 kg
Traction
Speed range 0-12 km/h
Vertical oscillation ±7°
Theor. gradeability 42 %
Compaction
Centrifugal force (high/low amplitude) 78 kN/67 kN
Nominal amplitude (high/low) 0.7 mm/0.3 mm
Static linear load (front/rear) 25.3/25.3 kg/cm
Vibration frequency (high/low amplitude) 48 Hz/67 Hz
Water tank 750 l
Engine
Manufacturer/Model Deutz TCD 3.6 HT T4f
Type Water cooled turbo Diesel
Rated power, SAE J1995
Rated power, SAE J1995 55 kW (74 hp ) @ 2,200 rpm
Fuel tank capacity 130 l
Alternative Engine
Manufacturer/Model Cummins QSB 3.3 IIIA/T3
Type Water cooled turbo Diesel
Rated power, SAE J1995 74kW (99hp) @ 2200 rpm
Alternative Engine
Manufacturer/Model Deutz TCD 3.6 HT StageV
Type Water cooled turbo Diesel
Rated power, SAE J1995 55 kW (74 hp ) @ 2,200 rpm
Hydraulic system
Driving Axial piston pump with variable displacement.
Axial piston motors (2) with variable displacement.
Vibration Axial piston pumps (2) with variable displacement.
Axial piston motors (2) with constant displacement.
Steering Gear pump with constant displacement.
Service brake Hydrostatic in forward and reverse lever.
Parking/Emergency brake Failsafe multidisc brake in both drums.

Spare parts manuals

Compaction data
