摊铺设备

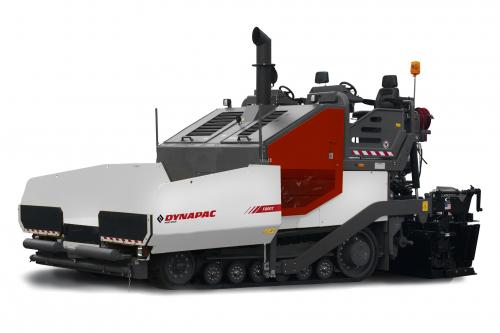

Dynapac F800T 履带式摊铺机

  • 图片

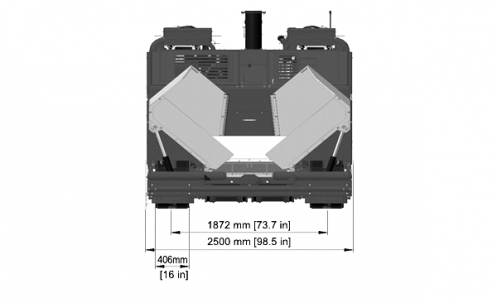

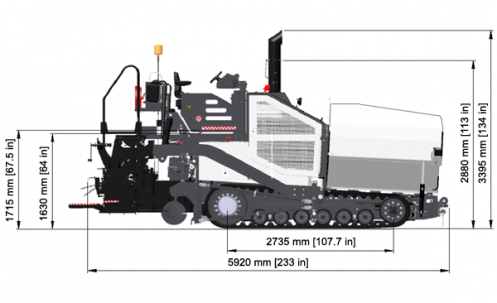

  • 尺寸
A. 履带前后轴距
H3. 基本高度
L1. 长 度
L2. Length, wheelbase

产品信息

Introducing Dynapac F800T 8ft (2,44m) rubber track paver, a perfect addition to the existing highway class paver line. Dynapac F800T combines innovative features and decades of experience, making it as one of the best 8ft (2,44m) highway class pavers available in the US market.

技术参数

质量
标准重量(含熨平板主机) 17.78 t
重量 15.2 t
牵引
摊铺速度 0 - 27 m/min
最大摊铺速度 60 m/min
行走速度 14 km/h
发动机
制造商/型号 Cummins QSB 6.7-173
排放标准 Tier 4F
類型 6 cylinder water cooled diesel
engine with hydraulically driven fan
额定功率, SAE J1995 129 kW (173 hp ) @ 2,300 rpm
电源 24V / 70A
Generator (tractor mounted) 34 kVA
油箱容积 320 l
Operation
操纵台 Dual Swing out
操作面板 Ergonomic dashboard with Multifunction
display on each console
传送带
类型 Dual bar feeder
输送带宽度 2 x 510 mm
控制 Two independent conveyor half's with
infinitely variable speed. Both half's can
be controlled separately. Conveyor control
independent of Augers by Ultrasonic sensors.

操作和维护手册

备件手册

压实数据

LEVEL II
