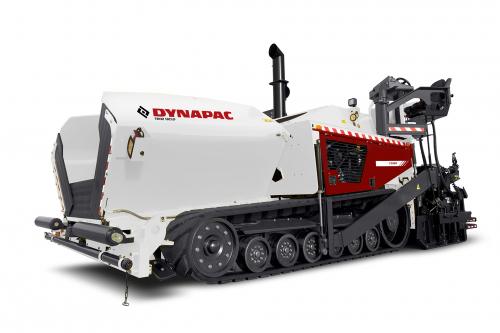

Dynapac F1000T (T4)

Dynapac F1000T (T4) US Highway pavers

0
My comparison
  • Pictures

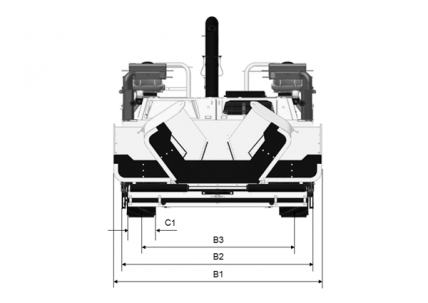

  • Dimensions
A. Axle track 2413 mm
A. Wheelbase
B1. Width, max. 3277 mm
B2. Width, standard 3048 mm
B3. Width, center of tracks 2413 mm
H1. Height, max. 3353 mm
H2. Height, transport 2690 mm
H2. Height, with folded exhaust
H3. Height 1600 mm
L1. Length 6500 mm
L2. Length, wheelbase 3048 mm
L3. Length, wheel module
C1. Track width 457 mm
Discontinued false
Basic paving width: 3.05 m
Max. paving width: 7.93 m
Max. layer thickn.: 305 mm
Theor placement cap.: 1600 t/h

Technical data

Masses
Weight 15875 kg
Tractor weight with rear ext screed g
Tractor weight with front ext screed g
Tractor weight including Mat Master screed
Traction
Paving speed 0-32 m/min
Maximum paving speed 73 m/min
Transport speed 16.0 km/h
Engine / Drive
Manufacturer/Model Cummins QSB 6.7-220 (Tier 4i)
Type 6 cylinder water cooled diesel
engine with hydraulically driven fan
Electrical system 24 V
Fuel tank capacity 370 l
Rated power, SAE J1995 164 kW (220 hp ) @ 2000 rpm
Generator (tractor mounted) 34 kW, 60 Hz, Drive: Hydraulic
Alternative Engine
Manufacturer/Model Cummins QSB 6.7-225 (Tier 4 Final)
Type 6 cylinder water cooled diesel
engine with hydraulically driven fan
Rated power, SAE J1995 225 hp @ 2300 rpm
Operation
Operator console Dual Swing out
Dashboard Ergonomic dashboard with Multifunction display on each console
Conveyor
Conveyor type Dual bar feeder
Conveyor width 2 x 685 mm
Conveyor control Two independent conveyor half's with
infinitely variable speed. Both half's can
be controlled separately. Conveyor control
independent of Augers by Ultrasonic sensors.

Operations & maintenance manuals

Service Kits

Auger reinforcement kit
Category Subcategory P/N Additional info
Paving US Highway pavers 4812269105
Auger wear part kit
Category Subcategory P/N Additional info
Paving US Highway pavers 4812224490 Auger Extensions
Paving US Highway pavers D722182100 Auger (4812224488), Extension, left
Paving US Highway pavers D722182200 Auger (4812224488), Extension, right
Paving US Highway pavers 4812224488 Auger Extensions
Paving US Highway pavers D722182300 Auger, (4812224488) Extension, left
Paving US Highway pavers D722182400 Auger, (4812224488) Extension, right
Paving US Highway pavers 4700679743 Auger flight kit, complete
Paving US Highway pavers 4812224489 Kit, 11", auger extension
Paving US Highway pavers 4812224490 Kit, 17", auger extension
Paving US Highway pavers 4812224488 Kit, 34", auger extension
Conveyor bearing kit
Category Subcategory P/N Additional info
Paving US Highway pavers D717954677, 4812269064
Conveyor chain kit
Category Subcategory P/N Additional info
Paving US Highway pavers D717952339
Conveyor drive kit
Category Subcategory P/N Additional info
Paving US Highway pavers 4812269058
Conveyor guide kit
Category Subcategory P/N Additional info
Paving US Highway pavers D717952346, 4812269060
Conveyor sprocket kit
Category Subcategory P/N Additional info
Paving US Highway pavers D717952360, 4812269062
Emergency hose kit
Category Subcategory P/N Additional info
Paving US Highway pavers D717951989
Inboard bearing kit
Category Subcategory P/N Additional info
Paving US Highway pavers D299010014
Rear plate kit
Category Subcategory P/N Additional info
Paving US Highway pavers D717954691, 4812269086 Wheel
Paving US Highway pavers D717954698, 4812269087 Track
Service kit
Category Subcategory P/N Additional info
Paving US Highway pavers 4812269057 Kit, hopper front
Paving US Highway pavers 4812244099 Kit, hopper skirt-low version
Paving US Highway pavers 4812200217 Auger Lubrication
Paving US Highway pavers D717955090 (Up-time kit)
Paving US Highway pavers 4812222082 Key replacement kit
Service kit , 100H
Category Subcategory P/N Additional info
Paving US Highway pavers 4812269054, 4812269131 Tracked Paver, Tier 4
Service kit , 500H
Category Subcategory P/N Additional info
Paving US Highway pavers 4812269055 Tracked Paver, Tier 4
Service kit , 750H
Category Subcategory P/N Additional info
Paving US Highway pavers 4812269056, 4812269132 Tracked Paver, Tier 4
Wear plate kit
Category Subcategory P/N Additional info
Paving US Highway pavers D717952353, 4812269061

Spare parts manuals

Eager to see the spare parts of Dynapac F1000T (T4)?

Please Log in or Register to MyDynapac to get access.

Compaction data

LEVEL II

Please or Register to MyDynapac to get access.

Schematics

Eager to see the schematics of Dynapac F1000T (T4)?

Please Log in or Register to MyDynapac to get access.
