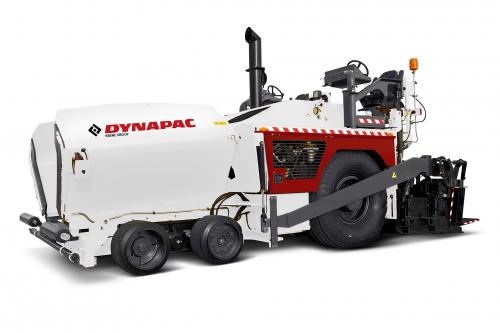

Dynapac F1000W (T4)

Dynapac F1000W (T4) US Highway pavers

  • Pictures

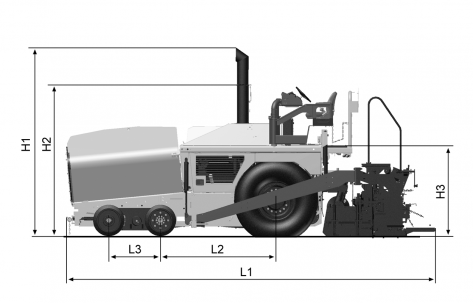

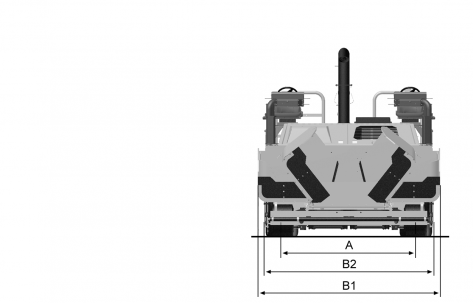

  • Dimensions
A. Axle track
A. Wheelbase 2413 mm
B1. Width, max. 3277 mm
B2. Width, standard 3050 mm
B3. Width, center of tracks
H1. Height, max. 3353 mm
H2. Height, with folded exhaust 2693 mm
H3. Height 1600 mm
L1. Length 6655 mm
L2. Length, wheelbase 2032 mm
L3. Length, wheel module 940 mm
Discontinued false
Basic paving width: 3.05 m
Max. paving width: 7.93 m
Max. layer thickn.: 305 mm
Theor placement cap.: 1600 t/h

Technical data

Masses
Weight 15150 kg
Tractor weight with rear ext screed g
Tractor weight with front ext screed g
Tractor weight including Mat Master screed
Traction
Paving speed 0-39 m/min
Maximum paving speed 87 m/min
Transport speed 19.0 km/h
Engine
Manufacturer/Model Cummins QSB 6.7-220
Type 6 cylinder water cooled diesel
engine with hydraulically driven fan
Emissions according to Tier 4i
Electrical system 24 V
Fuel tank capacity 370 l
Rated power, SAE J1995 162 kW (220 hp) @ 2000 rpm
Generator (tractor mounted) 34 kW, 60 Hz, Drive: Hydraulic
Alternative Engine
Manufacturer/Model
Rated power, SAE J1995
Operation
Operator console Dual Swing out
Dashboard Ergonomic dashboard with Multifunction display on each console
Conveyor
Conveyor type Dual bar feeder
Conveyor width 2 x 685 mm
Conveyor control Two independent conveyor half's with
infinitely variable speed. Both half's can
be controlled separately. Conveyor control
independent of Augers by Ultrasonic sensors.

Service Kits

Auger reinforcement kit
Category Subcategory P/N Additional info
Paving US Highway pavers 4812200217 Auger lubrication
Paving US Highway pavers 4812269105
Auger wear part kit
Category Subcategory P/N Additional info
Paving US Highway pavers 4700679743 Auger Kit Complete
Paving US Highway pavers 4812224489 Kit, 11", auger extension
Paving US Highway pavers 4812224490 Kit, 17", auger extension
Paving US Highway pavers 4812224491, 4812224488 Kit, 34", auger extension
Paving US Highway pavers 4812224490 Auger Extensions
Paving US Highway pavers D722182100 (4812224490) Extension, left
Paving US Highway pavers D722182200 (4812224490) Extension, right
Paving US Highway pavers 4812224488 Auger Extensions
Paving US Highway pavers D722182300 (4812224488) Extension, left
Paving US Highway pavers D722182400 (4812224488) Extension, right
Conveyor bearing kit
Category Subcategory P/N Additional info
Paving US Highway pavers D717954677
Paving US Highway pavers 4812269064, D717954684
Conveyor chain kit
Category Subcategory P/N Additional info
Paving US Highway pavers D717952339, 4812269059
Conveyor guide kit
Category Subcategory P/N Additional info
Paving US Highway pavers D717952346, 4812269060
Conveyor sprocket kit
Category Subcategory P/N Additional info
Paving US Highway pavers 4812269062, D717952360
Conveyor wear part kit
Category Subcategory P/N Additional info
Paving US Highway pavers 4812269058 Kit, chain, conveyor drive
Emergency hose kit
Category Subcategory P/N Additional info
Paving US Highway pavers D717951989
Inboard bearing kit
Category Subcategory P/N Additional info
Paving US Highway pavers D299010014
Screed connect kit
Category Subcategory P/N Additional info
Paving US Highway pavers 4812224504 Disconnect
Service kit
Category Subcategory P/N Additional info
Paving US Highway pavers 4812269054, 4812269131 Start up Kit 100h
Paving US Highway pavers 4812269057 Kit, hopper front
Paving US Highway pavers 4812244099 Kit, hopper skirt-low version
Paving US Highway pavers D717955090 Uptime kit
Paving US Highway pavers 4812222082 Key replacement kit
Service kit , 1000H
Category Subcategory P/N Additional info
Paving US Highway pavers 4812269056, 4812269132
Service kit , 500H
Category Subcategory P/N Additional info
Paving US Highway pavers 4812269055
Wear plate kit
Category Subcategory P/N Additional info
Paving US Highway pavers 4812269061, D717952353
Paving US Highway pavers 4812269086, D717954691 Wheel
Working lights kit
Category Subcategory P/N Additional info
Paving US Highway pavers 4812269087, D717954691 Track

Compaction data

LEVEL II
