Paving

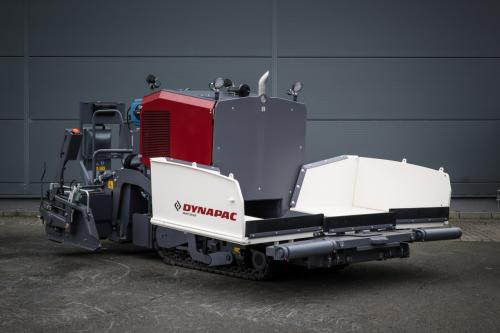

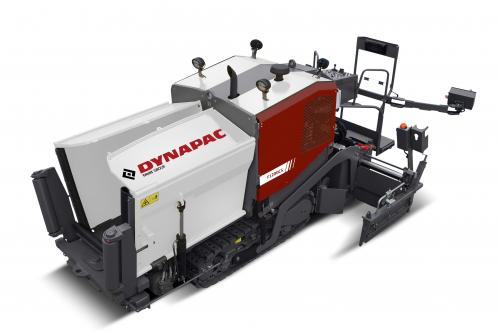

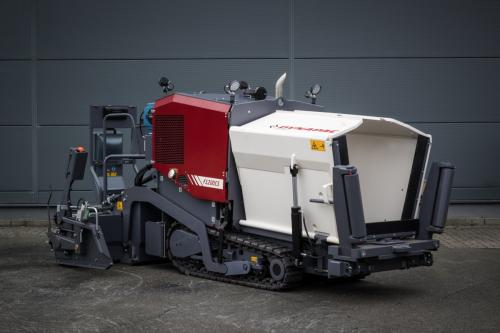

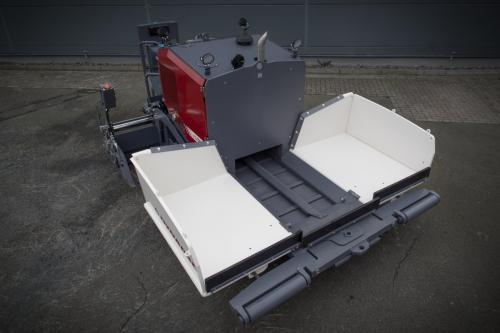

Dynapac F1200CS Compact pavers

  • Pictures
  • Dimensions
A. Axle track 1390 mm
B1. Width, max. 2830 mm
B2. Width, standard 1200 mm
B3. Width, center of tracks 940 mm
C1. Track width 205 mm
H1. Height, max.
H2. Height, transport 1900 mm
H3. Height 490 mm
L1. Length, total 4360 mm
L2. Length, transport 3880 mm
L3. Length, hopper 1310 mm

Product information

These small but powerful pavers are especially designed for reinstatement and construction works which require are low working widths. Particularly job sites like cycle-tracks, side walks, pavement-extensions, car-parks and sport-fields are ideally suited for Dynapac minipavers.

Features & benefits

Dynapac Dyn@Link
Dyn@Link

A tool to monitor and control their machine fleet efficiently and conveniently.


Dynapac Stage IV / TIER 4f
Stage IV / TIER 4f

Any Road Construction Equipment product equipped with a Stage IV engine, is not only compliant with the latest emission stage but is also contributing to great fuel cost savings.

Technical data

Masses
Mass (incl. standard screed) 5.8 t
Traction
Paving speed up to 27 m/min
Transport speed 3.3 km/h
Alternative Engine
Manufacturer/Model Deutz TD2.9 L4
Emissions according to Tier 3/Tier 4
Rated power 54 kW (72 hp) @ 2200 rpm
Electrical system 2 x 12V, 72 Ah
Fuel tank capacity 85 l
Operation
Operator console Slidable left/right
Platform Extendable platform
Conveyor
Conveyor type Splitted conveyor drive with center cover
Conveyor width 650 mm
Conveyor control Automatic with limit switches

Fluids

Drum oil
Type of fluid Volume Additional info
Dynapac Gear oil 200 6,5 l P/N
5 l can: 4812008274
20 l can: 4812008275
209 l drum: 4812008276
Engine
Type of fluid Volume Additional info
Dynapac engine Oil 200 11,2 l P/N
5 l can: 1630047100
20 l can: 1630047200
209 l drum: 1630047200
Hydraulic oil tank
Type of fluid Volume Additional info
Dynapac hydraulic 300 32 l P/N
20 l can 9106230330
209 l drum 9106230331
Hydraulic system
Type of fluid Volume Additional info
Dynapac hydraulic 300 42 l P/N
20 l can: 9106230330
209 l drum: 9106230331
Rear axle - differential
Type of fluid Volume Additional info
Dynapac Gear oil 200 4,5 l P/N
5 l can: 4812008274
20 l can: 4812008275
209 l drum: 4812008276
Rear axle - pinion housing
Type of fluid Volume Additional info
Dynapac Gear oil 200 0,3 l P/N
5 l can: 4812008274
20 l can: 4812008275
209 l drum: 4812008276
Rear axle - planetary gear
Type of fluid Volume Additional info
Dynapac Gear oil 200 0,9 l/side P/N
5 l can: 4812008274
20 l can: 4812008275
209 l drum: 4812008276

Service Kits

Bolt-on pad shell kit
Category Subcategory P/N Additional info
Compaction Single drum vibratory rollers 4812118047
Drum rotation kit
Category Subcategory P/N Additional info
Compaction Single drum vibratory rollers 4700950154
Eccentric shaft kit
Category Subcategory P/N Additional info
Compaction Single drum vibratory rollers 4700950153
Service kit
Category Subcategory P/N Additional info
Compaction Single drum vibratory rollers 4812159569 Start up kit
Service kit , 1000H
Category Subcategory P/N Additional info
Compaction Single drum vibratory rollers 4812159486 Not including oil
Compaction Single drum vibratory rollers 4812159487 Including oil
Service kit , 2000H
Category Subcategory P/N Additional info
Compaction Single drum vibratory rollers 4812159486 Not including oil
Compaction Single drum vibratory rollers 4812159490 Including oil
Service kit , 500H
Category Subcategory P/N Additional info
Compaction Single drum vibratory rollers 4812159484 Not including oil
Compaction Single drum vibratory rollers 4812159485 Including oil
Service kit , 50H
Category Subcategory P/N Additional info
Compaction Single drum vibratory rollers 4812159573 Not including oil
Compaction Single drum vibratory rollers 4812159483 Including oil
Shock absorber kit
Category Subcategory P/N Additional info
Compaction Single drum vibratory rollers 4812156185
Steering hitch kit
Category Subcategory P/N Additional info
Compaction Single drum vibratory rollers 4700950156

Spare parts manuals

Equipment (Standard and options)

Standard

2 front & 2 rear lights, Conventional electrics, Conveyor reversible (splitted), Dashboard with toggel switches, Eco Mode, Extendable steps operator platform, Hopper hydraulic separate control, Mechanical auger height adjustm., Mechanical conveyor limit switches, Ultrasonic sensors auger

Optional

Back-up alarm, Cut off shoes (250mm or 350mm), Emulsion spray equipment (Gloria), Emulsion spray equipment, pump, hose dispensor, Fire extinguisher, First aid kit, Foldable material guide plates, LED lights, Light for auger compartment, Material laying kit (left or right), Panolin bio hydraulic oil, Remote steering device, Rotating flashing beacon, Side shield easy adjust, Special painting, Working widths
