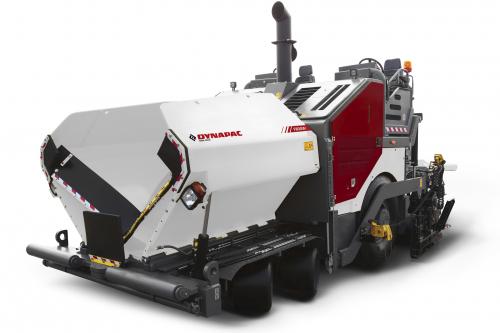

Dynapac F800W Wheeled pavers

  • Pictures
  • Dimensions
A. Axle track
H4. Dumping height
K. Ground clearance
L2. Length, hopper
Discontinued true
Introducing Dynapac F800W 8 ft Wheel paver, a perfect addition to the existing highway class paver line. Dynapac F800W combines innovative features and decades of experience, making it as one of the best 8ft (2,44m) highway class pavers available in the US market.
Basic paving width: N/A
Max. paving width: 5.79 m
Max. layer thickn.: N/A
Theor placement cap.: 907 t/h

Technical data

Masses
Mass (incl. standard screed) 17.30 t
Weight 14.50 t
Traction
Paving speed 0-35 m/min
Maximum paving speed 78 m/min
Transport speed 17.5 km/h
Turning radius 1.5 m
Engine / Drive
Manufacturer/Model Cummins QSB 6.7-173
Rated power 129 kW (173 hp ) @ 2300 rpm
Rated power (Eco mode) 134 kW (180 hp ) @ 1,800 rpm
Emissions according to STAGE IV / TIER 4f
Electrical system 24V / 70A
Generator (tractor mounted) 34 kW
Fuel tank capacity 300 l
Alternative Engine
Manufacturer/Model
Operation
Operator console Dual Swing out
Dashboard Ergonomic with Multifunction display /console
Simplified smart switches, Cup holder
Conveyor
Conveyor type Dual bar feeder
Conveyor width mm
Conveyor width 2 x 506 mm
Conveyor control Two independent conveyor half's with
infinitely variable speed. Both half's can
be controlled separately. Conveyor control
independent of Augers by Ultrasonic sensors.
