Paving

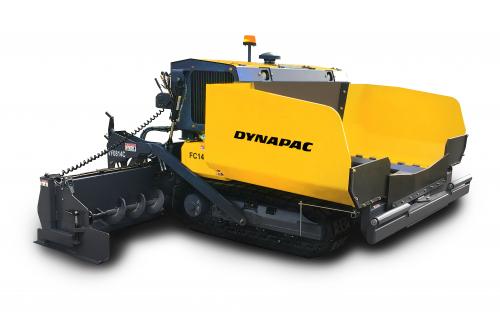

Dynapac FC1400C Tracked pavers

  • Pictures
  • Dimensions
A. Axle track 1397 mm
B1. Width, max. 3175 mm
B2. Width, standard 2590 mm
B3. Width, center of tracks 2030 mm
C1. Track width 305 mm
H2. Height, transport 1630 mm
H4. Dumping height 535 mm
L1. Length, total 3450 mm
L2. Length, transport 3450 mm
L3. Length, hopper 1520 mm

Product information

Technical data

Masses
Mass (tractor) 4.2 t
Mass (incl. standard screed) 5.7 t
Traction
Paving speed 2,5 km/h
Transport speed 5 km/h
Engine
Manufacturer/Model Kubota V3600
Emissions according to EPA T4i/EU3B
Rated power, SAE J1995 50 kW (67 hp ) @ 2600 rpm
Electrical system 12V
Fuel tank capacity 50 l
Engine alternator capacity 90 Amps
Heating generator capacity N/A
Conveyor
Conveyor type Dual slat conveyor
Conveyor width 610 mm
Conveyor control On/Off

Equipment (Standard and options)

Standard

LED Work Lights, Backup Alarm & Rotating Beacon, Reversibe auger and conveyor, Rebuildable wear resistance conveyor floor plates, Segmented High Wear Augers, FleetLink Telematics, Ultrasonic sensors auger, Wash down spray system, Dual operator console with conventional electrics

Optional

Levelling System, Averaging Ski beam, Cut-Off plates, Truck Hitch, Umbrella
