Paving

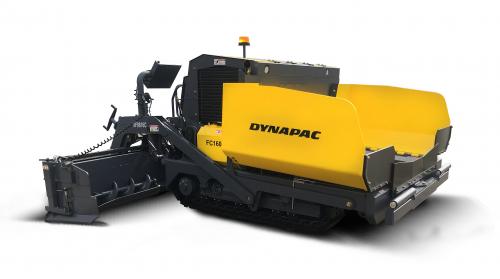

Dynapac FC1600C Tracked pavers

  • Pictures
  • Dimensions
A. Axle track 1830 mm
B1. Width, max. 3175 mm
B2. Width, standard 2590 mm
B3. Width, center of tracks 2060 mm
C1. Track width 305 mm
H2. Height, transport 1800 mm
H3. Height
H4. Dumping height 535 mm
L1. Length, total 4190 mm
L2. Length, transport 4190 mm
L3. Length, hopper 1650 mm

Product information

Technical data

Masses
Mass (tractor) 6.4 t
Mass (incl. standard screed) 8.4 t
Traction
Paving speed 2,5 km/h
Transport speed 5 km/h
Engine
Manufacturer/Model Cummins QSB 3.3
Emissions according to EPA T3/EU3A
Rated power, SAE J1995 74 kW (99 hp ) @ 1400 rpm
Electrical system 12V
Fuel tank capacity 83 l
Engine alternator capacity 120 Amps
Heating generator capacity 16 kW, 240V 1 phase
Conveyor
Conveyor type Dual slat conveyor
Conveyor width 610 mm
Conveyor control On/Off

Service Kits

Gas hose kit
Category Subcategory P/N Additional info
Paving Screeds 4812046596 For 1000mm Extension. From 2015 ->
Heating element kit
Category Subcategory P/N Additional info
Paving Screeds 4812046588 Main screed. From 2015 ->
Paving Screeds 4812046590 For 250mm Extension. From 2015 ->
Paving Screeds 4812046592 For 500mm Extension. From 2015 ->
Paving Screeds 4812046594 For 750mm Extension. From 2015 ->
Paving Screeds 4812046599 For hydr.extension. From 2015 ->
Screed wear part kit
Category Subcategory P/N Additional info
Paving Screeds 4729900173 Hardox 400, basic screed
Paving Screeds D29900414 Hardox 400, basic screed
Paving Screeds D29900437 Basic screed with electric ignition, PT100
Paving Screeds 4729900172 With 250mm extension box
Paving Screeds 4729900171 With 500mm extension box
Paving Screeds D299000326 With 750mm extension box
Paving Screeds 4729900170 Without ignition, 1000mm extension box
Paving Screeds 4729900174 With electric ignition, 1000mm extension box
Paving Screeds D299000436 With electric ignition version PT100, 1000mm extension box
Paving Screeds 4812046587 From year 2015 ->
Paving Screeds 4812046595 For 1000mm extension. From year 2015 ->
Paving Screeds 4812046593 For 750mm extension. From year 2015 ->
Paving Screeds 4812046591 For 500mm extension. From year 2015 ->
Paving Screeds 4812046589 For 250mm extension. From year 2015 ->
Paving Screeds 4812046597 For hydr. Extension l.h. From 2015 ->
Paving Screeds 4812046598 For hydr. extension r.h. From 2015 ->

Equipment (Standard and options)

Standard

LED Work Lights, Backup Alarm & Rotating Beacon, Reversibe auger and conveyor, Rebuildable wear resistance conveyor floor plates, Segmented High Wear Augers, Hydraulic Tow Point, Screed Power Crown, Screed Power Match height, FleetLink Telematics, Ultrasonic sensors auger, Wash down spray system, Dual operator console with conventional electrics, Vandal package

Optional

Screed Ext. Power slope control, Road Crew Kit, 3 Man operation, Levelling System, Averaging Ski beam, Cut-Off plates, Screed Extension, Heated end gate, Truck Hitch, Umbrella
