Paving

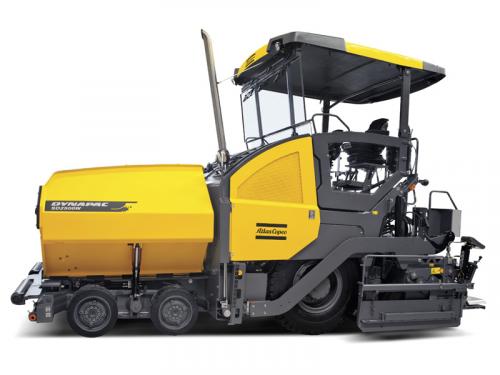

Dynapac SD2500W Large pavers

  • Experience
  • Pictures
  • Dimensions
Working width, minimum (with reducing shoe) 2.05 m
Front ramp angle 17°
A. Axle track
A. Wheelbase 2.24 m
B1. Width, max. 3.25 m
B2. Width, standard 2.55 m
B3. Width, wheel track 2.05 m
C1. Track width
H1. Height, max. 3.90 m
H2. Height, transport 3.10 m
H3. Height 0.49 m
L1. Length 6.10 m
L3. Length, hopper 2.12 m
Dynapac wheeled pavers offers fast transport speeds, enormous traction as well as an outstanding paving performance. The result: superior performance to get you into pole position.
Basic paving width: 2.55 m
Max. paving width: 7.50 m
Max. layer thickn.: 300 mm
Theor placement cap.: 700 t/h
Manufacturer / Model: Cummins QSB6.7-C173

Features & benefits

Dynapac Dyn@Link
Dyn@Link

A tool to monitor and control their machine fleet efficiently and conveniently.


Dynapac Eco mode
Eco mode

Big fuel savings with ECO!


Dynapac Stage V / TIER 4f
Stage V / TIER 4f

Any Dynapac product equipped with a Stage IV engine, is not only compliant with the latest emission stage but is also contributing to great fuel cost savings.


Dynapac Vario speed
Vario speed

Vario speed details here

Technical data

Masses
Weight (incl. standard screed) 18 t
Traction
Maximum paving speed 30 m/min
Transport speed 20.0 km/h
Engine
Manufacturer/Model Cummins QSB6.7-C173
Emissions according to Stage IIIA / EU Stage V / US EPA T4F
Rated power, SAE J1995 129 kW @ 2200 rpm
Electrical system 24 V
Fuel tank capacity 315 l
DEF tank capacity 37 l
Conveyor
Conveyor type Dual bar feeder
Conveyor control The independent conveyor with proportional control
Conveyor width 2x 580 mm

Operations & maintenance manuals

Service Kits

Auger wear part kit
Category Subcategory P/N Additional info
Paving Large pavers 4812027478 Center drive 380 mm
Paving Large pavers 4812040657 Outer drive 380 mm
Conveyor chain kit
Category Subcategory P/N Additional info
Paving Large pavers 4812029821 Single quantity of bars
Paving Large pavers 4812029822 Double quantity of bars
Conveyor drive kit
Category Subcategory P/N Additional info
Paving Large pavers 4812035552
Conveyor guide plate kit
Category Subcategory P/N Additional info
Paving Large pavers 4812225799
Conveyor plate kit
Category Subcategory P/N Additional info
Paving Large pavers 4812016662
Hopper rubber kit, standard, hydr. front flap
Category Subcategory P/N Additional info
Paving Large pavers 4812018438
Hopper rubber kit; standard
Category Subcategory P/N Additional info
Paving Large pavers 4812018441
Reversing roller kit
Category Subcategory P/N Additional info
Paving Large pavers 4812035553
Service kit , 1000H
Category Subcategory P/N Additional info
Paving Large pavers 4812046969 Tier 3
Paving Large pavers 4812012384 Tier 4i
Service kit , 500H
Category Subcategory P/N Additional info
Paving Large pavers 4700691229 Tier 3
Paving Large pavers 4812043983 Tier 3 Including oil
Paving Large pavers 4812012378 Tier 4i
Paving Large pavers 4812012382 Tier 4i Including oil
Paving Large pavers 4812012939 Tier 4F
Service kit , 750H
Category Subcategory P/N Additional info
Paving Large pavers 4812012936 Tier 4F

Spare parts manuals

Compaction data
