Dynapac

Paving

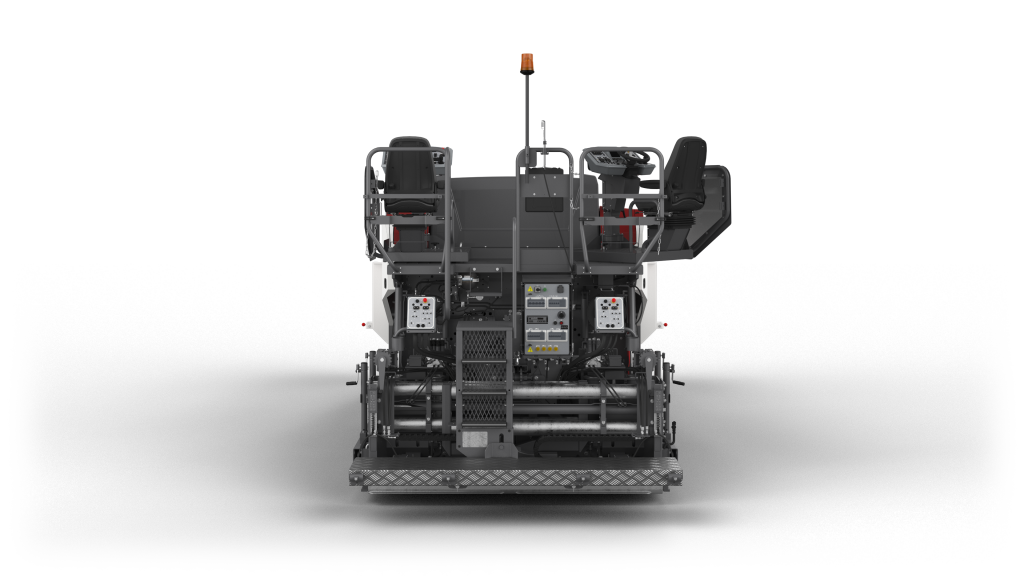

Dynapac D25W US Highway pavers

Experience
Pictures
Dimensions

Blueprint side view Dynapac D25W

Blueprint top view Dynapac D25W

A. Wheelbase	82.5 in
B1. Width, max.	138.6 in
B2. Width, standard	108.5 in
B3. Width, wheel track	96.3 in
H1. Height, max.	137.9 in
H2. Height, transport	120 in
H3. Height	20.5 in
L1. Length	254 in
L3. Length, hopper	70.6 in
W1.Width,front wheels	12 in
W2.Width,rear wheels	18 in

Basic paving width: 8 ft

Max. paving width: 20

Max. layer thickn.: 12 in

Theor placement cap.: N/A

Technical data

Masses
Tractor weight	29,400 lbs
Tractor weight including Mat Master screed	35,750 lbs
Engine
Manufacturer/Model	Cummins QSB 4.5
Rated power	173 hp @ 2200 Rpm
Emissions according to	Tier 4f
Electrical system	12 V / 130 Amp
Fuel tank capacity	60 gal
Operation
Control consoles	Dual swing out operator consoles
Dashboard	2 fully functional tractor consoles with display
Conveyor
Conveyor type	Dual bar feeder
Conveyor width	2 x 21.75 in
Conveyor control	2 independent conveyors with proportional speed control
Reversible	Yes

Sales arguments

Lower TCO with rugged design and extended wear parts life
Award winning Mat Master screed for high quality results
Simplified smart paving with Dynapac PaveManager
Dynamic Suspension control (DSC) for excellent traction
Innovative solutions for non-stop paving (Safe Impact, Fail Safe heating)
Designed and built in USA for North American Market
