Paving

F121-4W/D Wheeled pavers

0
My comparison
  • Pictures

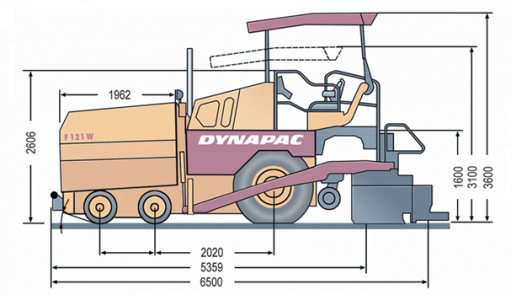

  • Dimensions
Basic width 2.55 mm
Working width, hydraulic extendable 5,100 mm
Working width, infinitely adjustable 7,300 mm
Working width, max. 7,300 m
Working width, maximum (incl. extension boxes) 6.60 mm
Working width, minimum (with reducing shoe) 2 mm
Discontinued true
With the highly manoeuverable F121W/D of the wheeled paver range Dynapac has released a new direct drive system on the 2,55m basic width range. The machine is equipped with a two speed planetary gearbox for choice of working speed and travelling speed (19,5km/h / 11,8 mph). Available with a six wheel drive and standard anti slip system and diffential lock this machine can cope with working widths of max. 7,30m.
Basic paving width: 2.55 mm
Max. paving width: 7,300 m
Max. layer thickn.: 300 mm
Theor placement cap.: 600 t/h

Technical data

Engine
Electrical system 24V
Emissions according to EU/3A
Manufacturer Deutz
Model TCD2013L06V
Rated power 120 kW
Rated power 163.0 hp
Rated power @ 1,800 rpm
Operation
Operator console Shiftable left/right
Operator seat Adjustable, comfortable, hydraulically sprung seat
Conveyor
Conveyor control Proportional speed control, both sides driven independently
Conveyor type Dual bar feeder
Conveyor width 600 mm
