Paving

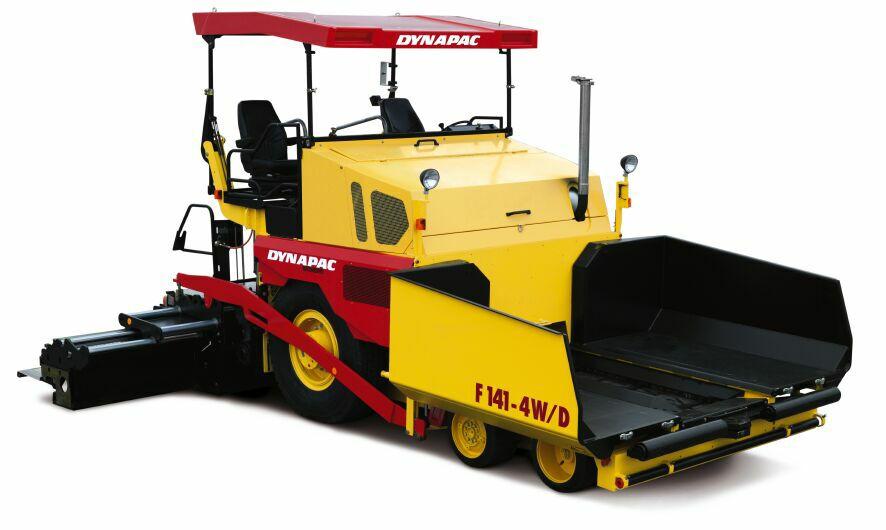

F141-4W/D Wheeled pavers

Basic width 2.55 mm
Working width, hydraulic extendable mm
Working width, infinitely adjustable 5.10 mm
Working width, max. 1 m
Working width, maximum (incl. extension boxes) 7.30 mm
Working width, minimum (with reducing shoe) 2 mm
Discontinued true
Together with the introduction of Dynapac´s new F121W/D with direct drive and two shift planetary gearbox a new member of this wheeled paver range – the F141W/D - has been released recently. The hydraulically direct driven paver is equipped with a 6-cylinder Deutz engine and is being offered together with the new Dynapac screed VB510TV to be able to manage working width of maximum 8,10m. By selection of this new engine type the F141W/D complies with the latest exhaust emission regulations EU 3A as well as Tier 3.
Basic paving width: 2.55 mm
Max. paving width: 1 m
Max. layer thickn.: 300 mm
Theor placement cap.: 750 t/h
