Paving

F161-6W Wheeled pavers

0
My comparison
  • Pictures

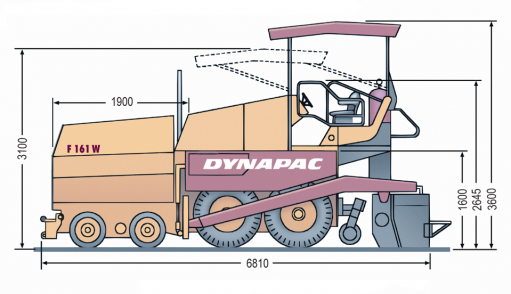

  • Dimensions
Basic width 2.50 mm
Working width, hydraulic extendable 5,100 mm
Working width, infinitely adjustable 5.10 mm
Working width, max. 8,800 m
Working width, maximum (incl. extension boxes) 8.10 mm
Working width, minimum (with reducing shoe) 2 mm
Discontinued true
The F161-6W convinces by its high traction force created by the optional 6-wheel drive together with the standard differential lock and the anti slip system for the hydraulically driven front wheels. With a maximum working width of 8,1 m and a hopper size of 5,7 m³ combined with a transport speed of 16,5 km/h the F161-6W is the flexible solution for laying country roads or highways.
Basic paving width: 2.50 mm
Max. paving width: 8,800 m
Max. layer thickn.: 300 mm
Theor placement cap.: 650 t/h

Technical data

Engine
Electrical system 24V
Emissions according to EU 3A / Tier 3
Manufacturer Cummins
Model QSB6.7-C205
Rated power 153 kW
Rated power 205.0 hp
Rated power @ 1,800 rpm
Operation
Operator console Shiftable left / right
Operator seat Adjustable, turnable, fluid-cushioned comfort seat
Conveyor
Conveyor control Proportional speed control, both sides driven independently
Conveyor type Dual bar feeder
Conveyor width 600 mm
