F161W

F161W Wheeled pavers

Pictures

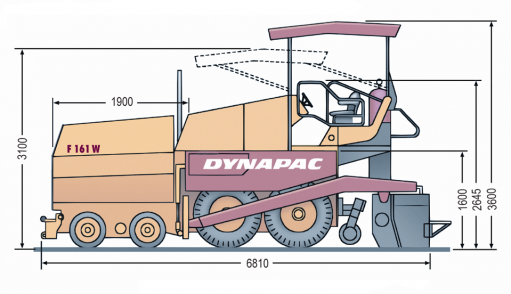

Dimensions

Basic width	2.50 mm
Working width, hydraulic extendable	5,100 mm
Working width, infinitely adjustable	5.10 mm
Working width, max.	1 m
Working width, maximum (incl. extension boxes)	7.30 mm
Working width, minimum (with reducing shoe)	2 mm

The F161 is the biggest machine type of the Dynapac wheeled paver range. This paver convinces by its high traction force created by the optional 8-wheel drive together with the standard differential lock and the anti slip system for the hydraulically driven front wheels. With a maximum working width of 9,0 m (8-wheel machine)and a hopper size of 5,7 m³ combined with a transport speed of 16,5 km/h the F161W is the flexible solution for laying country roads or highways.

Basic paving width: 2.50 mm

Max. paving width: 1 m

Max. layer thickn.: 300 mm

Theor placement cap.: 650 t/h

Technical data

Engine
Electrical system	24V
Emissions according to	EU 3A / Tier 3
Manufacturer	Cummins
Model	QSB6.7-C205
Rated power	153 kW
Rated power	205.0 hp
Rated power @	1,800 rpm
Operation
Operator console	Shiftable left / right
Operator seat	Adjustable, turnable, fluid-cushioned comfort seat
Conveyor
Conveyor control	Proportional speed control, both sides driven independently
Conveyor type	Dual bar feeder
Conveyor width	600 mm

Service Kits

Gas hose kit

Category	Subcategory	P/N	Additional info
Paving	Screeds	D299000339	Gas version

Heating element kit

Category	Subcategory	P/N	Additional info
Paving	Screeds	D299000865	Electric version, reduced screed

Screed plate kit

Category	Subcategory	P/N	Additional info
Paving	Screeds	D299000256	Hardox 400
Paving	Screeds	D255011500	Hardox 500

Screed wear part kit

Category	Subcategory	P/N	Additional info
Paving	Screeds	D299000257	Hardox 400, Gas version
Paving	Screeds	D299000652	Hardox 400, Electric version
Paving	Screeds	D299000594	Hardox 500, Gas version
Paving	Screeds	D299000640	Hardox 500, Electric version
