Lette komprimeringsprodukter

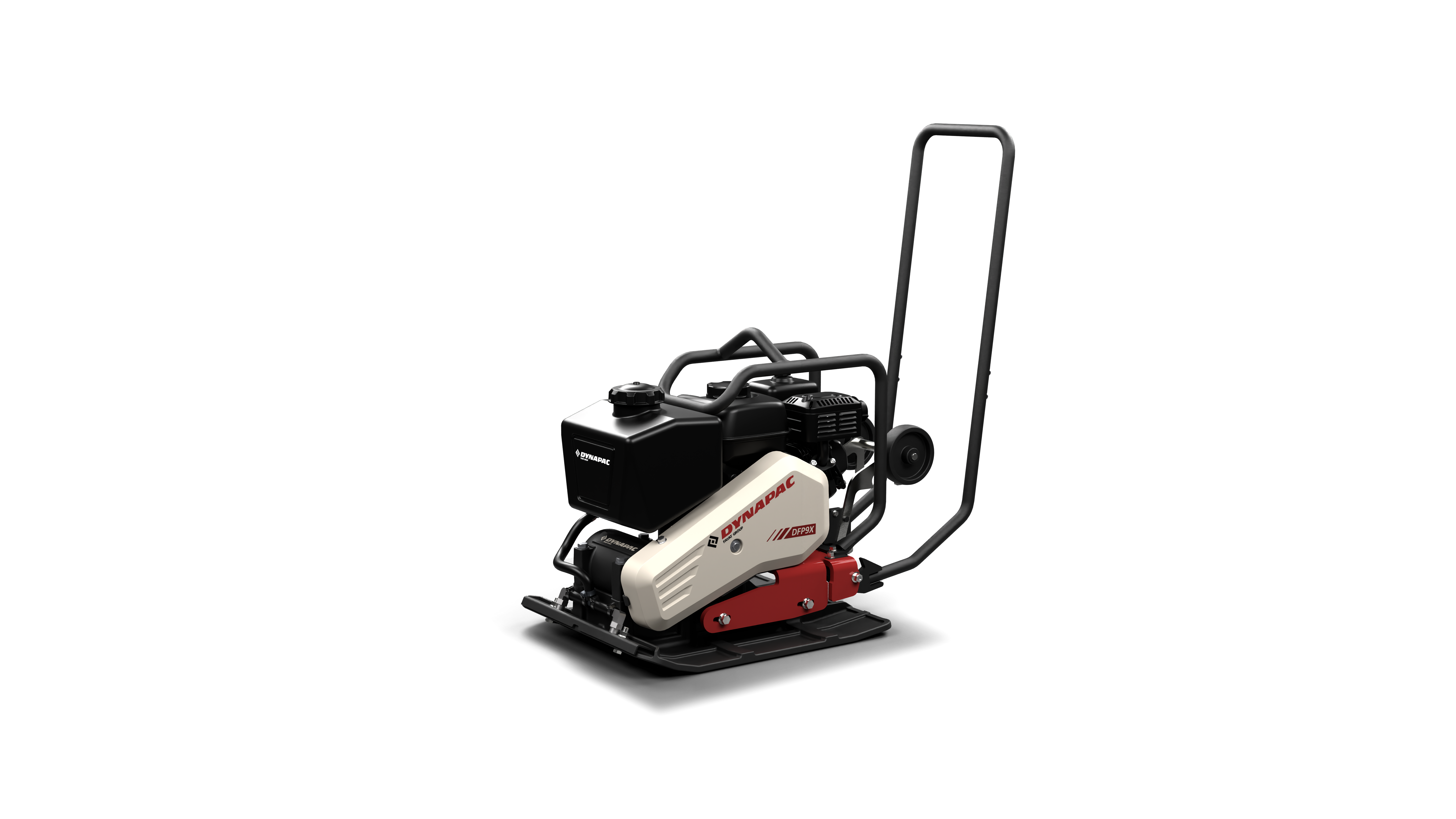

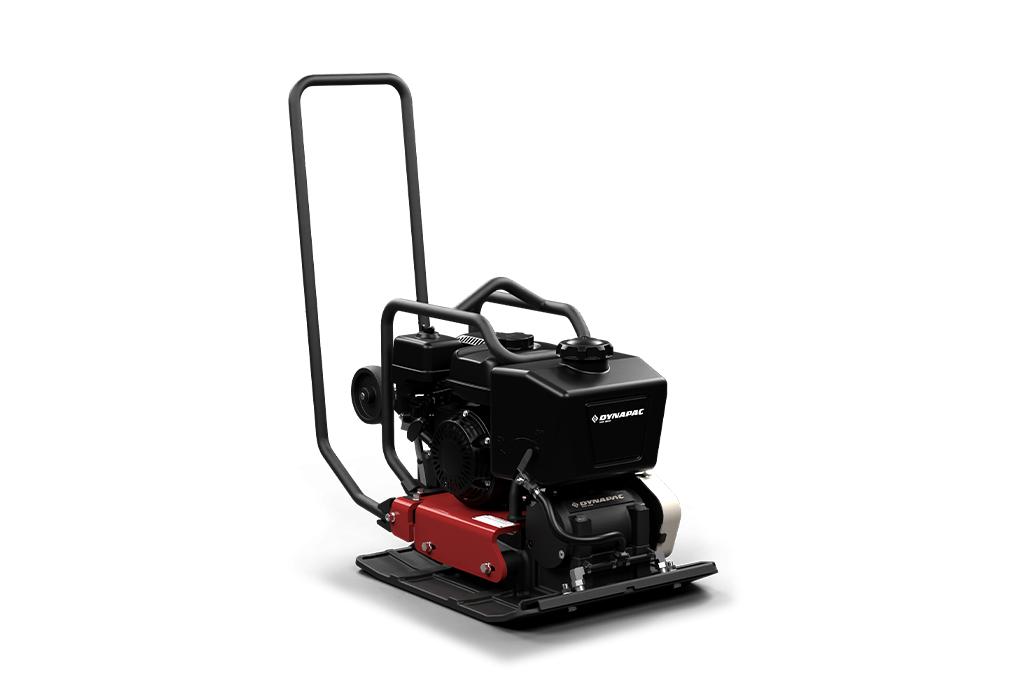

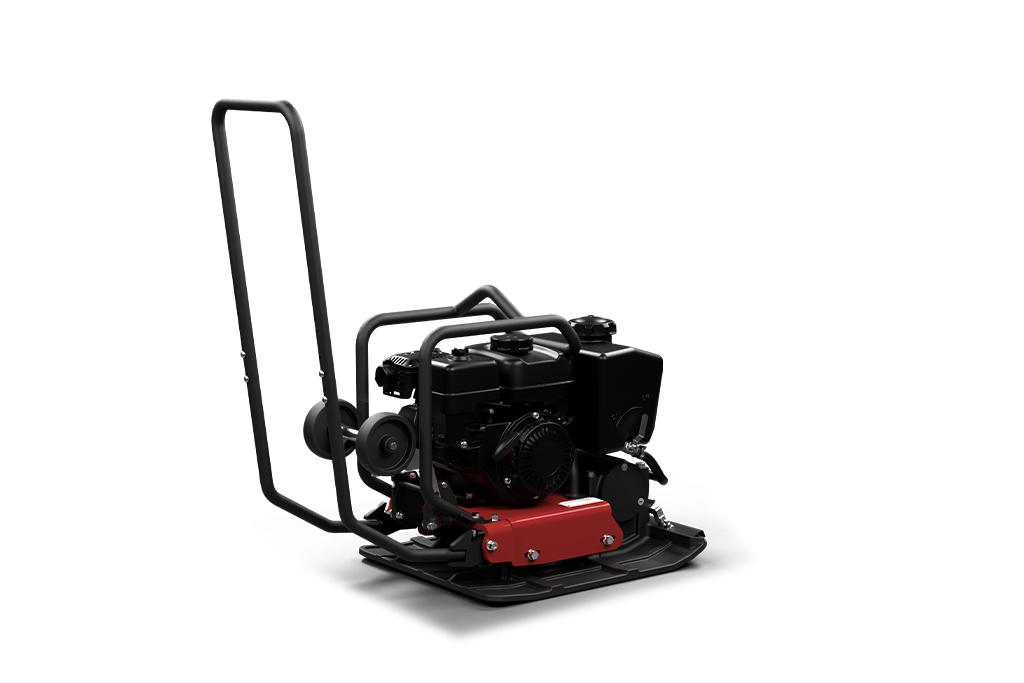

Dynapac DFP9X Vibroplater

  • Bilder
  • Dimensjoner
H. Høyde 630 mm
H1. Height, standard handle 990 mm
H2. Height, standard handle 980 mm
L1. Length, standard handle 970 mm
H1. Height, comfort handle 990 mm
H2. Height, comfort handle 980 mm
L1. Length, comfort handle 1070 mm
L. Lengde 610 mm
W. Grunnplatebredde 500 mm
Discontinued false
Operating weight: 99 kg
Compaction force: 19 kN
Komprimeringsbredde: 500 mm

Tekniske data

Masser
Operating mass 99 kg
Basic mass 93 kg
Trekkkraft
Maks. graderbarhet 33 %
Maks. arbeidshastighet 22 m/min
Motor
Produsent/Modell Honda GX160
Utslipp iht Stage V & US EPA
Type Air cooled, petrol
Number of cylinders 1
Drivstofforbruk /t, gj.sn 1.4 l
Drivstofftank 3.10 l
Makt 3.6 kW @ 3600 rpm

Utstyr (standard og opsjoner)

Standard

■ Foldable steering handle with vibration isolation
■ Highly wear resistant base plate
■ Automatic decompression
■ All around protection for V-belt
■ Protection frame for powerpack
■ Recoil starter
■ Carrying handles
■ One point lift

Valgfritt

■ Water sprinkler system 11l (+2.5kg)
■ Comfort handle
■ Puncture proof transport wheels (+2kg)
■ Block paving mat
■ Service Kit
