Paving

F121W series Wheeled pavers

0
My comparison
  • Pictures

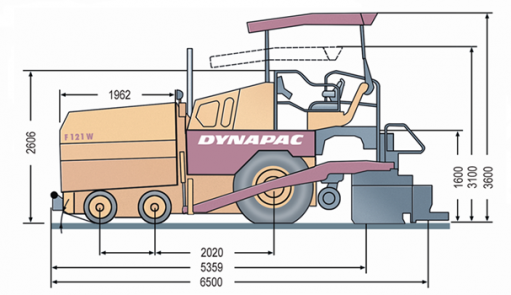

  • Dimensions
Basic width 2.55 mm
Working width, hydraulic extendable 5100 mm
Working width, infinitely adjustable 7300 mm
Working width, max. 7300000 mm
Working width, maximum (incl. extension boxes) 5.80 mm
Working width, minimum (with reducing shoe) 2 mm
Discontinued true
With the highly manoeuverable F121W/D of the wheeled paver range Dynapac has released a new direct drive system on the 2,55m basic width range. The machine is equipped with a two speed planetary gearbox for choice of working speed and travelling speed (19,5km/h / 11,8 mph). Available with a six wheel drive and standard anti slip system and diffential lock this machine can cope with working widths of max. 7,30 m.
Basic paving width: 2.55 mm
Max. paving width: 7300000 mm
Max. layer thickn.: 300 mm
Theor placement cap.: 600 m3/h

Technical data

Engine / Drive
Electrical system 24V
Emissions according to EU3A / Tier 3
Manufacturer Deutz
Model TCD2013L06V
Rated power 163 W
Rated power 120000 W
Rated power @ 1800 W
Operation
Operator console Shiftable left/right
Operator seat Adjustable, comfortable, hydraulically sprung seat
Conveyor
Conveyor control Proportional speed control, both sides driven independently
Conveyor type Dual bar feeder
Conveyor width 600 mm
