CP142H

CP142H Pneumatic tire rollers

Pictures

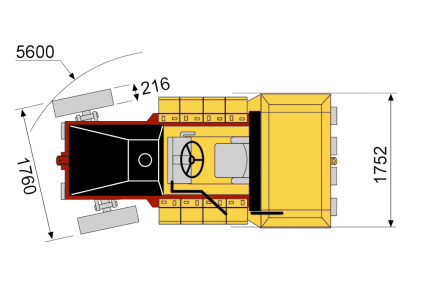

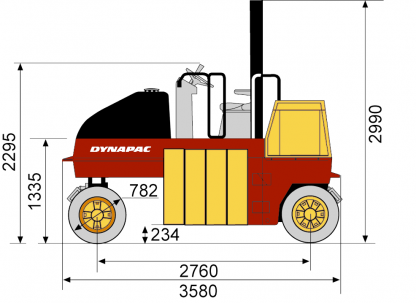

Dimensions

B. Width, with symmetric cab
B1. Width, with assymetric cab
B1. Width, with assymmetric cab
B2. Width, with symmetric cab
H1. Height, w/o ROPS/Cab
H2. Height, with folded canopy
H2. Height, with ROPS/Cab
H3. Height max. with ROPS/Cab
O. Overlap
O1. Overhang, right
O2. Overhang, left

Dynapac ’s pneumatic tyred rollers are especially designed for the compaction of bases, sub-bases and mainly for asphalt mixes on any kind of jobs.The machines have seven or nine wheels: three or five steered oscillating front wheels and four traction rear wheels.The Pneumatic Tyred Rollers play a vital part in a complete range of compactors which has considerable advantages in respect to high performance and application versatility, to simplicity and security of operation and easy maintenance. These are features that doubtless contribute to the greater efficiency and profitability of the equipment with a quick return on the capital invested.

Operating Mass: 6000000 g

Static linear load: N/A

Compaction width: N/A

Technical data

Masses
Operating mass (incl. ROPS)	6000000 g
Operating mass (incl. ROPS) with 2 ballast boxes	8250000 g
Operating mass (incl. ROPS) with 4 ballast boxes	10500000 g
Operating mass (incl. ROPS) with 6 ballast boxes	12750000 g
Operating mass (incl. ROPS) with 8 ballast boxes (option)	15000000 g
Mass with max ballast (Canopy)
Mass with steel ballast (Canopy)
Mass with water ballast	g
Mass with wet sand ballast	g
Max. operating mass
Max. operating mass	g
Operating mass (incl. Cab)
Operating mass (incl. Canopy)	g
Traction
Transmission	Hydrostatic, direct drive motors at rear tyres
Working speed	m/s
Speed low	2.78 m/s
Speed high	5 m/s
Max. theoretical gradeability	30 %
Engine / Drive
Rated power, SAE J1995	74000 W (99 W) @ 2200 W
Type	Water cooled turbo diesel
Fuel tank capacity	0.14 m³
Electrical system	12 V
Alternative Engine
Fuel tank capacity
Hydraulic system
Service brake	Hydrost. braking on drive wheels (rear)
Parking/ Emergency brake	Spring - applied on drive wheels (rear)

Service Kits

Seat belt kit

Category	Subcategory	P/N	Additional info
	Pneumatic tire rollers	4700381534	SMV (SLOW MOVING VEHICLE) SIGN

Service kit , 1000H

Category	Subcategory	P/N	Additional info
	Pneumatic tire rollers	4812317436	CP1200 Tier 4 s/n 10000510x0B004536-
	Pneumatic tire rollers	4812325016	CP1200 Tier 3 s/n 10000500xxBoo4535

Service kit , 500H

Category	Subcategory	P/N	Additional info
	Pneumatic tire rollers	4812317435	CP1200 Tier 4 s/n 10000510x0B004536-
	Pneumatic tire rollers	4812317435	CP1200 Tier 3 s/n 10000500xxBoo4535

Service kit , 50H

Category	Subcategory	P/N	Additional info
	Pneumatic tire rollers	4812317433	CP1200 Tier 4 s/n 10000510x0B004536-
	Pneumatic tire rollers	4812317433	CP1200 Tier 3 s/n 10000500xxBoo4535
