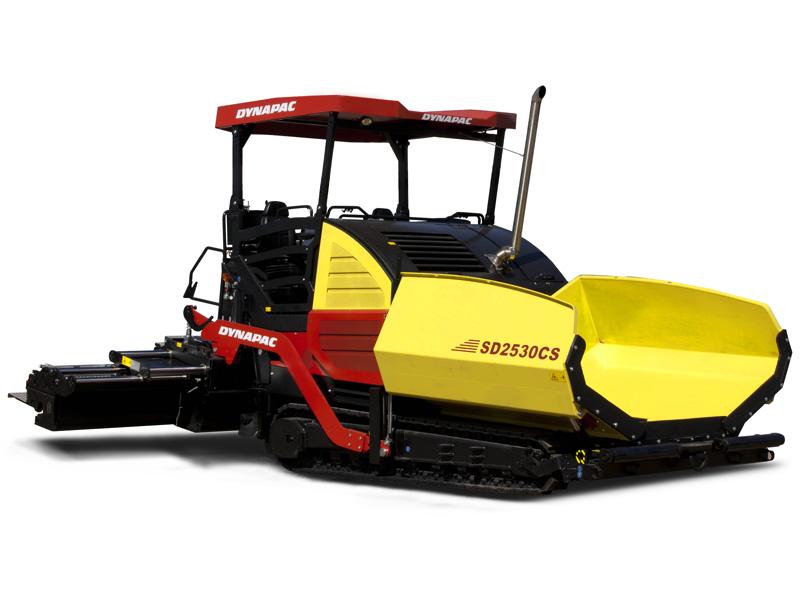

SD2530CS

SD2530CS Tracked pavers

Pictures

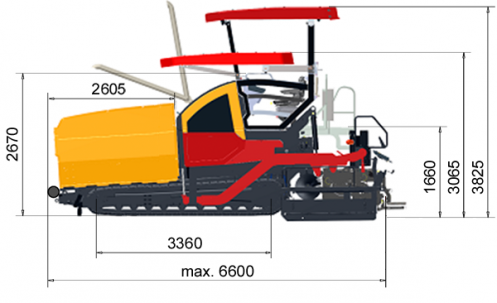

Dimensions

A. Axle track	1995 mm
B2. Width, standard	2550 mm
H3. Height

Get into pole position! Let us introduce a brand new generation of Dynapac pavers. They combine decades of paving experience with the latest technology. The result: superior performance to get you into pole position.

Basic paving width: 2550 mm

Max. paving width: 10000 mm

Max. layer thickn.: 320 mm

Theor placement cap.: 800 m³/h

Technical data

Masses
Weight	19200000 g
Traction
Paving speed	Up to 20 m/min
Transport speed	0.83 m/s
Engine / Drive
Manufacturer / Model	Cummins QSB 6.7-C190
Emissions according to	EU 3A / TIER 3
Rated power, SAE J1995	142000 W (193 W) @ 2200 W with infinitely variable ECO-mode
Electrical system	24 V
Fuel tank capacity	0.35 m³
Operation
Operator console	Slidable left / right
Dashboard	Ergonomic, with 6.5" colour display
Conveyor
Conveyor type	Dual bar feeder
Conveyor width	2 x 655 mm
Conveyor control	Separately controlled, by mechanical limit switches or sensors
Noise emissions
2000/14/EG, L_wA	106 dB(A)

Service Kits

Conveyor chain kit

Category	Subcategory	P/N	Additional info
	Tracked pavers	4812273376

Conveyor drive kit

Category	Subcategory	P/N	Additional info
	Tracked pavers	4812035552

Conveyor guide plate kit

Category	Subcategory	P/N	Additional info
	Tracked pavers	4812028403

Conveyor plate kit

Category	Subcategory	P/N	Additional info
	Tracked pavers	4812028402

Reversing roller kit

Category	Subcategory	P/N	Additional info
	Tracked pavers	4812035553

Paving
