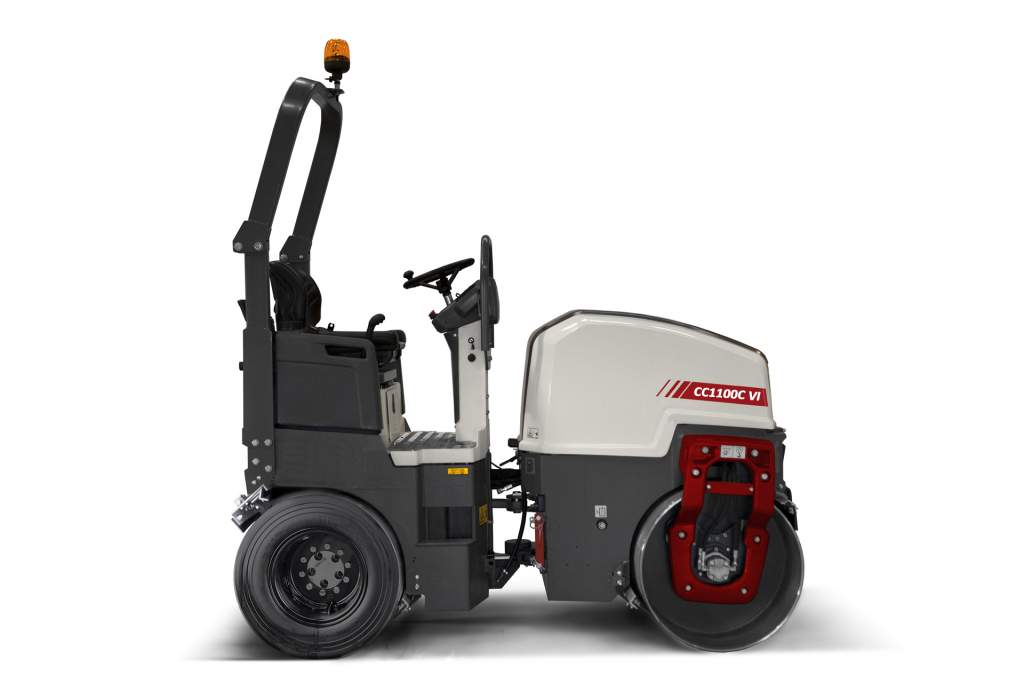

Dynapac CC1100C VI

Dynapac CC1100C VI Combi rollers

  • Pictures
  • Dimensions
A. Wheelbase 1,700 mm
B. Width 1,340 mm
B3. Width, offset 50 mm
C. Curb clearance 554 mm
D. Drum diameter 700 mm
H1. Height, with ROPS 2,542 mm
H2. Height, w/o ROPS/cab 1,744 mm
K. Ground clearance 180 mm
L. Length 2,400 mm
O1. Overhang, right 70 mm
O2. Overhang, left 70 mm
R1. Turning radius, outside 3,710 mm
R2. Turning radius, inside 2,640 mm
S. Drum shell thickness 12 mm
W1. Drum width 1,070 mm
W2. Width, wheel module
W3. Width, tyre
W4. Wheel track
α. Steering angle ±30°
Discontinued false
Operating Mass: 2,215 kg
Static linear load: 10.7 kg/cm
Compaction width: 1,070 mm

Technical data

Masses
Max. operating mass 3,000 kg
Operating mass (incl. ROPS) 2,215 kg
Module mass (front/rear) 1,145 kg/ 1,070 kg
Traction
Speed range 0-10 km/h
Vertical oscillation ±10°
Max. theoretical gradeability 71 %
Compaction
Wheel load 268 kg/wheel
Tyre type (smooth) 640x240-15.6
Centrifugal force 29/25 kN
Nominal amplitude 0.5 mm
Static linear load 10.7 kg/cm
Vibration frequency 66/61 Hz
Water tank 185 l
Emulsion tank 20 l
Engine
Model Kubota D1703-M (IIIA)
Type Water cooled diesel engine
Rated power, SAE J1995 26 kW (35 hp) @ 2800 rpm
Fuel tank capacity 45 l
Alternative Engine
Model Kubota D1703-DI (T4/V)
Manufacturer/Model
Type Water cooled diesel engine
Rated power, SAE J1995 18.5 kW (25 hp ) @ 2,200 rpm
Alternative Engine
Model Kubota D1803-CR (T4/V)
Manufacturer/Model
Type Water cooled diesel engine
Rated power, SAE J1995 28 kW (37.5 hp ) @ 2,700 rpm
Hydraulic system
Driving Axial piston pump with variable displacement. Radial piston motors with constant displacement.
Vibration Gear pump/motors with constant displacement.
Steering Gear pump with constant displacem.
Service brake Hydrostatic in forward and reverse lever.
Parking/Emergency brake Failsafe multidisc brake on drum and wheels.

Compaction data

AsphaltComp infoAsphaltComp info27458ACbaseC24on/off1.51893.799.9on554004off70.82021-06-10 15:57:38Dynapac CC1100C VIACbase_CAsphalt concrete, base course; CrushedAsphalt concrete, base course27458ACbaseN24off1.51894.2100.4on559004off70.82021-06-10 15:57:38Dynapac CC1100C VIACbase_NAsphalt concrete, base course; NaturalAsphalt concrete, base course27458ACbindC24on/off1.51893.799.9on554004off70.82021-06-10 15:57:38Dynapac CC1100C VIACbind_CAsphalt concrete, binder course; CrushedAsphalt concrete, binder course27458ACbindN24off1.51894.2100.4on559004off70.82021-06-10 15:57:38Dynapac CC1100C VIACbind_NAsphalt concrete, binder course; NaturalAsphalt concrete, binder course27458ACsurfC24on/off1.51893.799.9on554004off70.82021-06-10 15:57:38Dynapac CC1100C VIACsurf_CAsphalt concrete, surface course; CrushedAsphalt concrete, surface course27458ACsurfN24off1.51894.2100.4on559004off70.82021-06-10 15:57:38Dynapac CC1100C VIACsurf_NAsphalt concrete, surface course; NaturalAsphalt concrete, surface course27458PAC24on/off1.51894.3102on554004off70.82021-06-10 15:57:38Dynapac CC1100C VIPA_CPorous asphalt; CrushedPorous asphalt27458SMAC24on/off1.51893.799.9on554004off70.82021-06-10 15:57:38Dynapac CC1100C VISMA_CStone mastic asphalt; CrushedStone mastic asphalt204060801001000pdfwebtable
