Dynapac CA35D

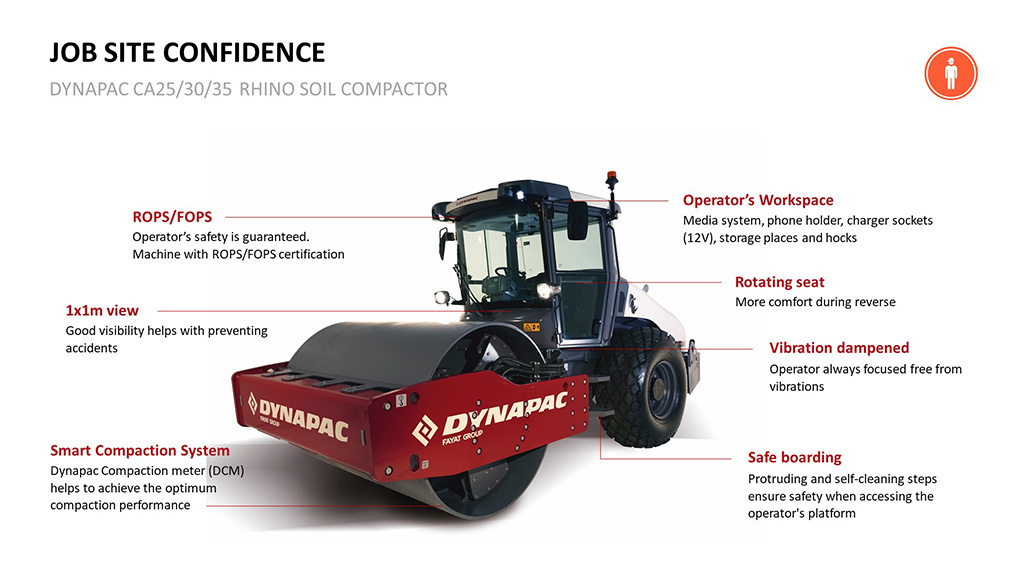

Dynapac CA35D Single drum vibratory rollers

  • Experiência
  • Imagem

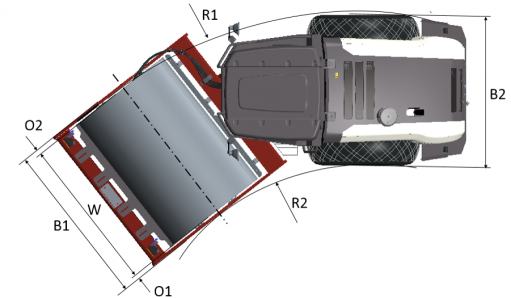

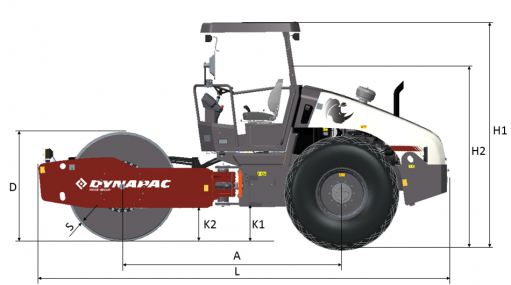

  • Dimensões
A. Wheelbase 2990 mm
B1. Width, front 2276 mm
B2. Width, rear 2130 mm
D. Drum diameter 1510 mm
H1. Height, with ROPS/cab 2890 mm
H2. Height, w/o ROPS/cab 2400 mm
K1. Ground clearance 460 mm
K2. Curb clearance 460 mm
L. Length 5560 mm
O1. Overhang, right 73 mm
O2. Overhang, left 73 mm
R1. Turning radius, outside 5660 mm
R2. Turning radius, inside 3245 mm
S. Drum shell thickness 30 mm
W. Drum width 2130 mm
α. Steering angle ±38°
Discontinued false
Peso operacional: 12200 kg
Carga estática linear: 35 kg/cm
Largura de compactação: 2130 mm

Características e Benefícios


Dynapac Dyn@Link
Dyn@Link

Uma ferramenta para monitorar e controlar sua frota de máquinas de forma eficiente e conveniente.


Dynapac Excêntricos de Eficiência
Excêntricos de Eficiência

Os Excêntricos de Eficiência economizam energia e combustível nos rolos Dynapac!

Características técnicas

Pesos
Operating mass (incl. ROPS) 12200 kg
Operating mass (incl. Cab) 12300 kg
Operating mass (incl. Canopy) 12100 kg
Module mass (front/rear) 7400/4900 kg
Max. operating mass 12400 kg
Tração
Speed range:
Single Speed/Dual Speed/Traction Control
- / 7 / 11 km/h
Max. gradeability:
Single Speed/Dual Speed/Traction Control
- / 40 / 43 %
Vertical oscillation ±9º
Motor
Manufacturer/Model Cummins QSF3.8 (IIIA/T3)
Type Water cooled turbo Diesel
Rated power, SAE J1995 97 kW (130 hp) @ 2500 rpm
Fuel tank capacity 280 l
Electrical system 12 V
Motor Alternativo
Manufacturer/Model Cummins 4BT3.9-102C (I/T1)
Type Water cooled Diesel
Rated power, SAE J1995 76 kW (102 hp) @ 2300 rpm
Fuel tank capacity 280 l
Electrical system 12 V
Sistema hidráulico
Driving Hydrostatic
Vibration Hydrostatic
Steering Hydrostatic
Service brake Hydrostatic in forward and reverse lever.
Parking/
Emergency brake
Failsafe multidisc brake in rear axle and front drum motor.

Equipamentos (Standard e opcionais)

Standard

12 V outlet (IIIA/T3 only); Amplitude, dual; AVC, Automatic Vibration Control; Back-up alarm; Battery switch; Brake release; Emergency stop; Filler caps lockable; Fuel level gauge; Fuel tank drainage; Hood, lockable; Horn; Hour meter; Hydraulic check-points; Interlock; Lifting points; Neutral start arrangement; Operator's platform, vibration dampened; Operator's seat, adjustable forward&reverse; Operator's station, fixed; Parking brake; Rear axle Limited slip (Single & Dual Speed); Rear axle No-spin (Traction Control); Scraper, fixed steel, smooth (high mounted); Seat belt 2", (not Open Platform); Service indicators/warnings; Storage box on operator's platform; Tie-down points; Tool boxes, integrated in fenders; User's instructions, one set; Vandal cover (over instrument panel); Vibration quick-stop

Opcional

50 hours Service kit; Compaction Meter (CMV), with tilt & gradeability indicator; Extra set of user's instruction; First aid box; Lights, driving, left hand traffic; Lights, driving, right hand traffic; Lights, working, LED; Operator's seat, adjustable comfort; Operator's station, rotating; Radio with MP3 (Cab); Rear view mirrors, traffic view; Remote monitoring, Dyn@Link; Rotating beacon; Scrapers (dual), fixed steel, smooth (low mounted); Scrapers (dual), flexible, smooth (low mounted); Scrapers, fixed steel, pads; Speedometer including pass counter; Tool set

Dados de Compactação

LEVEL II
