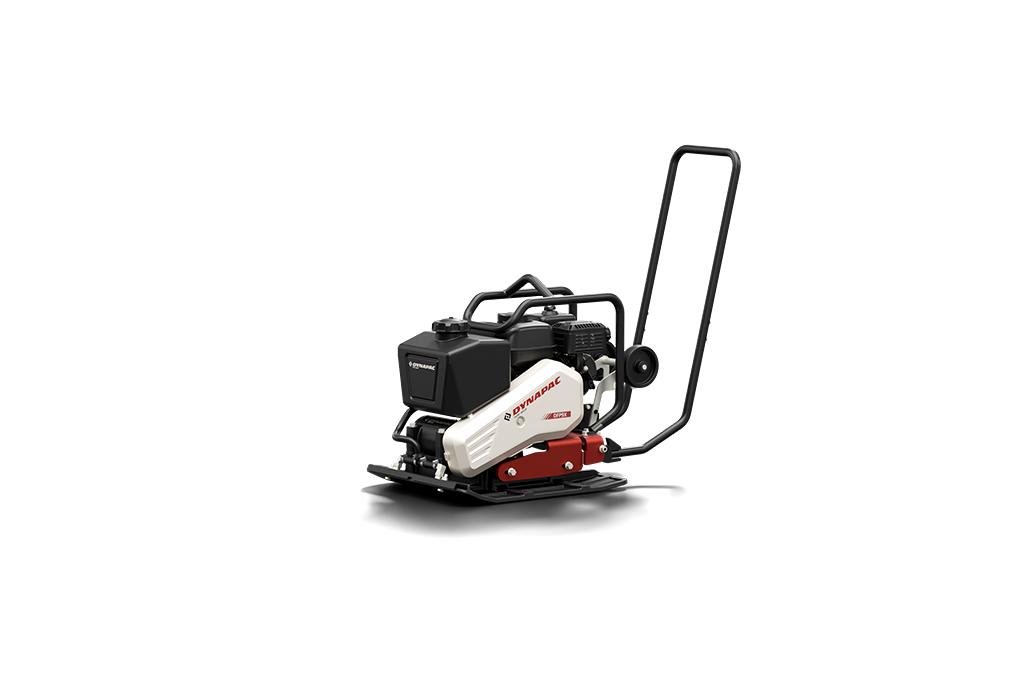

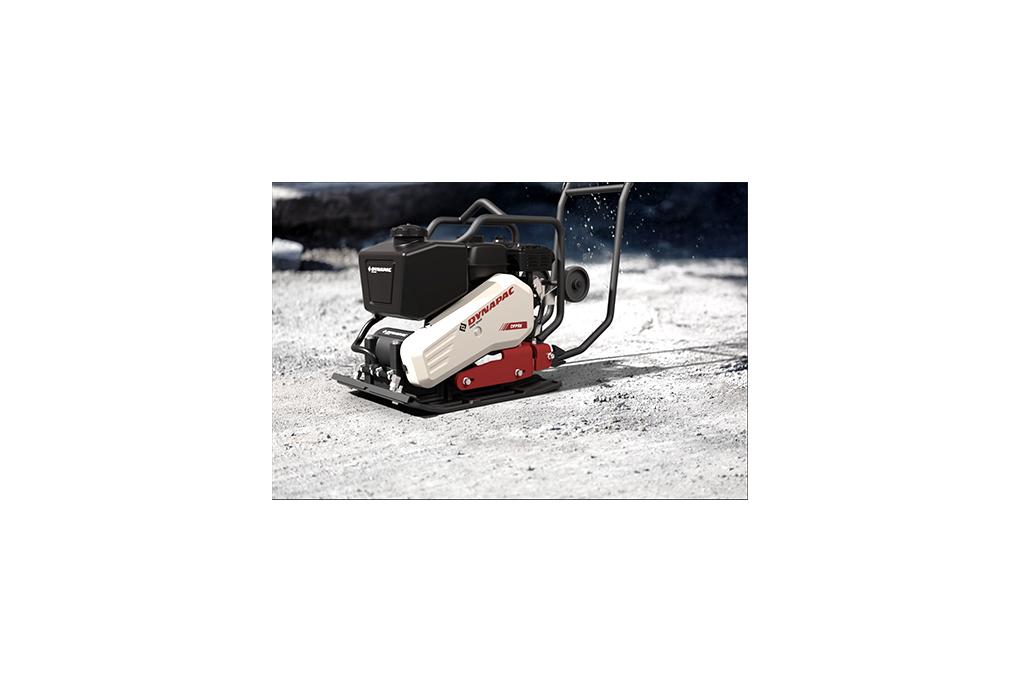

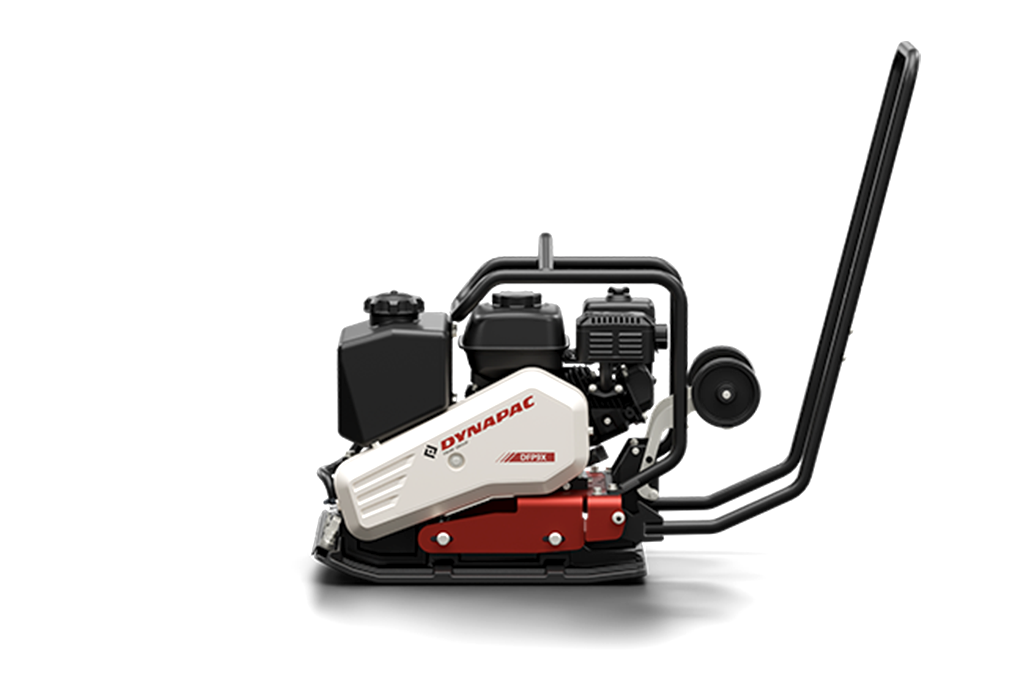

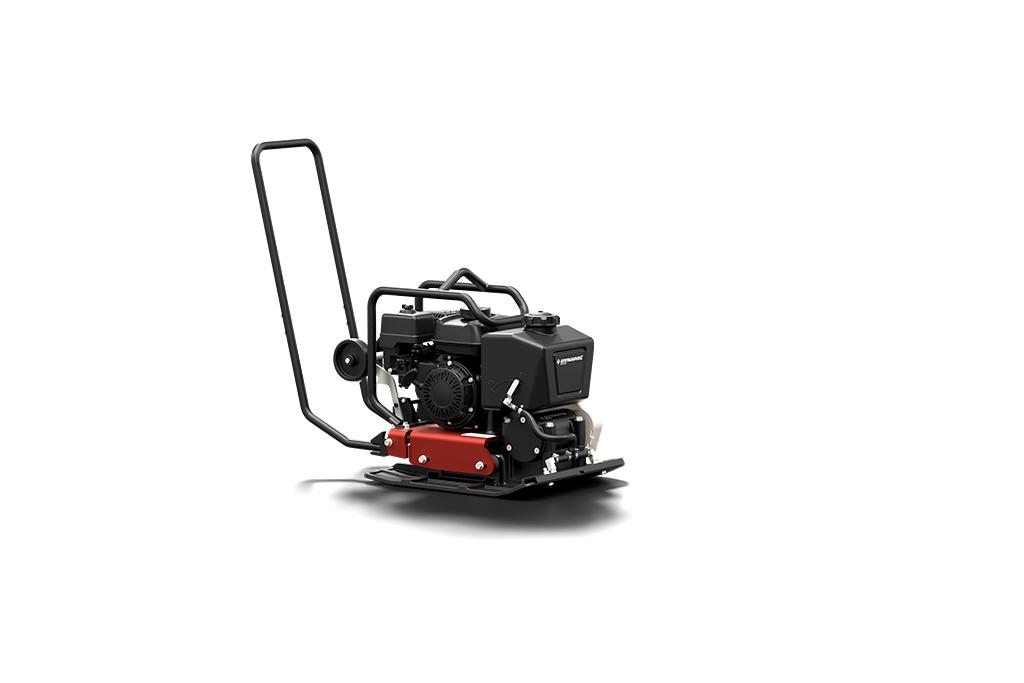

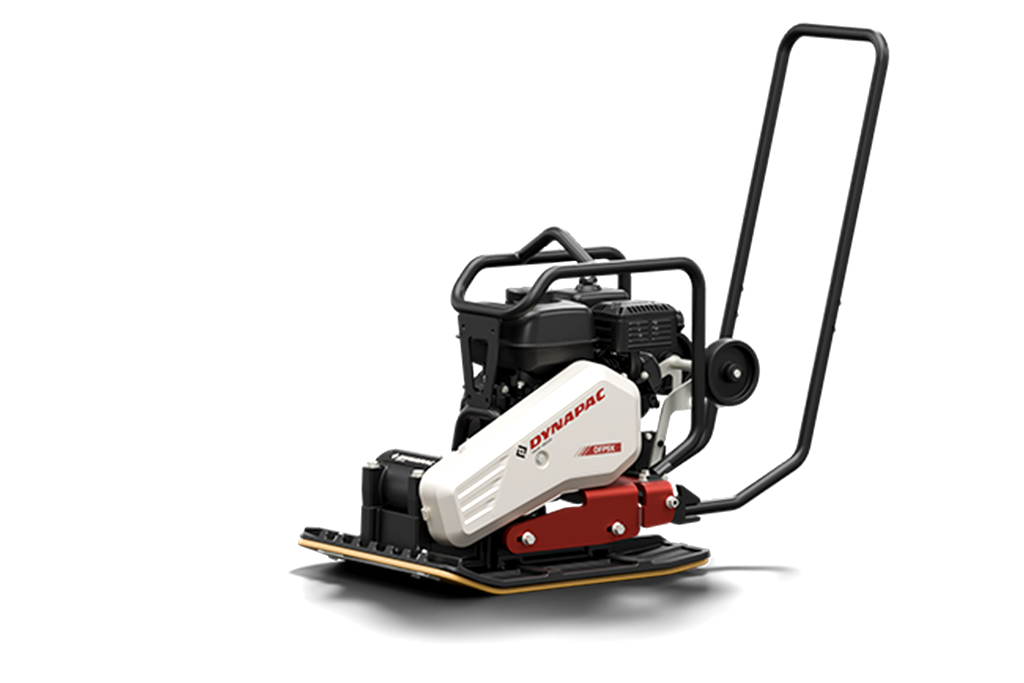

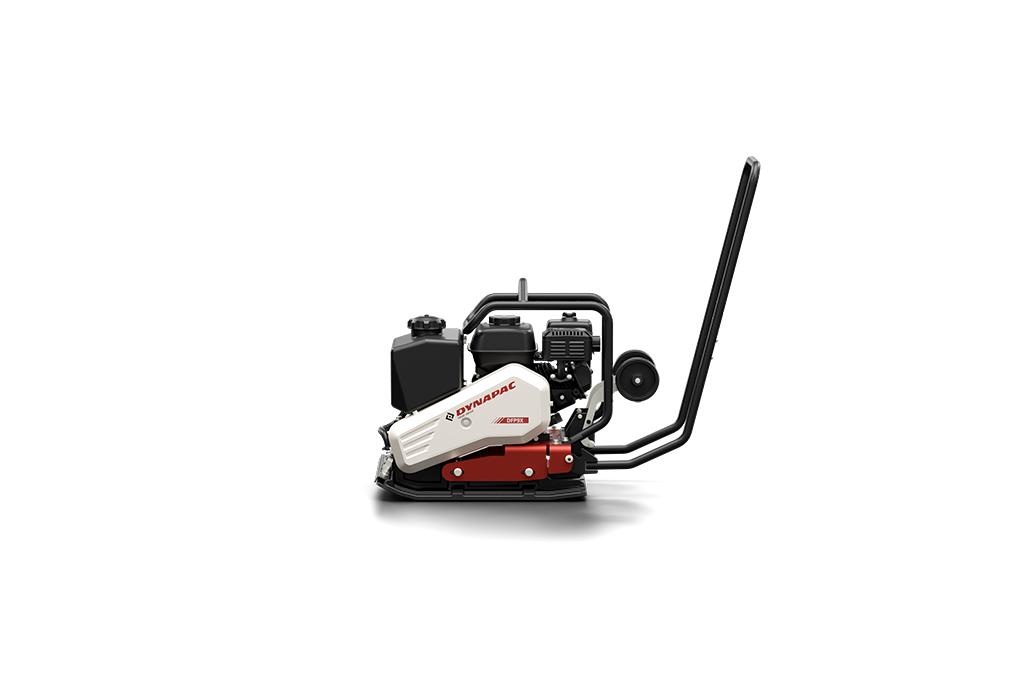

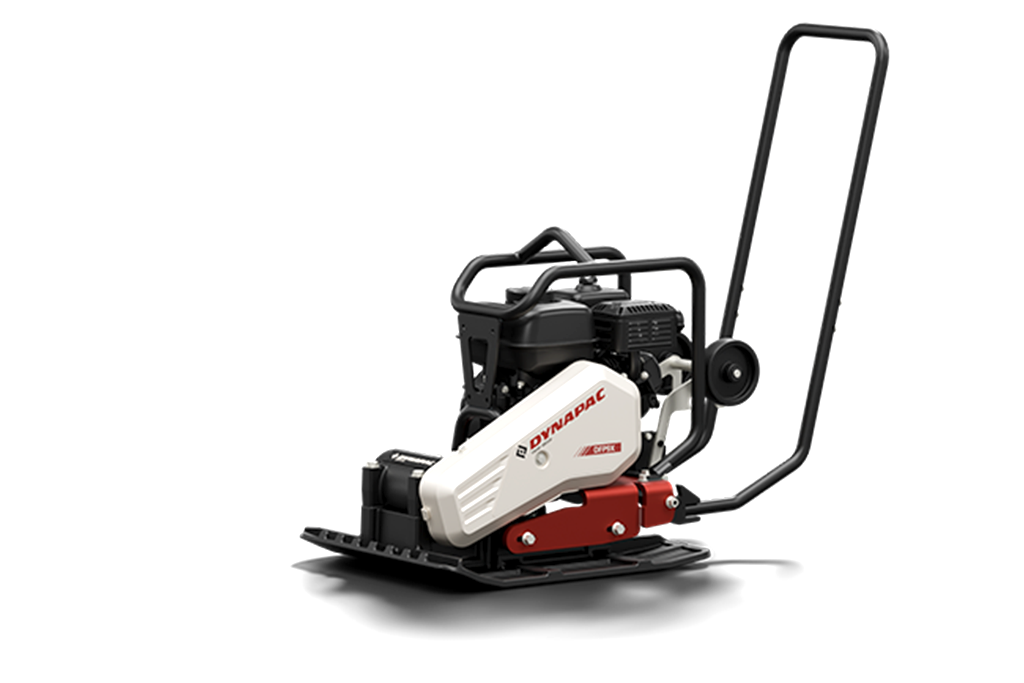

Dynapac DFP9X Forward plates

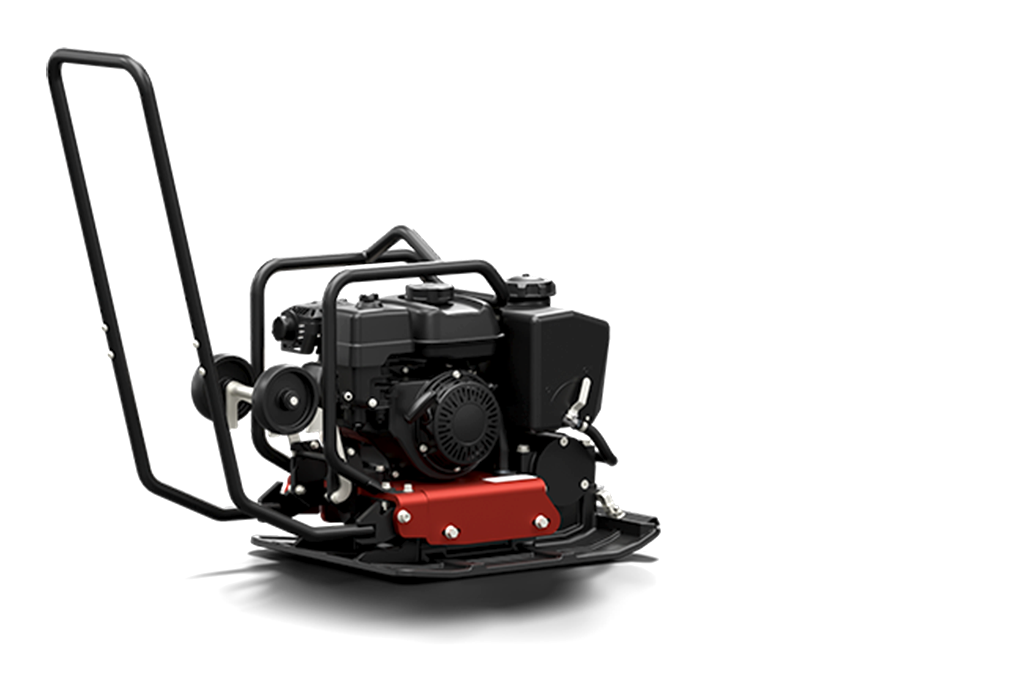

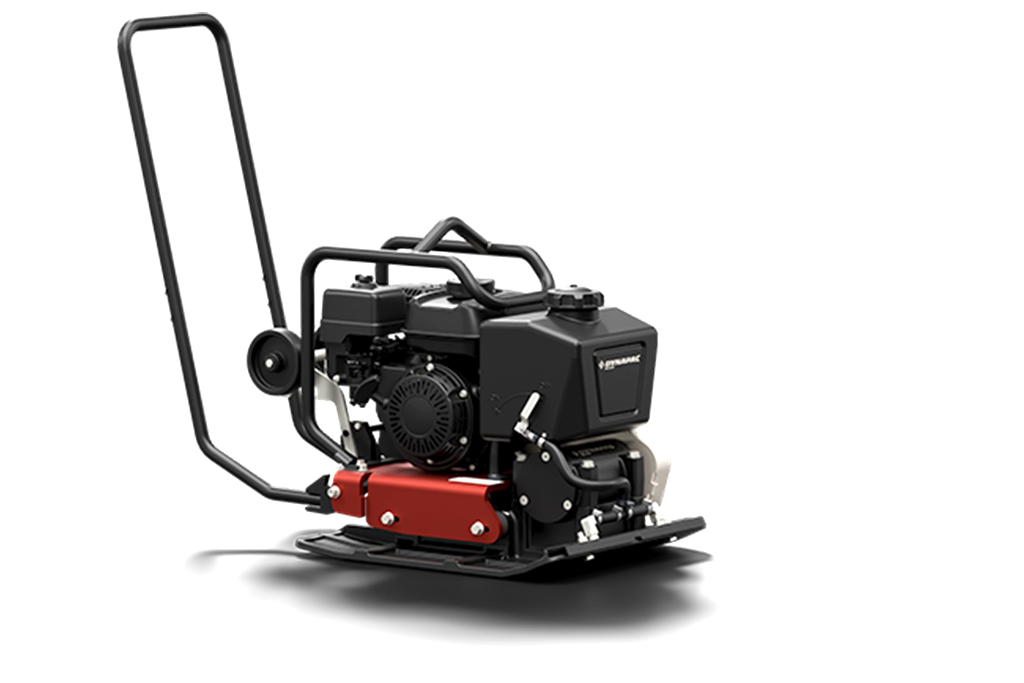

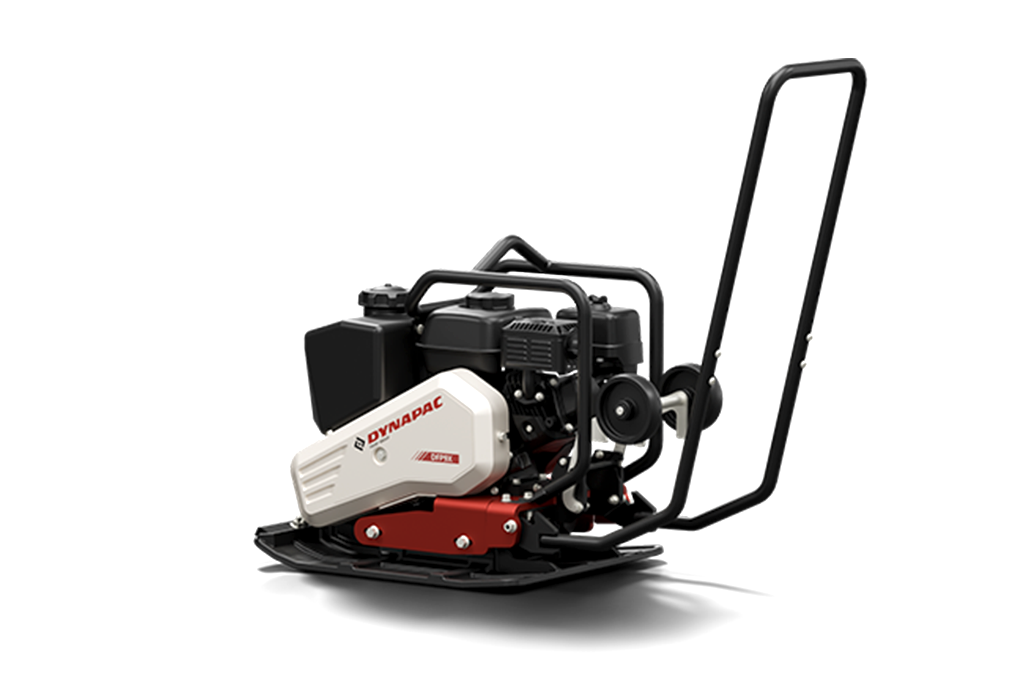

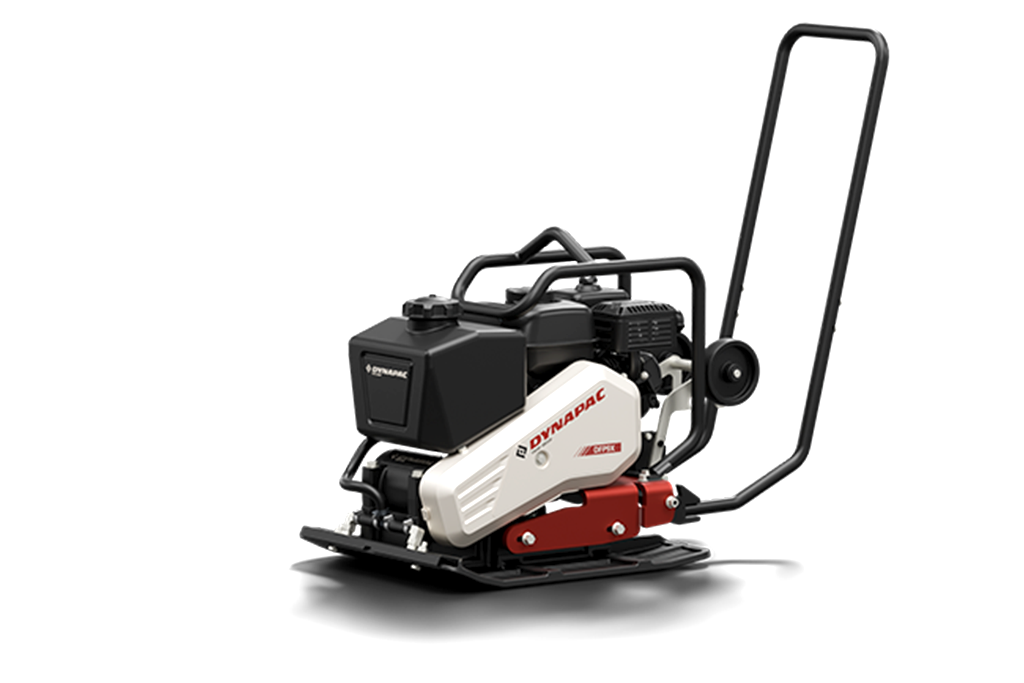

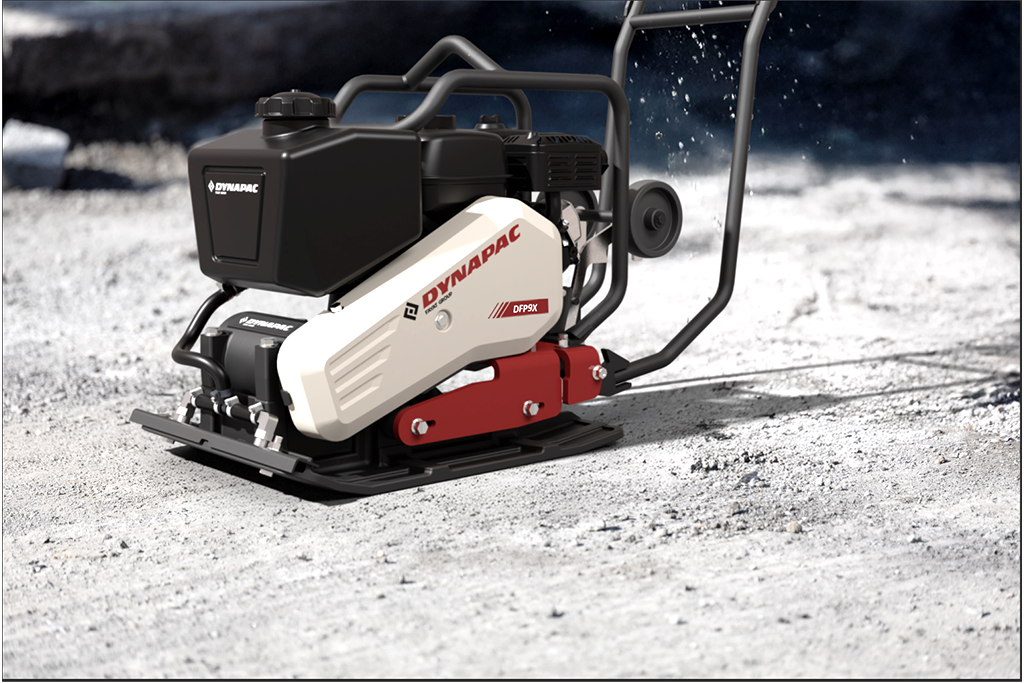

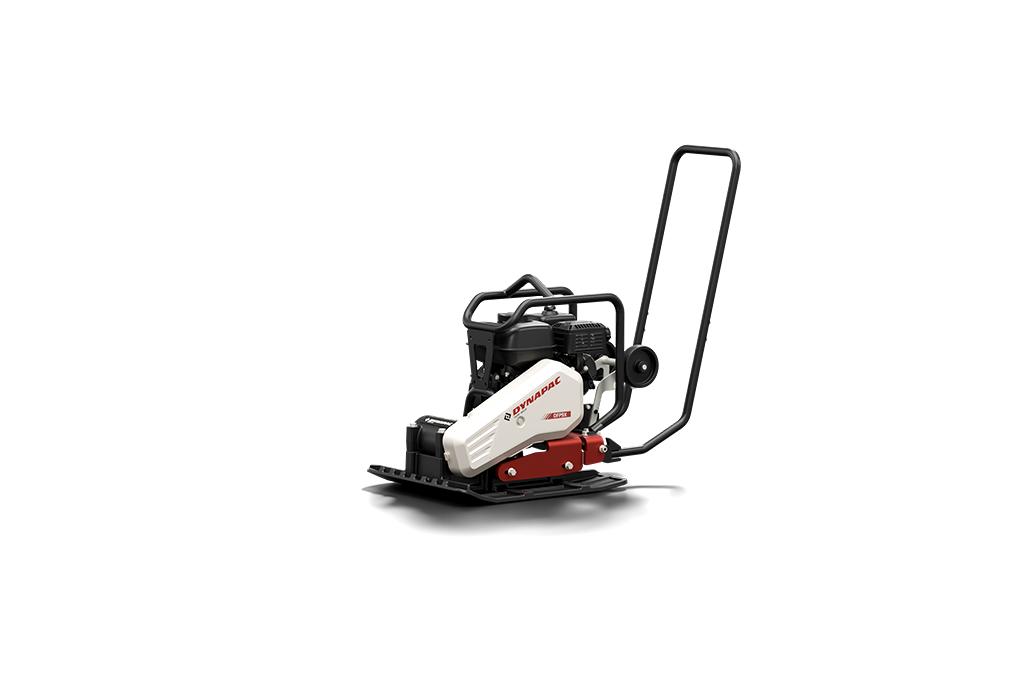

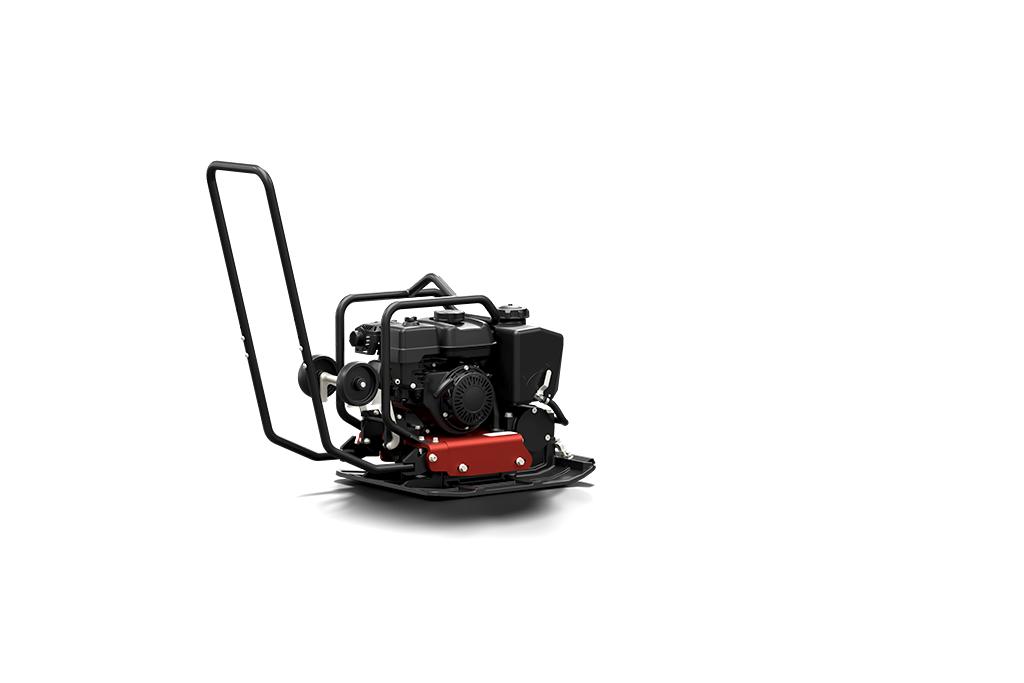

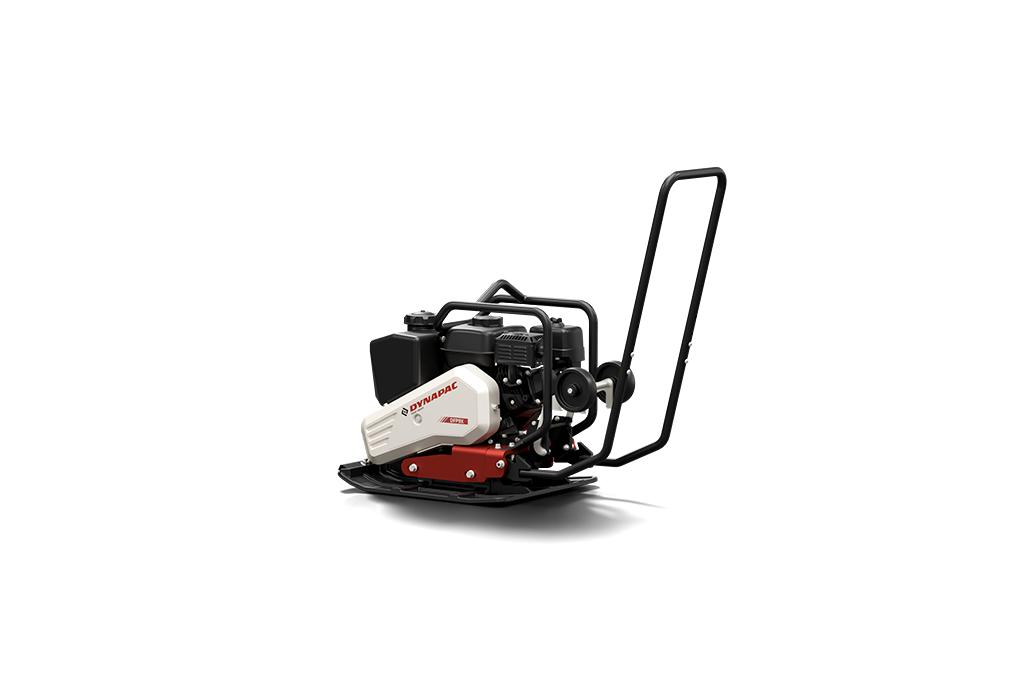

  • Pictures
  • Dimensions
H. Height 630 mm
H1. Height, standard handle 945 mm
H2. Height, standard handle 980 mm
L1. Length, standard handle 970 mm
H1. Height, comfort handle 990 mm
H2. Height, comfort handle 980 mm
L1. Length, comfort handle 1070 mm
L. Length 610 mm
W. Basic plate width 500 mm

Product information

Protected from the sand and stones, fully enclosed belt drive maximizes the life time of components like the V-belt. Heavy duty base plate offers excellent wear resistance. And the tubular frame protects the power-pack against rough handling during the plate’s lifetime.

Built for easy use

The DFP series can be equipped with low vibration comfort handles with Hand Arm Vibration (HAV) values that permit long working hours without documentation.

Special center mount handle is available in addition to the standard rear mount handle.

Foldable handles that save space, one point lift and transport wheels are features that are built to move the equipment with ease

Built to do more

Easily detachable water sprinkler system and block paving mat gives the flexibility to use the equipment for different jobs with asphalt and concrete blocks in addition to soil.

Technical data

Masses
Basic mass 93 kg
Operating mass 94 kg
Traction
Max. working speed 25 m/min
Compaction
Frequency 93 Hz
Centrifugal force 19 kN
Amplitude 1.2 mm
Engine
Manufacturer/Model Honda GX160
Emissions according to Stage V & US EPA
Type Air cooled, petrol
Number of cylinders 1
Fuel consumption /h, avg. 1.4 l
Fuel tank capacity 3.10 l
Manufacturer/Model
Power 3.6 kW @ 3600 rpm

Equipment (Standard and options)

Standard


■ Foldable steering handle with vibration isolation
■ Highly wear resistant base plate
■ Automatic decompression
■ All around protection for V-belt
■ Protection frame for powerpack
■ Recoil starter
■ Carrying handles
■ One point lift

Optional


■ Water sprinkler system 11l (+2.5kg)
■ Comfort handle
■ Puncture proof transport wheels (+2kg)
■ Block paving mat
■ Service Kit
