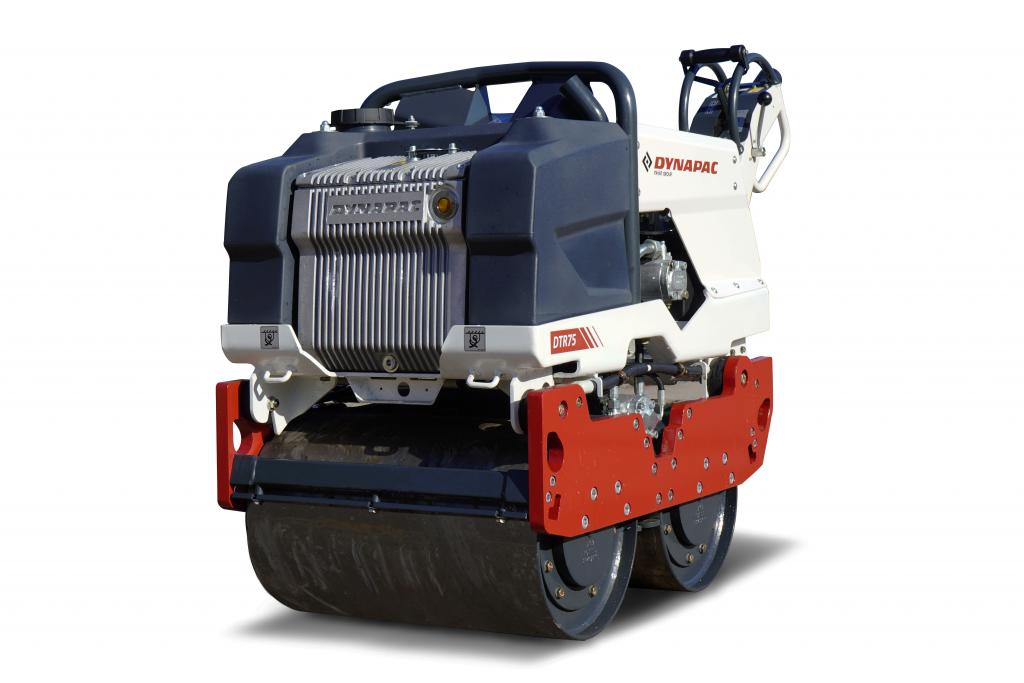

Dynapac DTR75-Honda

Dynapac DTR75-Honda Walk-behind rollers

  • Pictures
  • Dimensions
A. Wheelbase 500mm
B. Width 720mm
C. Clearance 210mm
D. Drum diameter 400mm
H. Height 1100mm
H1. Height 1700mm
K. Ground clearance 155mm
L. Length 2030mm
L1. Length 2130mm
O. Overhang 35mm
S. Drum shell thickness 8mm
W. Drum width 650mm
Operating Mass: 720 kg
Compaction Width: 650 mm

Technical data

Masses
Operating mass 720 kg
Basic mass 685 kg
Axle load, avg. 360 kg
Traction
Speed 1, forward 5.90 km/hr
Speed 2, forward 2.50 km/hr
Max. gradeability without vibr. 40 %
Max. gradeability with vibr. 35 %
Compaction
Amplitude 0.50/0.25 mm
Centrifugal force 25/13 kN
Vibration frequency 63/63 Hz
Engine
Manufacturer/Model Honda GX390
Number of cylinders 1
Fuel tank capacity 6.1 l
Fuel consumption l /h, avg 2.4 l
Emissions according to StageV/CARB III
Power 8.2 kW @ 3000 rpm
Type Air cooled, Petrol
Water tank capacity 60 l
Hydraulic system
Driving Hydrostatic
Vibration Hydrostatic
Service brake Hydrostatic
Parking brake Hydromechanical front+rear

Equipment (Standard and options)

Standard


■ Dual amplitude
■ Vibration and throttle regulation on the steering rod
■ Infinitely variable speed control
■ Hydrostatic vibration drive
■ Hydrostatic travel drive
■ Safety control including automatic parking brake
■ Height adjustable and low vibration steering rod
■ Back-up drive protection on the steering rod
■ Water sprinkler system, adjustable
■ Two scrapers for each drum
■ Automatic shutdown at low oil level
■ Electric and recoil starter
■ Hour meter
■ One point lift
