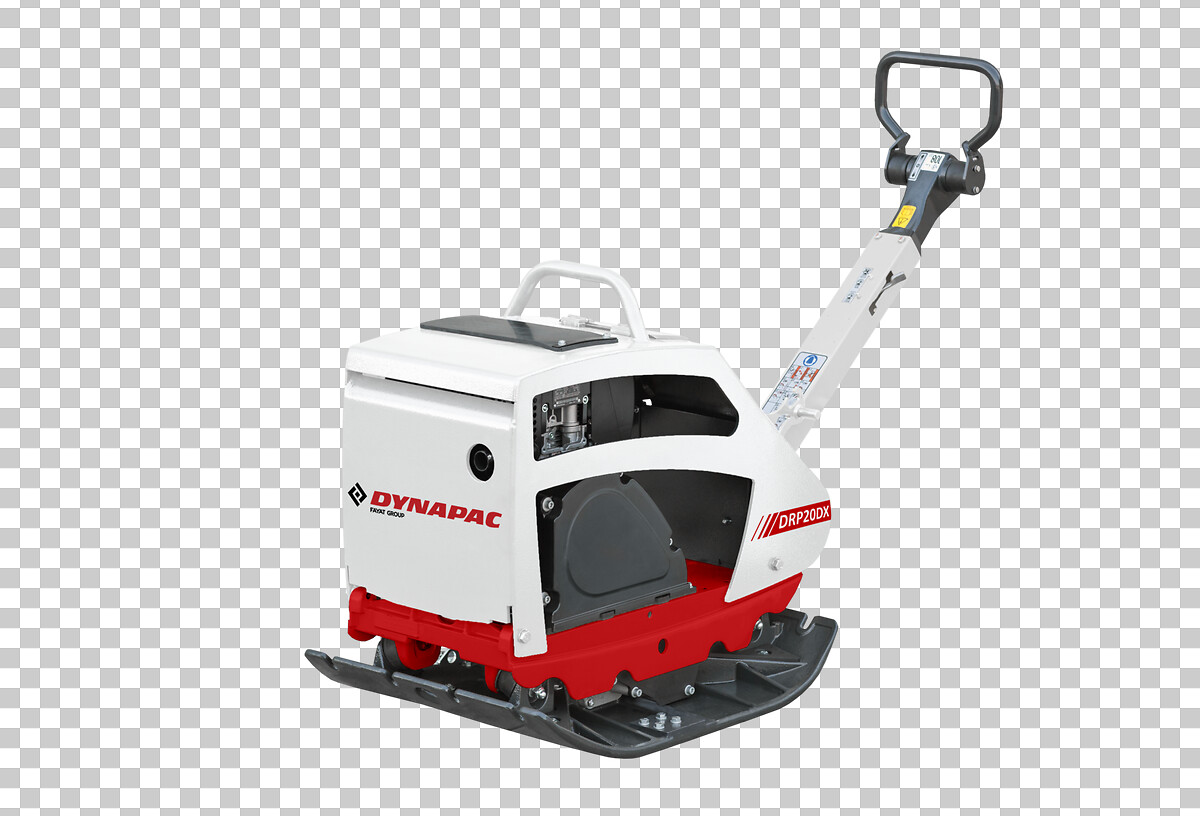

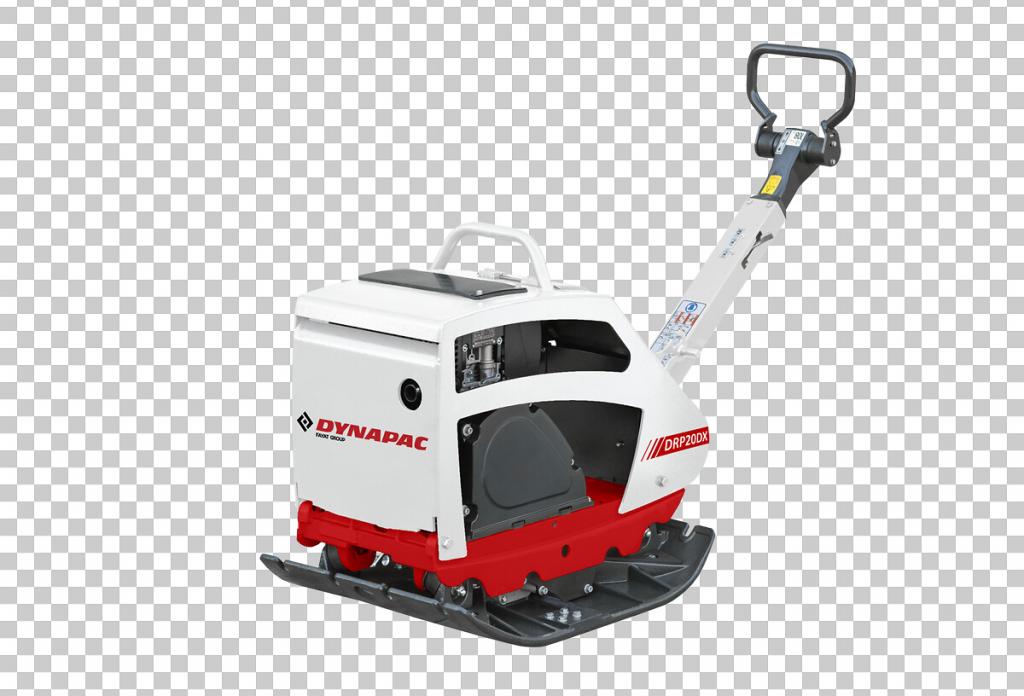

Dynapac DRP20DX Reversible plates

  • Pictures
  • Dimensions
H. Height 688 mm
H1. Height 820 mm
H2. Height 1220 mm
L. Length 1510 mm
L1. Length 762 mm
W. Basic plate width 600 mm
Discontinued false
Operating Mass: 225 kg
Compaction Width: 600 mm

Technical data

Masses
Basic mass 222 kg
Operating mass 225 kg
Traction
Max. gradeability 32 %
Max. working speed 27 m/min
Engine / Drive
Manufacturer/Model Hatz 1B20
Emissions according to Stage V
Type Air cooled diesel
Number of cylinders 1
Fuel tank capacity 3 l
Power 3.1 kW @ 3000 rpm

Equipment (Standard and options)

Standard

■ Control handle with vibration isolation
■ Height adjustable control handle
■ Control handle lock in transport and working position
■ Reverse drive protection
■ Highly wear resistant base plate
■ All around protection hood
■ All around protection for V-belt
■ One point lift
■ Automatic decompression
■ Recoil starter

Optional

■ Block paving mat
■ Puncture proof transport wheels (+5kg)
■ Service Kit
