Paving

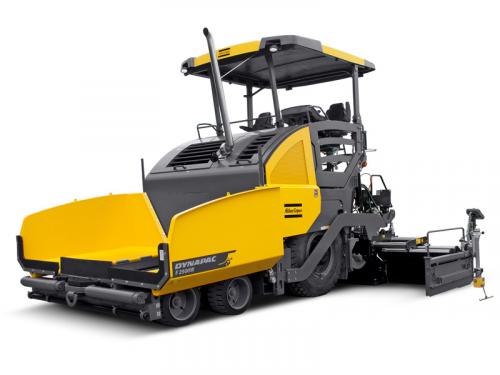

Dynapac F2500W Wheeled pavers

  • Pictures
  • Dimensions
A. Axle track
A. Wheelbase 2,241 mm
B1. Width, max. 3,250 mm
B2. Width, standard 2,550 mm
B3. Width, wheel track 2,053 mm
H1. Height, max. 3,900 mm
H2. Height, transport 3,100 mm
H2. Height, with folded exhaust
H3. Height 493 mm
H4. Dumping height
K. Ground clearance
L1. Length 6100 mm
L2. Length, hopper
L3. Length, hopper 2,123 mm

Product information

Dynapac wheeled pavers offers fast transport speeds, enormous traction as well as an outstanding paving performance. The result: superior performance to get you into pole position.

Features & benefits

Dynapac Dyn@Link
Dyn@Link

A tool to monitor and control their machine fleet efficiently and conveniently.

Technical data

Masses
Weight (incl. standard screed) 17.5 t
Traction
Maximum paving speed 30 m/min
Transport speed 15.0 km/h
Engine
Manufacturer/Model Cummins QSB 6.7-C173
Rated power 110 kW @ 2200 rpm
Emissions according to Stage IIIA (Tier 3)
Electrical system 24V
Fuel tank capacity 315 l
Conveyor
Conveyor type Dual bar feeder
Conveyor width 2 x 580 mm
Conveyor control Two independent conveyor with proportional control

Operations & maintenance manuals

Service Kits

Auger wear part kit
Category Subcategory P/N Additional info
Paving Wheeled pavers 4812027478 Center drive 380 mm
Paving Wheeled pavers 4812040657 Outer drive 380 mm
Conveyor chain kit
Category Subcategory P/N Additional info
Paving Wheeled pavers 4812029821 single quantity of bars
Paving Wheeled pavers 4812029822 double quantity of bars
Conveyor drive kit
Category Subcategory P/N Additional info
Paving Wheeled pavers 4812035552
Conveyor guide plate kit
Category Subcategory P/N Additional info
Paving Wheeled pavers 4812225799
Conveyor plate kit
Category Subcategory P/N Additional info
Paving Wheeled pavers 4812016662
Hopper rubber kit, standard, hydr. front flap
Category Subcategory P/N Additional info
Paving Wheeled pavers 4812018438
Hopper rubber kit; standard
Category Subcategory P/N Additional info
Paving Wheeled pavers 4812018441
Reversing roller kit
Category Subcategory P/N Additional info
Paving Wheeled pavers 4812035553
Service kit , 1000H
Category Subcategory P/N Additional info
Paving Wheeled pavers 4812046969 Tier 3
Paving Wheeled pavers 4812012384 Tier 4i
Paving Wheeled pavers 4812012936 Tier 4F
Service kit , 500H
Category Subcategory P/N Additional info
Paving Wheeled pavers 4700691229 Tier 3
Paving Wheeled pavers 4812043983 Tier 3
Including oil
Paving Wheeled pavers 4812012378 Tier 4i
Paving Wheeled pavers 4812012382 Tier 4i
Including oil
Paving Wheeled pavers 4812012939 Tier 4F

Spare parts manuals
