Dynapac FC1300C II

Dynapac FC1300C II Commercial pavers

  • Pictures

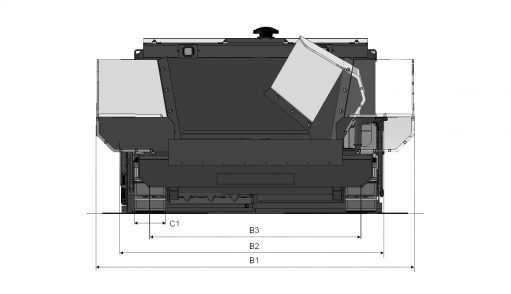

  • Dimensions
A. Axle track 1016 mm
B1. Width, max. 2921 mm
B2. Width, standard 2590 mm
B3. Width, center of tracks 2032 mm
C1. Track width 305 mm
H2. Height, transport 1727 mm
H4. Dumping height 585 mm
L1. Length, total 2997 mm
L2. Length, transport 2997 mm
L3. Length, hopper 1524 mm
Discontinued false
Basic paving width: 2.6 m
Max. paving width: 4.0 m
Max. layer thickn.: N/A
Theor placement cap.: 180 t/h

Technical data

Masses
Mass (incl. standard screed) 4.5 t
Mass (tractor) 3.6 t
Traction
Paving speed 0-30 mpm
Transport speed 5.0 km/h
Engine / Drive
Manufacturer/Model Kubota D1505
Emissions according to EPA T4f/EU4
Electrical system 12 V
Engine alternator capacity 60 Amps
Fuel tank capacity 76 l
Rated power, SAE J1995 24 hp @ 2300 rpm
Alternative Engine
Manufacturer/Model Kubota D1505, EPA T3
Rated power 38 hp @ 2300 rpm
Rated power [engine 2, kW] 28 kW
Rated power [engine 2, rpm] 2200 rpm
Rated power, SAE J1995

Equipment (Standard and options)

Standard

Poly pad tracks, Backup Alarm, Rotating Beacon Wash down spray system, Dual operator station, Automatic auger feed control Screed Extension & main heat, Auto Flame-Out, Continuous-Ignition Screed Heating Extending Walkboard, Smooth Tandem Pump Steering with a Positive Neutral

Optional

Slope Meter mechanical, Cut Off Plates, Umbrella
