Dynapac FC1300C Tracked pavers

Pictures
Dimensions

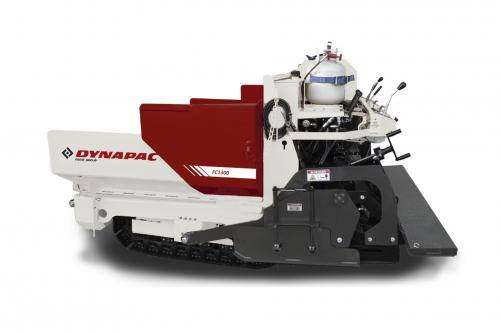

Dynapac FC1300C

Blueprint side view Dynapac FC1300C

A. Axle track	1397 mm
B1. Width, max.	3175 mm
B2. Width, standard	2590 mm
B3. Width, center of tracks	2030 mm
C1. Track width	305 mm
H2. Height, transport	1630 mm
H4. Dumping height	535 mm
L1. Length, total	3450 mm
L2. Length, transport	3450 mm
L3. Length, hopper	1520 mm

Basic paving width: 2.60 m

Max. paving width: 4.00 m

Max. layer thickn.: N/A

Theor placement cap.: N/A

Technical data

Traction
Transport speed	km/h
Engine / Drive
Manufacturer/Model	Kubota
Emissions according to	EPA T4i/EU3B
Rated power, SAE J1995	28 kW (38 hp ) @
Conveyor
Conveyor width	mm
