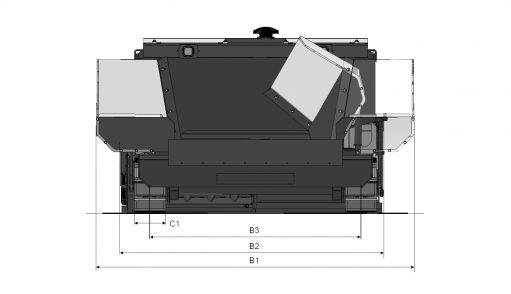

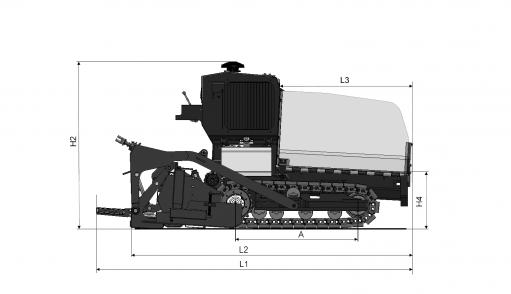

| A. Axle track | 1397 mm |
|---|---|
| B1. Width, max. | 3175 mm |
| B2. Width, standard | 2590 mm |
| B3. Width, center of tracks | 2030 mm |
| C1. Track width | 305 mm |
| H2. Height, transport | 1630 mm |
| H4. Dumping height | 535 mm |
| L1. Length, total | 3450 mm |
| L2. Length, transport | 3450 mm |
| L3. Length, hopper | 1520 mm |
| Masses | |
| Mass (incl. standard screed) | 5.8 t |
|---|---|
| Mass (tractor) | 4.3 t |
| Traction | |
| Paving speed | 0-43 mpm |
| Transport speed | 5.0 km/h |
| Engine / Drive | |
| Manufacturer / Model | Cummins QSF 2.8 |
| Emissions according to | EPA T4F/EU4 |
| Rated power | hp |
| Rated power | |
| Rated power | kW |
| Rated power, SAE J1995 | |
| DEF tank capacity | l |
| Electrical system | 12V |
| Number of cylinders | |
| Water tank capacity | m3 |
| Fuel tank capacity | 53 l |
| Heating generator capacity | 12 kw, 240v, 1 Phase |
| Rated power, SAE J1995 | 74 hp @ 2200 rpm |
| Alternative Engine | |
| Manufacturer / Model | Cummins QSF 2.8, EPA T3 |
| Rated power | 54 kw (72 hp) |
| Conveyor | |
| Conveyor control | On / Off |
| Conveyor type | Dual slat conveyor |
| Conveyor width | 610 mm |
Standard
Optional
