Paving

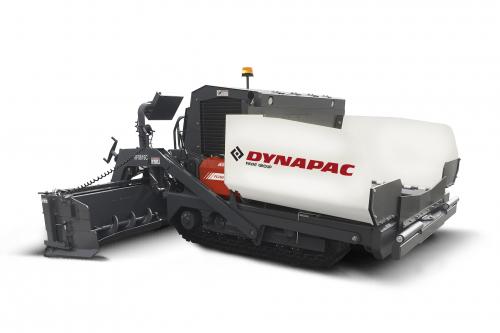

Dynapac FC1600C Commercial pavers

  • Pictures
  • Dimensions
A. Axle track 1830 mm
B1. Width, max. 3175 mm
B2. Width, standard 2590 mm
B3. Width, center of tracks 2060 mm
C1. Track width 305 mm
H2. Height, transport 1800 mm
H4. Dumping height 535 mm
L1. Length, total 4190 mm
L2. Length, transport 4190 mm
L3. Length, hopper 1650 mm

Product information

Technical data

Masses
Mass (tractor) 6.4 t
Mass (incl. standard screed) 8.4 t
Traction
Paving speed 2,5 km/h
Transport speed 5.0 km/h
Engine
Manufacturer/Model Cummins QSB 3.3
Emissions according to EPA T3/EU3A
Rated power, SAE J1995 74 kW (99 hp ) @ 1400 rpm
Electrical system 12V
Fuel tank capacity 83 l
Engine alternator capacity 120 Amps
Heating generator capacity 16 kW, 240V 1 phase
Conveyor
Conveyor type Dual slat conveyor
Conveyor width 610 mm
Conveyor control On/Off

Fluids

Grease
Type of fluid Volume Additional info
Dynapac Paver Grease

Service Kits

Conveyor chain kit
Category Subcategory P/N Additional info
Paving Large pavers 4812273376
Conveyor drive kit
Category Subcategory P/N Additional info
Paving Large pavers 4812035552
Conveyor guide plate kit
Category Subcategory P/N Additional info
Paving Large pavers 4812028403
Conveyor plate kit
Category Subcategory P/N Additional info
Paving Large pavers 4812028402
Reversing roller kit
Category Subcategory P/N Additional info
Paving Large pavers 4812035553

Equipment (Standard and options)

Standard

LED Work Lights, Backup Alarm & Rotating Beacon, Reversibe auger and conveyor, Rebuildable wear resistance conveyor floor plates, Segmented High Wear Augers, Hydraulic Tow Point, Screed Power Crown, Screed Power Match height, FleetLink Telematics, Ultrasonic sensors auger, Wash down spray system, Dual operator console with conventional electrics, screed ext. power slope control, heated end gate

Optional

Road Crew Kit, 3 Man operation, Levelling System, Averaging Ski beam, Cut-Off plates, Screed Extension, Truck Hitch, Umbrella
