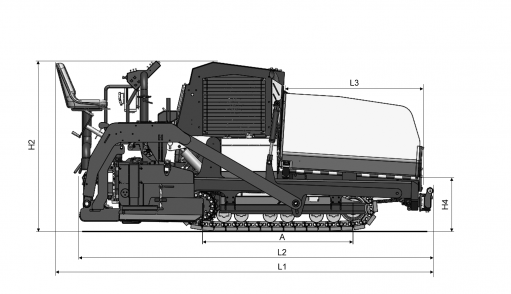

| A. Axle track | 1830 mm |
|---|---|

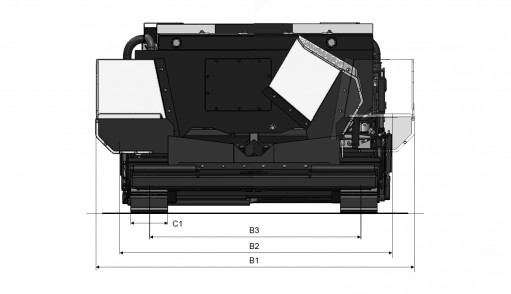

| B1. Width, max. | 3175 mm |
| B2. Width, standard | 2590 mm |
| B3. Width, center of tracks | 1930 mm |
| C1. Track width | 355 mm |
| H2. Height, transport | 1800 mm |
| H4. Dumping height | 406 mm |
| L1. Length, total | 4190 mm |
| L2. Length, transport | |
| L3. Length, hopper | 1650 mm |
| Masses | |
| Mass (incl. standard screed) | 8.4 t |
|---|---|
| Mass (tractor) | 6.4 t |
| Traction | |
| Paving speed | 0-43 mpm |
| Transport speed | 5.0 km/h |
| Engine / Drive | |
| Electrical system | 12V |
| Emissions according to | EPA T4f/EU4 |
| Engine alternator capacity | 140 Amps |
| Fuel tank capacity | 83 l |
| Heating generator capacity | 16 kW, 240V 1 phase |
| Manufacturer/Model | Cummins QSF 3.8 |
| Rated power, SAE J1995 | 120 hp @ 2200 rpm |
| Alternative Engine | |
| Manufacturer/Model | Cummins QSF 3.8, EPA Tier 3 |
| Rated power [engine 2, kW] | 89 kW |
| Rated power [engine 2, rpm] | 2200 rpm |
| Conveyor | |
| Conveyor control | Automatic with Auger control |
| Conveyor type | Dual slat conveyor |
| Conveyor width | 560 mm |
Standard
Optional
