Paving

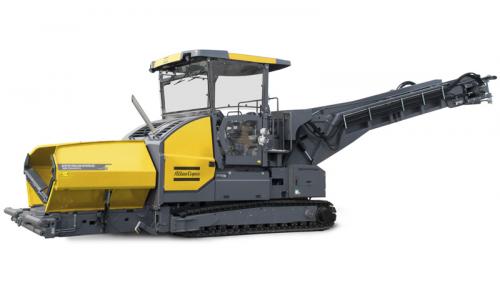

Dynapac MF2500CL Mobile feeders

0
My comparison
  • Pictures

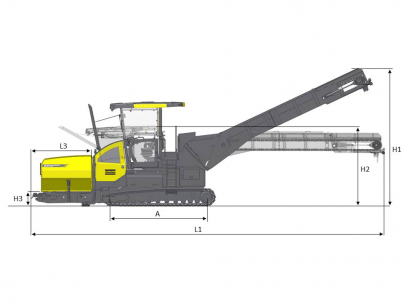

  • Dimensions
A. Axle track 3.95 m

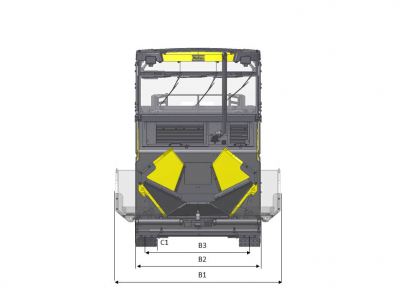

B1. Width, max. 3.55 m
B2. Width, standard 2.55 m
B3. Width, center of tracks 2.09 m
C1. Track width 320 mm
H1. Height, max. 5 m
H2. Height, transport 3.10 m
H3. Height 580 mm
L1. Length 9.25 m
L3. Length, hopper 2.25 m
Discontinued true
Mobile feeders are a transport and conveying system which is used as a non-contact connecting element between road finishing machines and transport vehicles carrying mixed goods. A hopper for mixed goods is used for storing the material, which is transported on a heat-resistant rubber type band to a sensor controlled, automatically height adjusted conveyor at the front end of the feeder.
Transport mass: 22 t
Conv feed capacity: 4000 t/h
Feeding height: 4.4 m / 1.9 m

Technical data

Masses
Transport mass 22 t
Traction
Operating speed, max 25 m/min
Transport speed, max 4 km/h
Engine / Drive
Manufacturer / Model Cummins QSB 6.7-C260
Manufacturer Cummins
Emissions according to Stage 3A / 4 (Tier 3 / 4f)
After treatment
Rated power, SAE J1995 194 kW (260 hp ) @ 2200 rpm
Peak power
DEF tank capacity l
Fuel tank capacity 300 l
Average fuel conumption
Model QSB 6.7-C260
Electrical system 24 V
Alternative Engine
After treatment
Peak power
Alternative Engine
Peak power
Fuel tank capacity
Average fuel conumption
Conveyor
Conveyor type Rubber belt on two chains mounted with metal stiffeners.
Conveyor speed Variable
Conveyor width 1.20 m
Feeding height m
Feeding height (max/min) 4.4 m / 1.9 m
Feed capacity 4000 t/h
