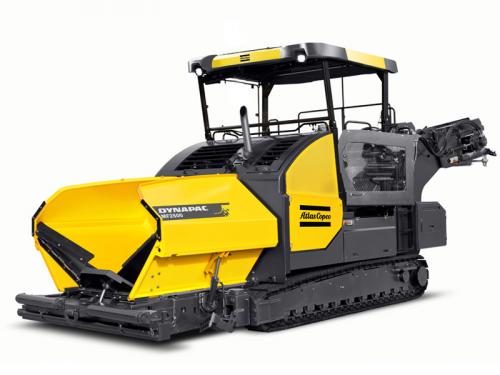

Dynapac MF2500CM Mobile feeders

0
My comparison
  • Pictures
  • Dimensions
A. Axle track 3.95 m
B1. Width, max. 3.55 m
B2. Width, standard 2.55 m
B3. Width, center of tracks 2.09 m
C1. Track width 320 mm
H1. Height, max. 5 m
H2. Height, transport 3.10 m
H3. Height 580 mm
H5. Feeding height, max. 3.0 m
H6. Feeding height, min. 2.1 m
L1. Length 9.25 m
L3. Length, hopper 2.25 m
Discontinued true
Mobile feeders are a transport and conveying system which is used as a non-contact connecting element between road finishing machines and transport vehicles carrying mixed goods. A hopper for mixed goods is used for storing the material, which is transported on a heat-resistant rubber type band to a sensor controlled, automatically height adjusted conveyor at the front end of the feeder.
Transport mass: 21 t
Conv feed capacity: 4000 t/h
Feeding height: 3.0 m / 2.1 m

Technical data

Masses
Transport mass 21 t
Traction
Operating speed, max 25 m/min
Transport speed, max 4 km/h
Engine / Drive
Manufacturer / Model Cummins QSB 6.7-C220
Rated power, SAE J1995 164 kW (220 hp ) @ 2200 rpm
Electrical system 24V
Emissions according to EU Stage III / EPA Tier 3
Alternative Engine
Manufacturer / Model Cummins QSB 6.7-C225
Rated power, SAE J1995 168 kW (225 hp ) @ 2200 rpm
Electrical system 24V
Emissions according to EU Stage V / EPA Tier 4f
Conveyor
Conveyor type Rubber belt on two chains,
mounted with metal stiffeners
Conveyor speed Constantly variable
Conveyor width 1.20 m
Feeding height (max/min) 3.0 m / 2.1 m
Feed capacity 4000 t/h

Service Kits

Gas hose kit
Category Subcategory P/N Additional info
Paving Screeds D299000339
Screed plate kit
Category Subcategory P/N Additional info
Paving Screeds D299000258 Hardox 400
