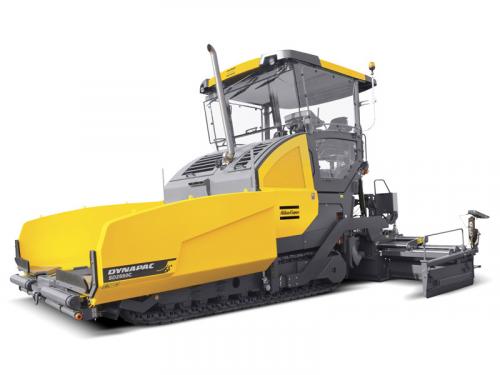

Dynapac SD2550C

Dynapac SD2550C HIGHWAY PAVERS

  • Experience
  • Pictures
  • Dimensions
A. Axle track 3.36 m
B1. Width, max. 3.47 m
B2. Width, standard 2.55 m
B3. Width, center of tracks 1.99 m
C1. Track width 0.32 m
H1. Height, max. 3.90 m
H2. Height, transport 3.10 m
H3. Height 0.46 m
L1. Length 6.63 m
L3. Length, hopper 2.60 m
Discontinued false
Basic paving width: 2.55 m
Max. paving width: 12 m
Max. layer thickn.: 360 mm
Theor placement cap.: 900 t/h

Features & benefits

Dynapac Dyn@Link
Dyn@Link

A tool to monitor and control their machine fleet efficiently and conveniently.


Dynapac Eco mode
Eco mode

Big fuel savings with ECO!


Dynapac Stage V / TIER 4f
Stage V / TIER 4f

Any Dynapac product equipped with a Stage IV engine, is not only compliant with the latest emission stage but is also contributing to great fuel cost savings.


Dynapac Vario speed
Vario speed

Vario speed details here

Technical data

Masses
Basic weight (incl. standard screed) 20 t
Traction
Maximum paving speed 28 m/min
Transport speed 4.0 km/h
Engine / Drive
Manufacturer/Model Cummins QSB6.7-C220
Emissions according to EU Stage IIIA
Rated power, SAE J1995 164 kW @ 2200 rpm
Electrical system 24 V
Fuel tank capacity 337 l
Alternative Engine
Manufacturer/Model Cummins QSB6.7-C225
Emissions according to EU Stage V / US EPA t4f
Rated power, SAE J1995 168 kW @ 2200 rpm
Electrical system 24 V
DEF tank capacity 37 l
Fuel tank capacity 362 l
Alternative Engine
Manufacturer
Model
Manufacturer/Model
Rated power
Peak Power
DEF tank capacity
Fuel tank capacity
Average fuel conumption
After treatment
Conveyor
Conveyor type Dual bar feeder
Conveyor control Automatic with limit switches
Conveyor width 2x 655 mm

Sales arguments

  • Intuitive PaveManager 2.0 user interface
  • Integrated advanced leveling solution
  • Big hopper volume
  • Perfect overview with slidable cabin
  • Increased traction due to longer tracks

Service Kits

Conveyor drive kit
Category Subcategory P/N Additional info
Paving Finisseurs 4812035552
Conveyor guide plate kit
Category Subcategory P/N Additional info
Paving Finisseurs 4812229393
Hopper rubber kit; standard
Category Subcategory P/N Additional info
Paving Finisseurs 4812018438 Tier 3
Hopper rubber kit; with front hopper
Category Subcategory P/N Additional info
Paving Finisseurs 4812018438
Kit chaînes de convoyeurs
Category Subcategory P/N Additional info
Paving Finisseurs 4812028516
Kit d’entretien , 1000H
Category Subcategory P/N Additional info
Paving Finisseurs 4812046969 Tier 3
Paving Finisseurs 4812012384 Tier 4i
Paving Finisseurs 4812012936 Tier 4F
Kit d’entretien , 500H
Category Subcategory P/N Additional info
Paving Finisseurs 4700691229 Tier 3
Paving Finisseurs 4812043983 Tier 3 Including oil
Paving Finisseurs 4812012378 Tier 4i
Paving Finisseurs 4812012382 Tier 4i Including oil
Paving Finisseurs 4812012939 Tier 4F
Kit pâles de vis
Category Subcategory P/N Additional info
Paving Finisseurs 4812027733 Ø430mm
Paving Finisseurs 4812027736 500 mm
Kit tôles de fond de convoyeurs
Category Subcategory P/N Additional info
Paving Finisseurs 4812016661
Reversing roller kit
Category Subcategory P/N Additional info
Paving Finisseurs 4812035553
Rubber plate kit
Category Subcategory P/N Additional info
Paving Finisseurs 4812035551

Equipment (Standard and options)

Standard


Fixed, pivotable

Optional


Hydraulic damping and stepless adjustable (20cm) with automatic function

Compaction data

LEVEL II
