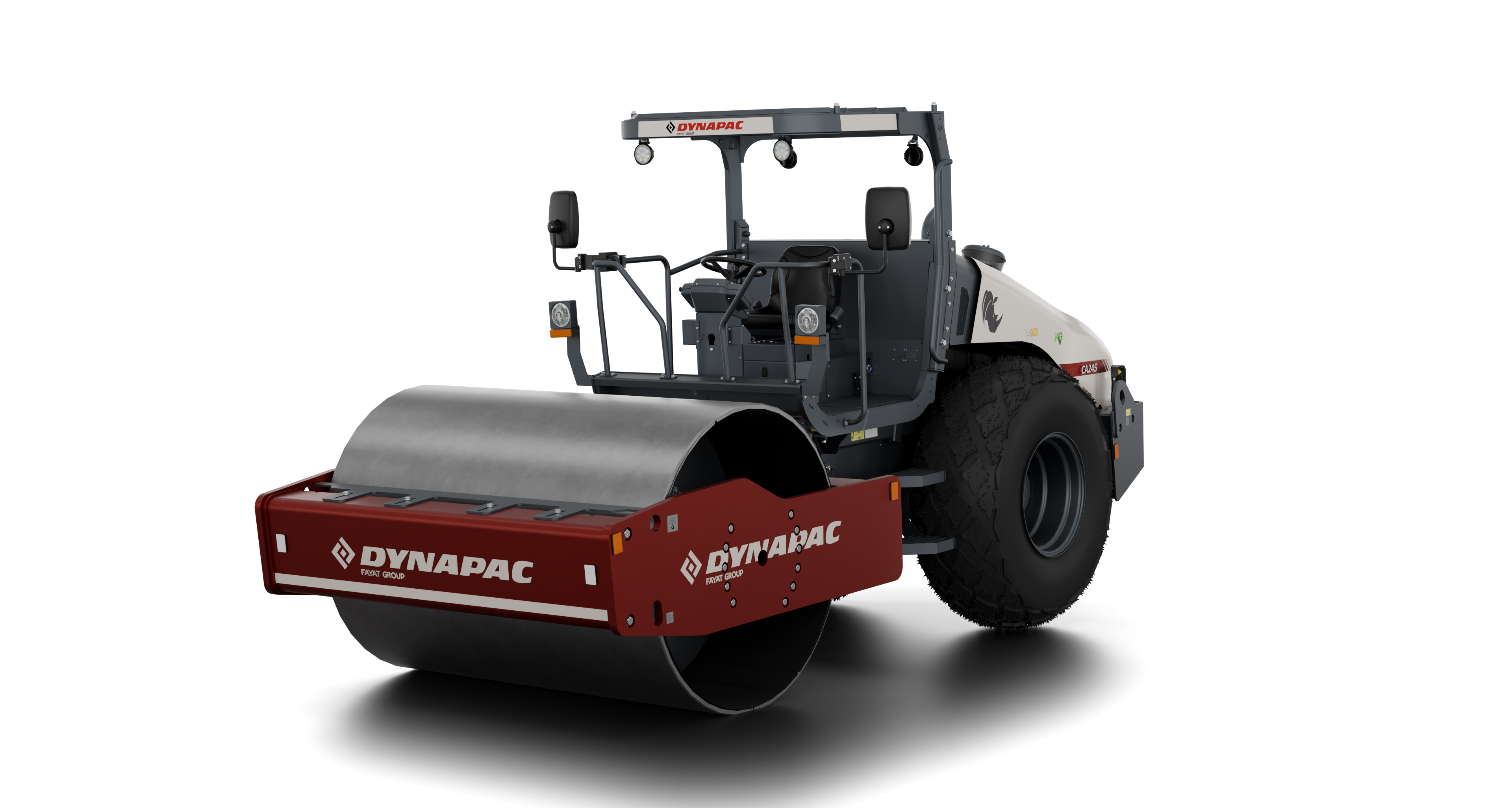

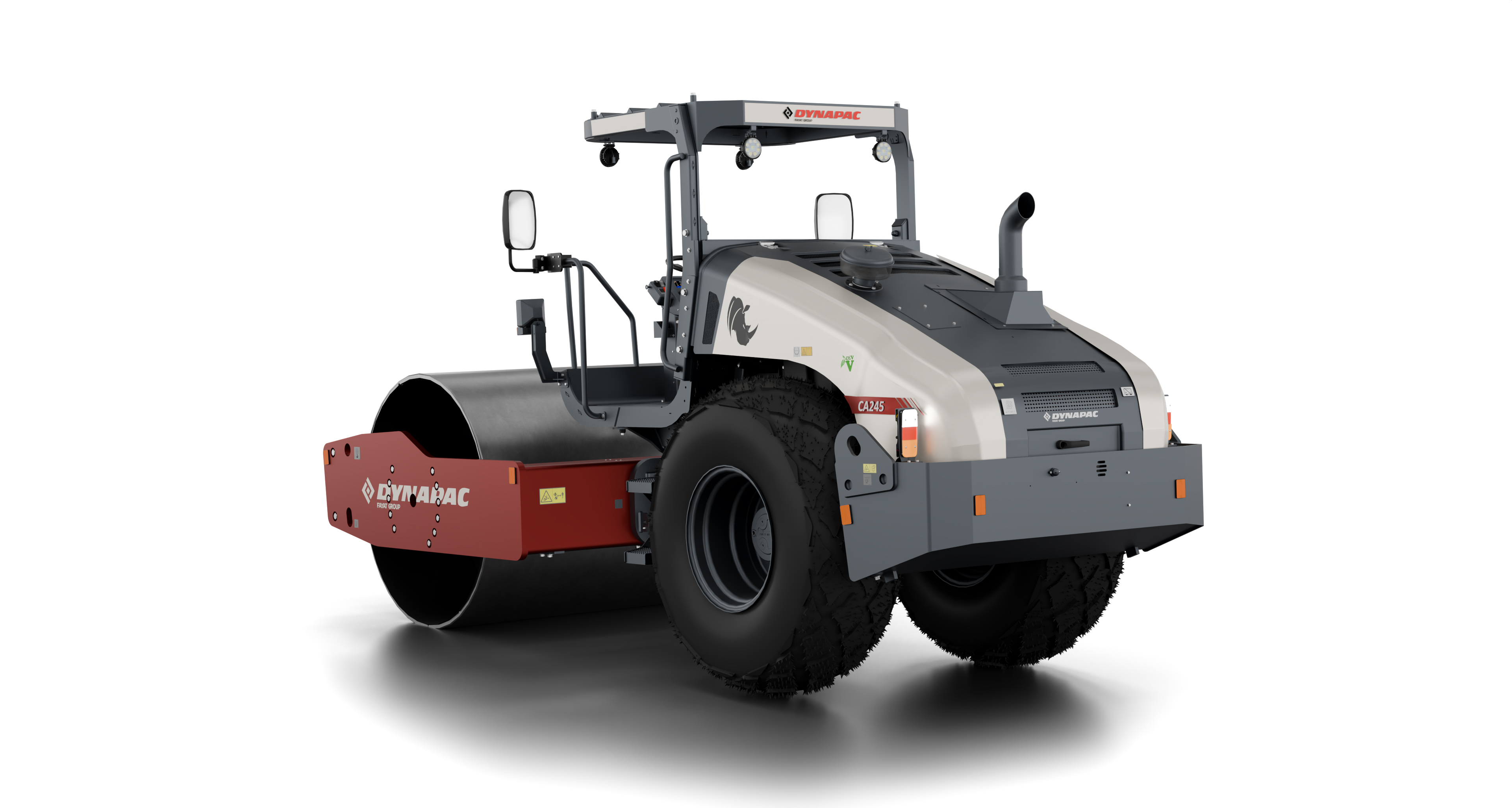

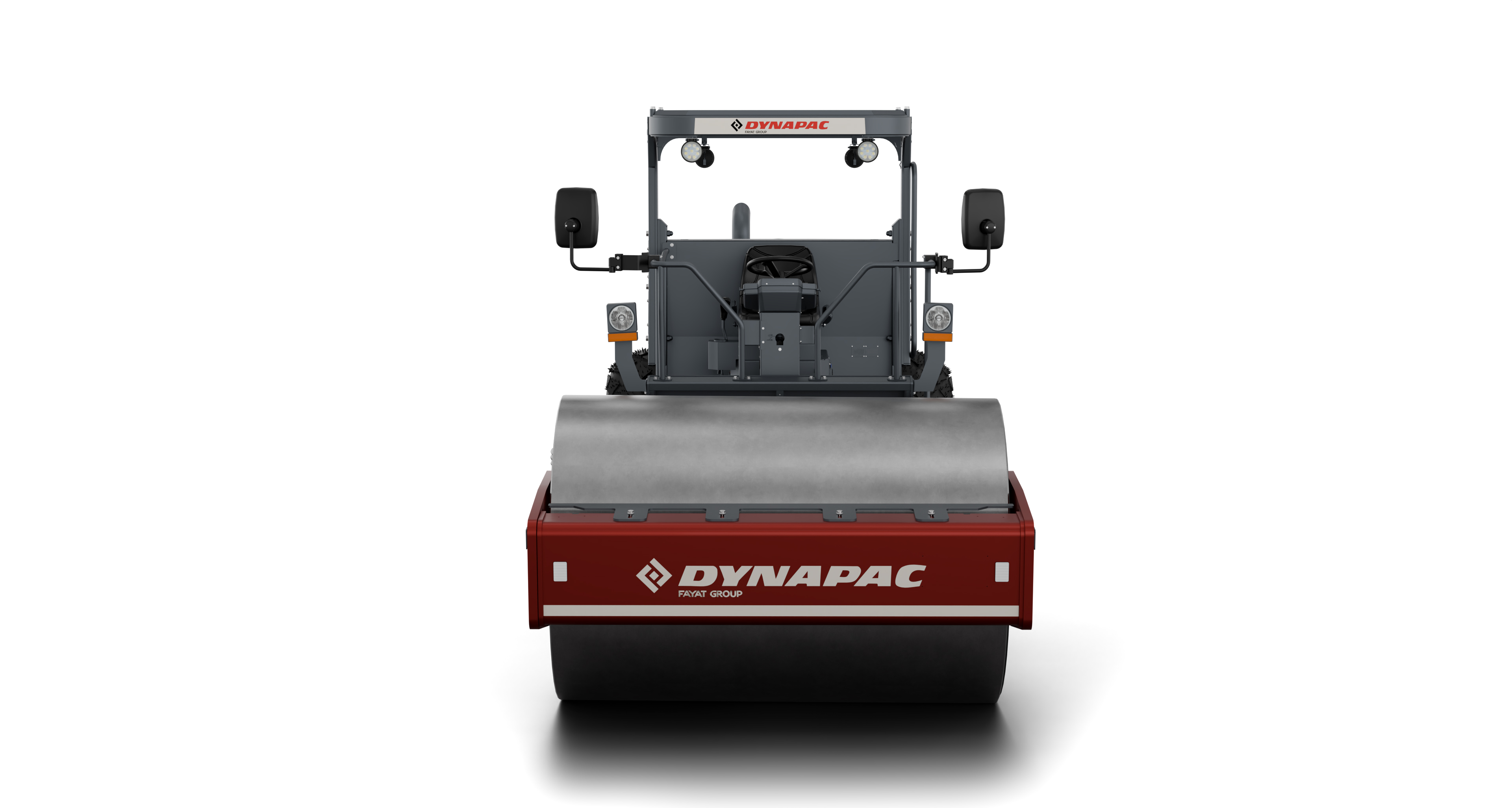

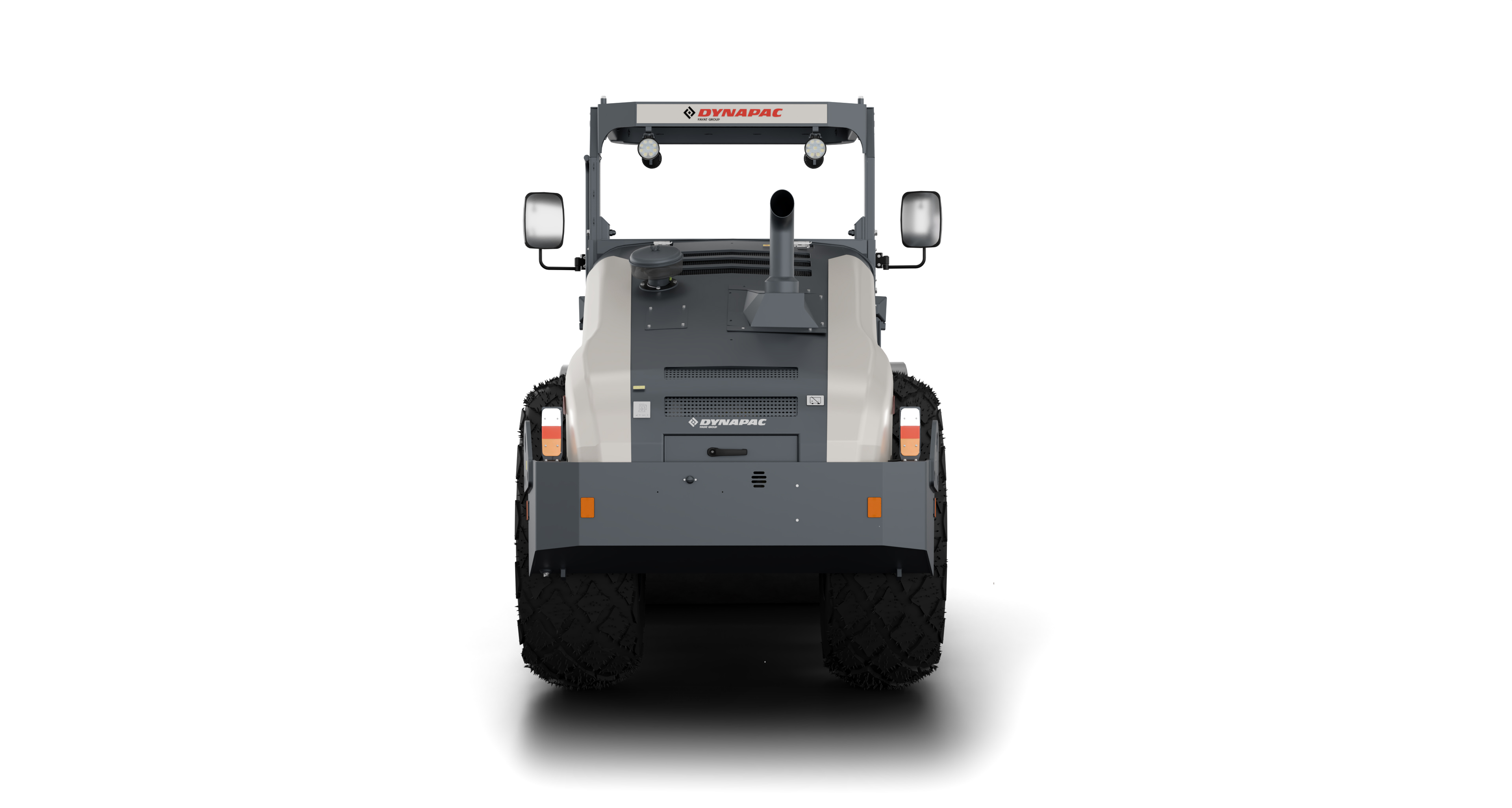

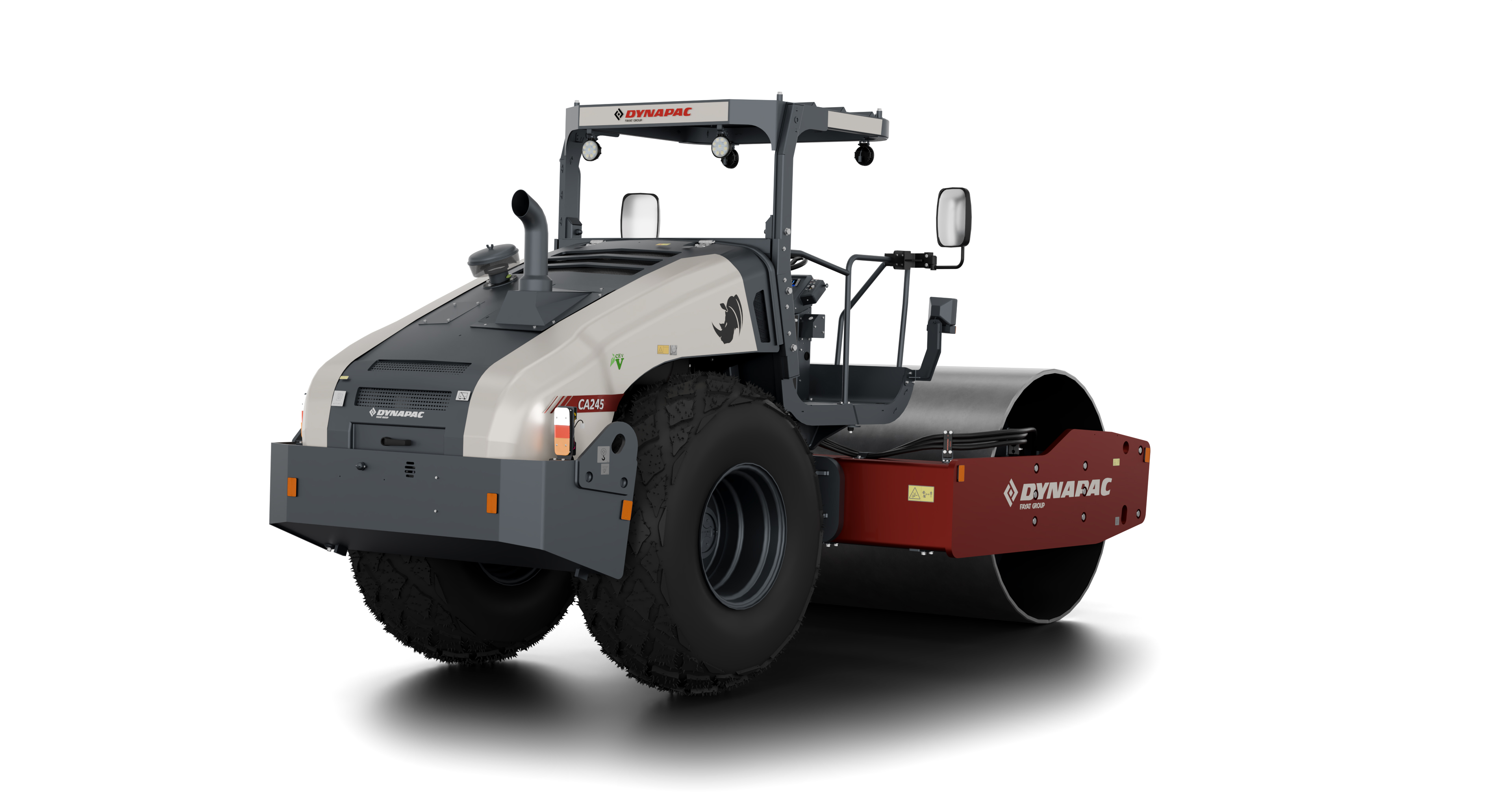

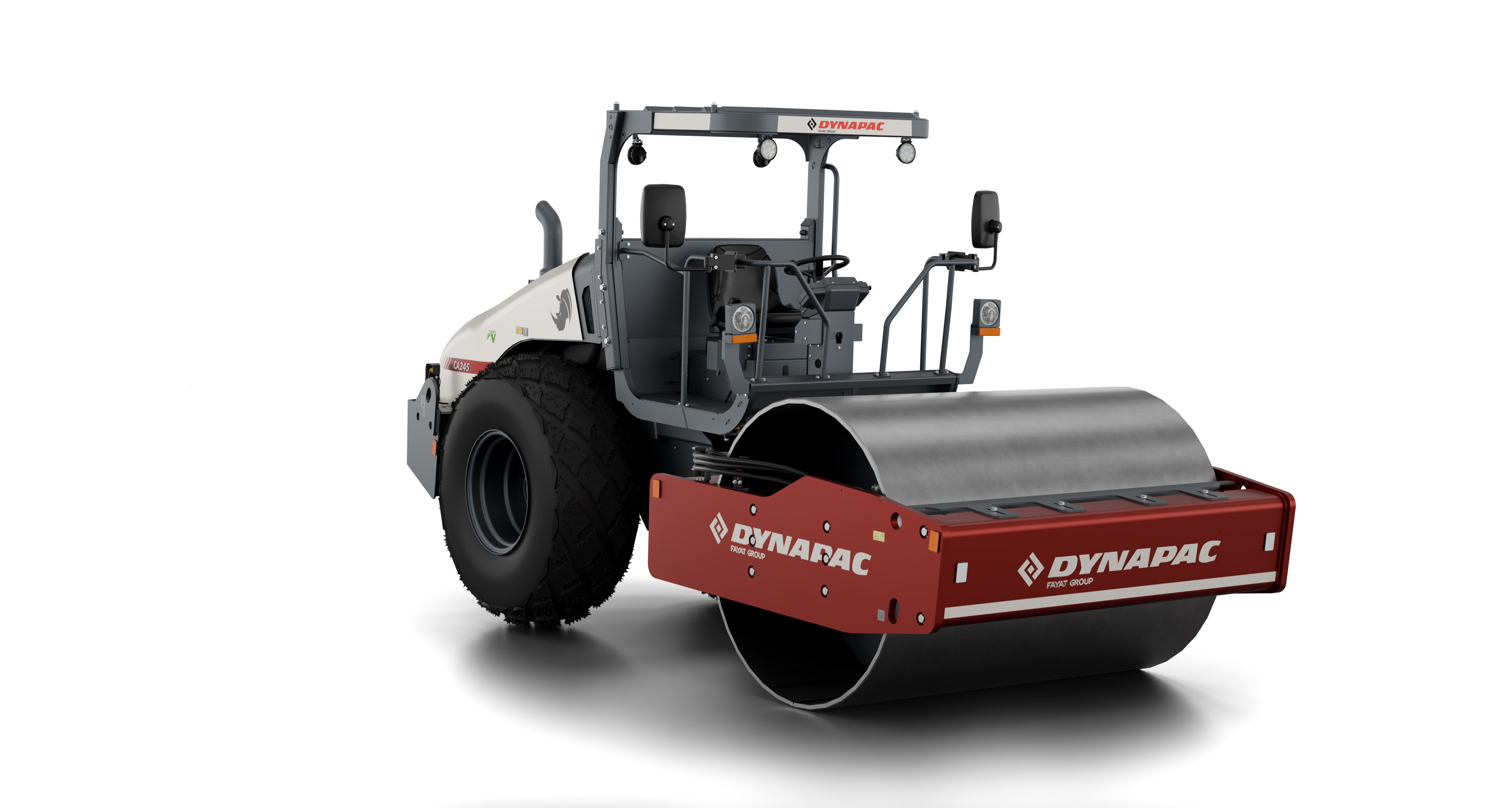

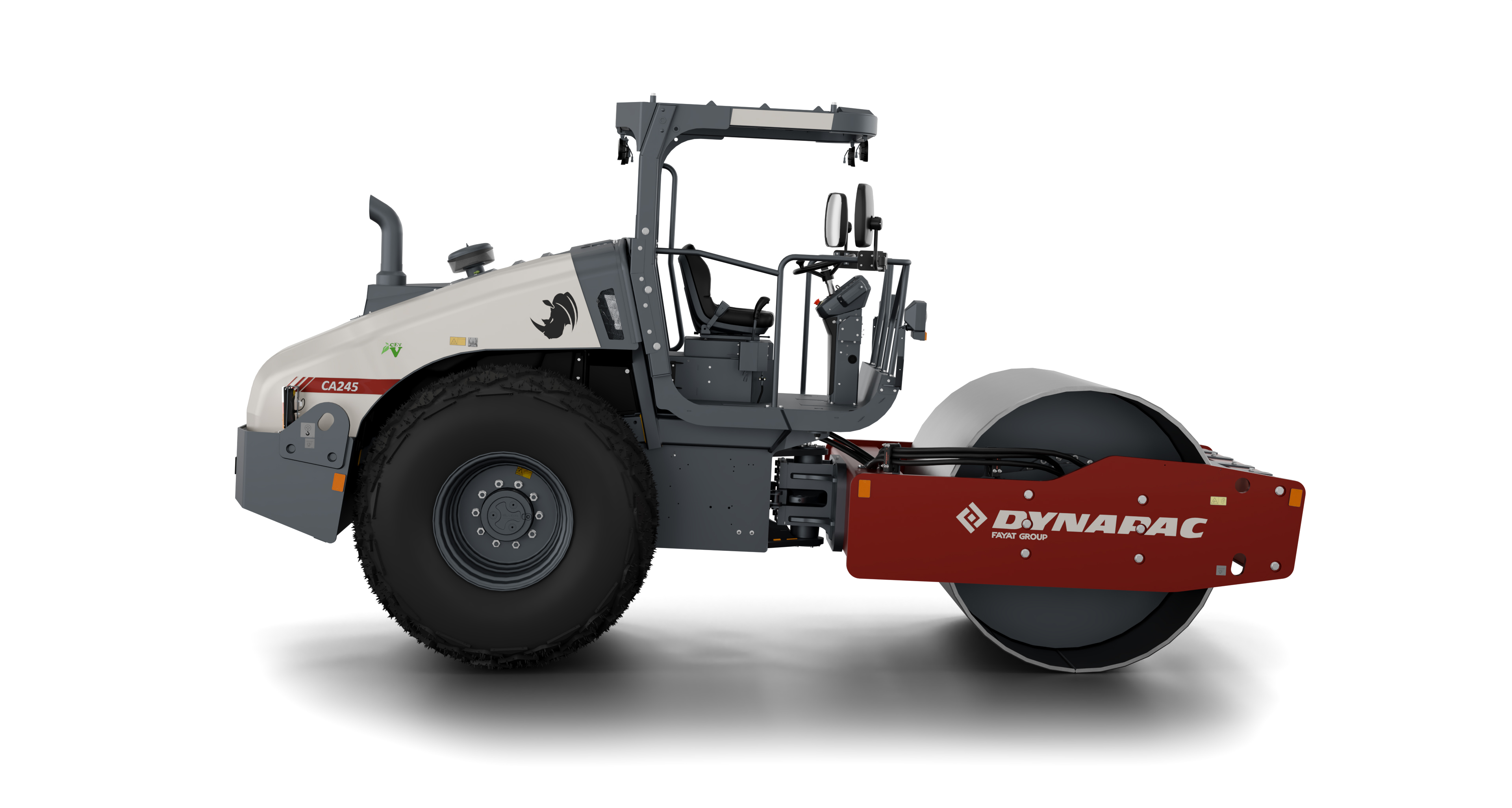

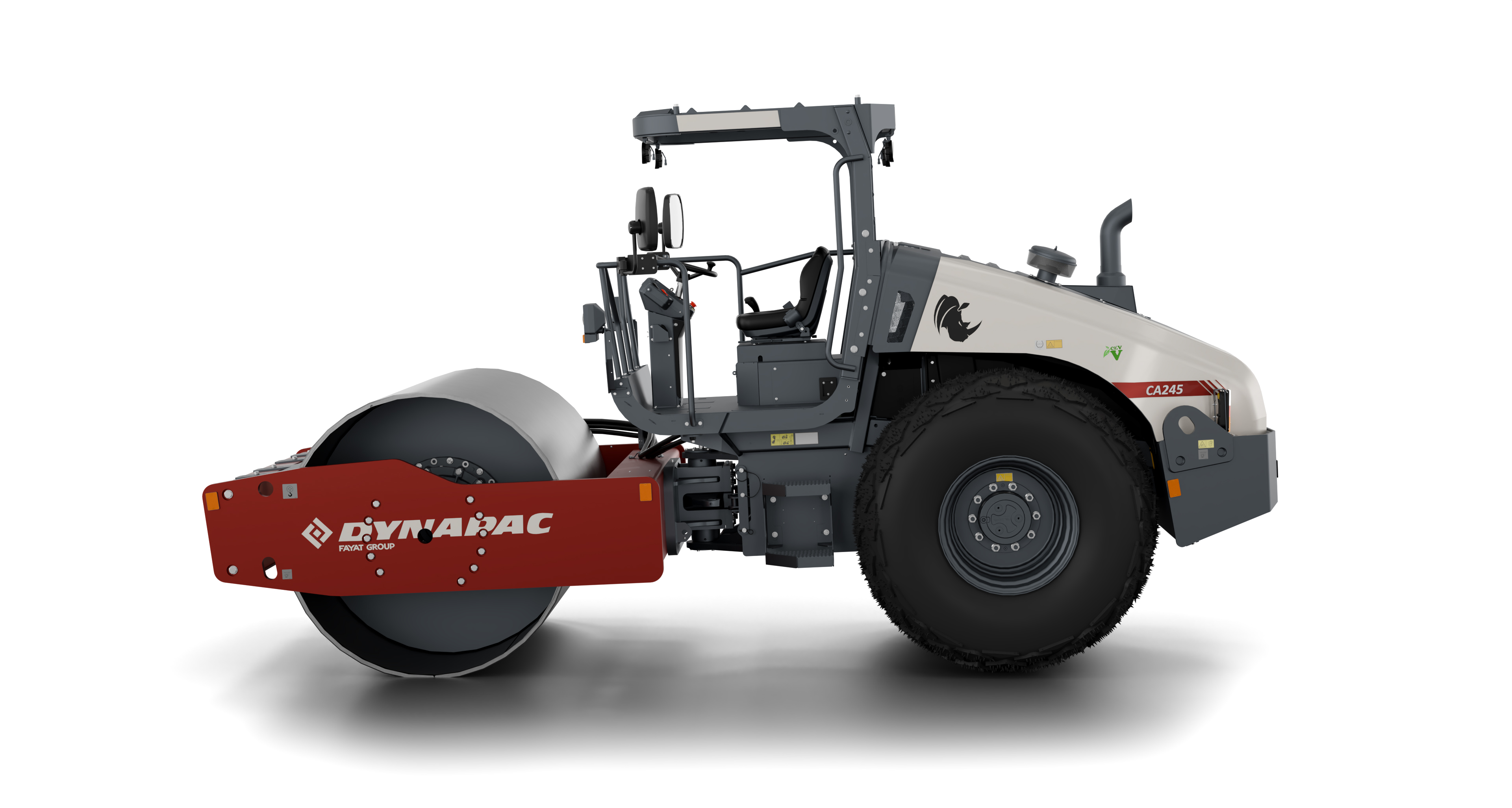

Dynapac CA245 CEV-V Single drum vibratory rollers

My comparison

Experience
Pictures

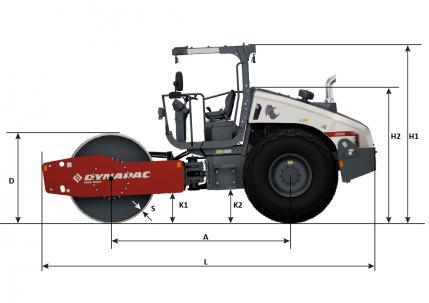

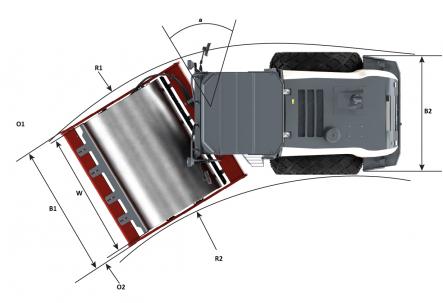

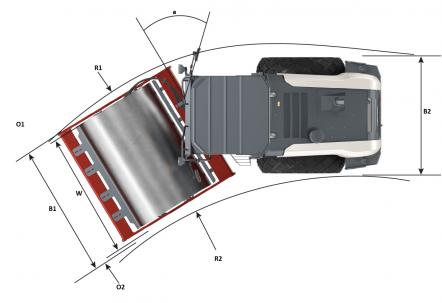

Dimensions

A. Wheelbase	2990 mm
B1. Width, front	2260 mm
B2. Width, rear	2130 mm
D. Drum diameter	1500 mm
H. Height, with ROPS/cab	2977 mm
K1. Ground clearance	470 mm
K2. Curb clearance	460 mm
L. Length	5600 mm
O1. Overhang, right	65 mm
O2. Overhang, left	65 mm
R1. Turning radius, outside
R2. Turning radius, inside	3385 mm
S. Drum shell thickness	20 mm
W. Drum width	2130 mm
α. Steering angle	±38

The CA30D is a vibratory roller designed for compaction operations in pipe trenches, on road shoulders and in cramped spaces in connection with refilling work. The roller is also suitable for repair work on dams, power stations, parking lots and airfields. The smooth drum version with drum drive (D) gives good maneuverability even on very steep slopes.

Operating Mass: 9,700 kg

Static linear load: 25.5 kg/cm

Compaction width: 2,130 mm

Features & benefits

Dyn@Link

A tool to monitor and control their machine fleet efficiently and conveniently.

Efficiency Eccentrics

‘Efficiency Eccentrics’ save energy and fuel in Dynapac rollers!

Technical data

Masses
Operating mass (incl. ROPS)	9,700 kg
Module mass (front/rear)	5440/4260 kg (ROPS)
Max. operating mass	9,700 kg
Traction
Speed range	0-5.5 km/h (working) 0-11 Km/h (travel)
Tyre size (8 ply)	23.1-26 TL
Vertical oscillation	±9º
Max. gradeability	29 %
Alternative Engine
Manufacturer/Model	KOEL
Type	Water cooled
Rated power, SAE J1995	74.5HP @2200 rpm
Fuel tank capacity	280 l
Emission stage	CEV-V
Hydraulic system
Driving	Hydrostatic
Vibration	Hydrostatic
Steering	Hydrostatic
Service brake	Hydrostatic in forward and reverse lever.
Parking/Emergency brake	Failsafe multidisc brake in rear axle and front drum motor.

Operations & maintenance manuals

Please Log in or Register to MyDynapac to get access.

Equipment (Standard and options)

Standard

■ Adjustable seat
■ Back up alarm
■ Dual amplitudes
■ Dual speed rear axle & Drum
■ Driving lights
■ Working lights
■ Emergency stop
■ Hour meter
■ Lockable instrument panel cover
■ Rear view mirrors(External & Internal)
■ Safety belt
■ ROPS platform
■ USB mobile charger
■ Mobile holder
■ Water bottle holder
■ Horn
■ Front scraper(Bottom)

Optional

■ Compaction meter Field kit
■ Dyn@link Basic field kit
■ Dyn@link Basic factory fitted
■ Rotating beacon field kit
■ Rotating beacon factory fitted
■ Front Working lights
■ Rear scraper
■ Sunshade
■ Sunvisor

Compaction data

LEVEL II
