Dynapac CA305D CEV-V Single drum vibratory rollers

My comparison

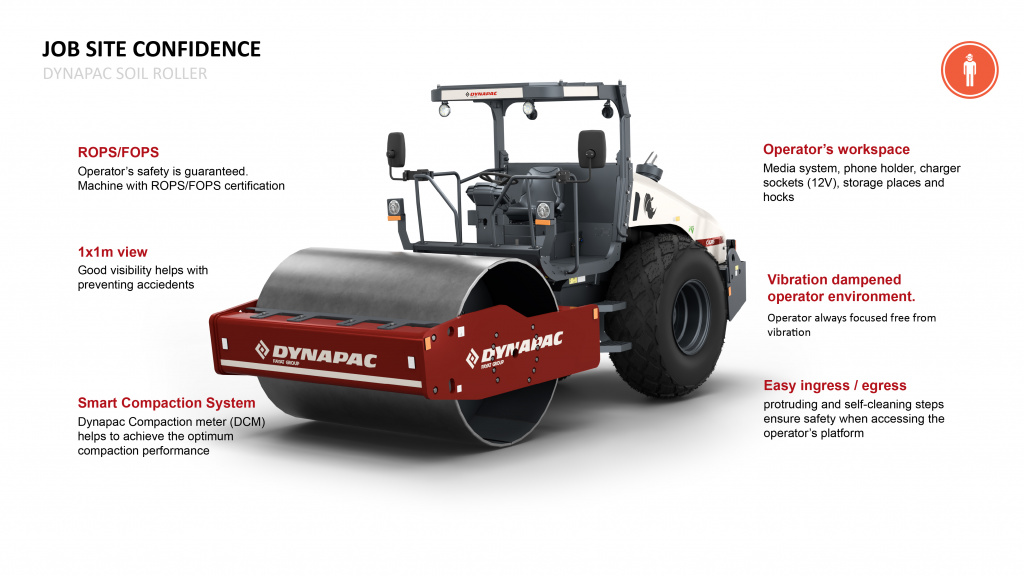

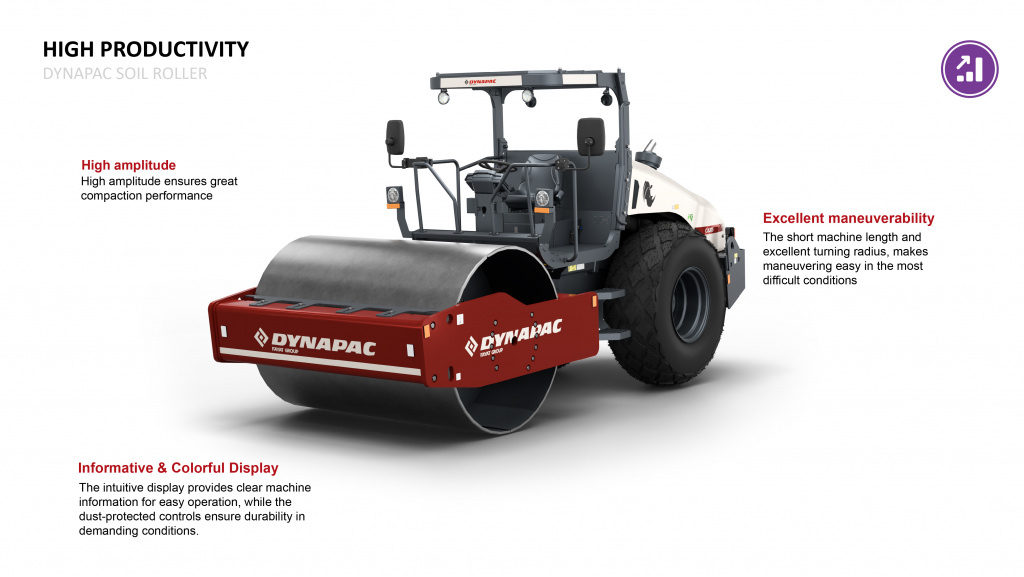

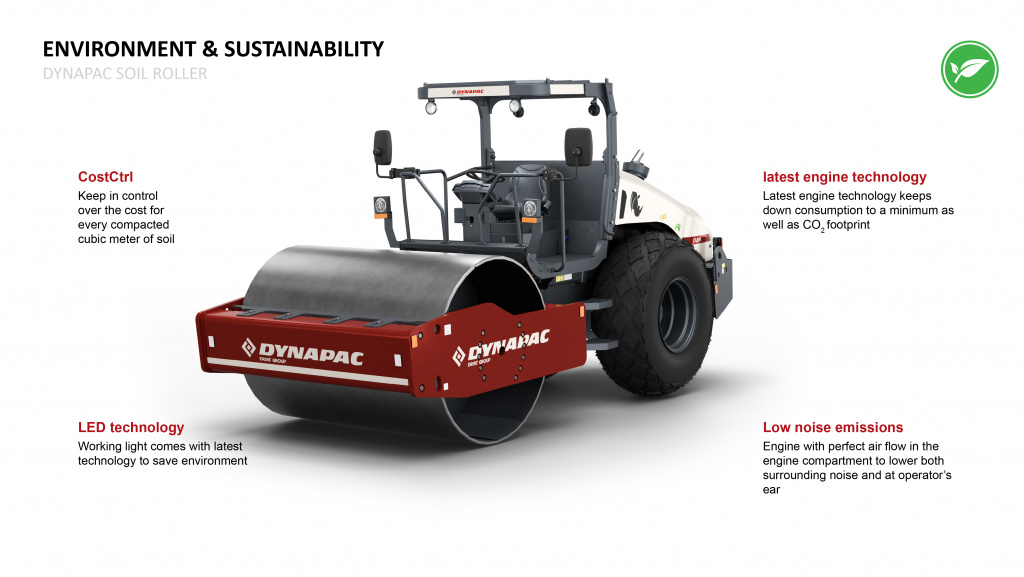

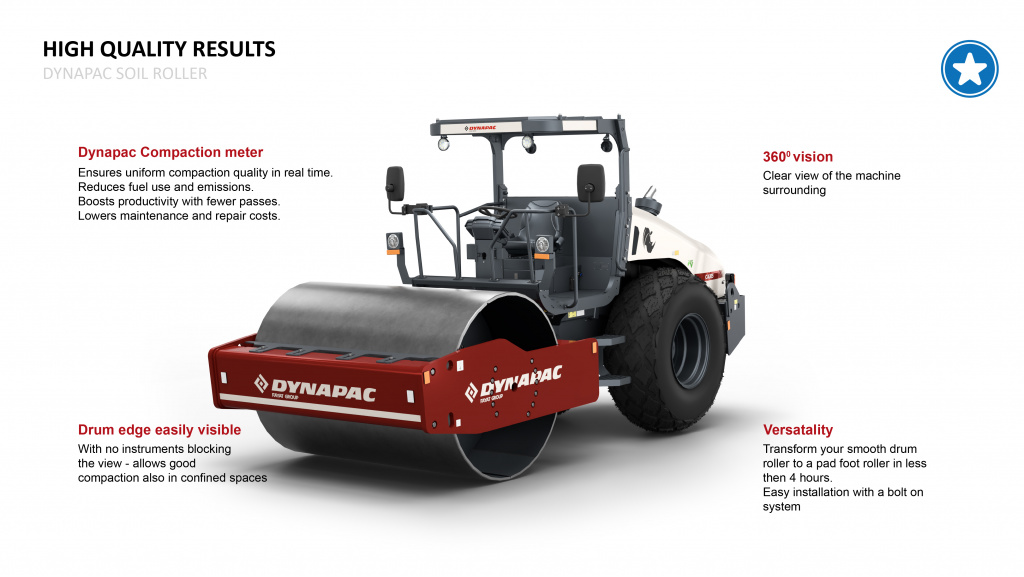

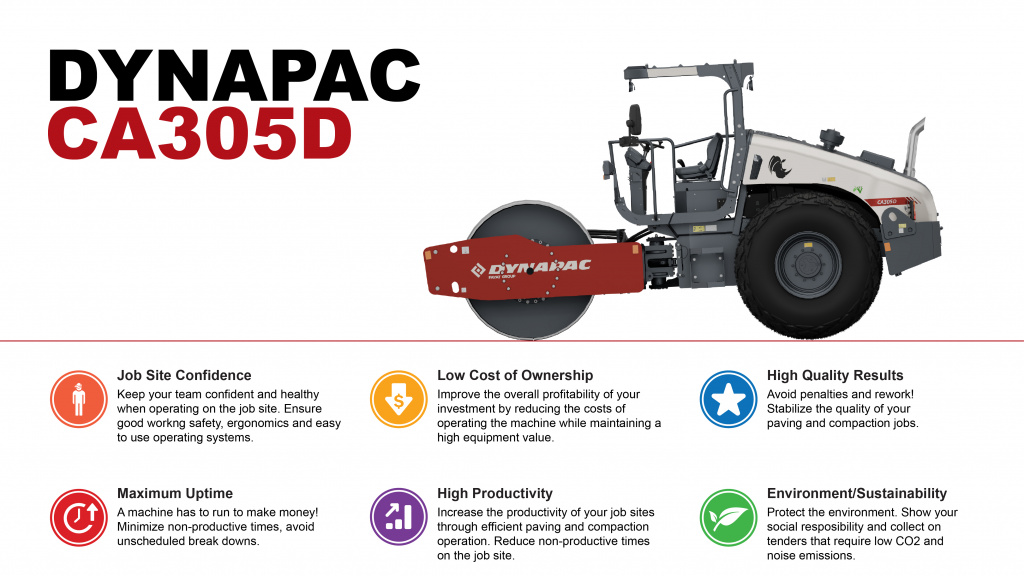

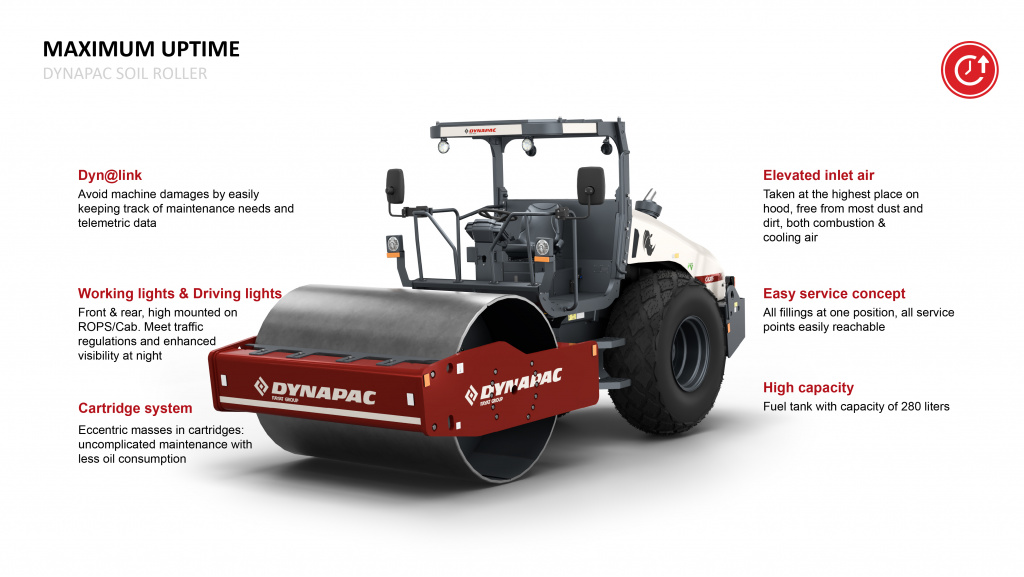

Experience
Pictures
Dimensions

Blueprint side view Dynapac CA305D CEV-V

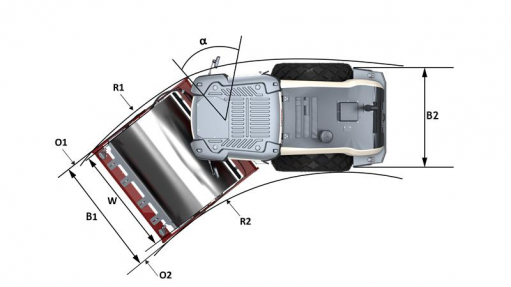

A. Wheelbase	2990 mm
B1. Width, front	2260 mm
B2. Width, rear
D. Drum diameter	1500 mm
H1. Height, with ROPS/cab	2977 mm
K1. Ground clearance	520 mm
K2. Curb clearance	460 mm
L. Length	5600 mm
O1. Overhang, right	65 mm
O2. Overhang, left	65 mm
R1. Turning radius, outside	5515 mm
R2. Turning radius, inside	3385 mm
S. Drum shell thickness	25 mm
W. Drum width	2130 mm
α. Steering angle	±38

The CA30D is a vibratory roller designed for compaction operations in pipe trenches, on road shoulders and in cramped spaces in connection with refilling work. The roller is also suitable for repair work on dams, power stations, parking lots and airfields. The smooth drum version with drum drive (D) gives good maneuverability even on very steep slopes.

Operating Mass: 11,000 kg

Static linear load: 30.0 kg/cm

Compaction width: 2,130 mm

Features & benefits

Dyn@Link

A tool to monitor and control their machine fleet efficiently and conveniently.

Efficiency Eccentrics

‘Efficiency Eccentrics’ save energy and fuel in Dynapac rollers!

Technical data

Masses
Operating mass (incl. ROPS)	11,000 kg
Module mass (front/rear)	6300/4700 kg (ROPS)
Max. operating mass	12,600 kg
Traction
Speed range	0-5.5 km/h (working) 0-11 Km/h (travel)
Tyre size (8 ply)	23.1-26 TL
Vertical oscillation	±9º
Max. gradeability	53 %
Alternative Engine
Manufacturer/Model	KOEL
Type	Water cooled
Rated power, SAE J1995	110HP@ 2200 rpm
Fuel tank capacity	280 l
Emission stage	CEV-V
Hydraulic system
Driving	Hydrostatic
Vibration	Hydrostatic
Steering	Hydrostatic
Service brake	Hydrostatic in forward and reverse lever.
Parking/Emergency brake	Failsafe multidisc brake in rear axle and front drum motor.

Operations & maintenance manuals

Please Log in or Register to MyDynapac to get access.

Service Kits

Eccentric shaft kit

Category	Subcategory	P/N	Additional info
	Double drum vibratory rollers	4700938908

Service kit , 1000H

Subcategory	P/N	Additional info
Double drum vibratory rollers	4812161680	CC1200 VI (26 kW) (IIIA)
Double drum vibratory rollers	4812161681	CC1200 VI (26 kW) (IIIA) Plus kits
Double drum vibratory rollers	4812161680	CC1200 VI (18,5 kW) (T4)
Double drum vibratory rollers	4812161681	CC1200 VI (18,5 kW) (T4) Plus kits
Double drum vibratory rollers	4812161686	CC1200 VI (28 kW) (T4)
Double drum vibratory rollers	4812161687	CC1200 VI (28 kW) (T4) Plus kit

Service kit , 250H

Subcategory	P/N	Additional info
Double drum vibratory rollers	4812160462	CC1200 VI (26 kW) (IIIA)
Double drum vibratory rollers	4812161677	CC1200 VI (26 kW) (IIIA) Plus kits
Double drum vibratory rollers	4812160462	CC1200 VI (18,5 kW) (T4)
Double drum vibratory rollers	4812161677	CC1200 VI (18,5 kW) (T4) Plus kits
Double drum vibratory rollers	4812160462	CC1200 VI (28 kW) (T4)

Service kit , 500H

Subcategory	P/N	Additional info
Double drum vibratory rollers	4812161678	CC1200 VI (26 kW) (IIIA)
Double drum vibratory rollers	4812161679	CC1200 VI (26 kW) (IIIA) Plus kits
Double drum vibratory rollers	4812161678	CC1200 VI (18,5 kW) (T4)
Double drum vibratory rollers	4812161679	CC1200 VI (18,5 kW) (T4) Plus kits
Double drum vibratory rollers	4812161685	CC1200 VI (28 kW) (T4)

Service kit , 50H

Subcategory	P/N	Additional info
Double drum vibratory rollers	4812161674	CC1200 VI (26 kW) (IIIA)
Double drum vibratory rollers	4812161675	CC1200 VI (26 kW) (IIIA) Plus kits
Double drum vibratory rollers	4812161674	CC1200 VI (18,5 kW) (T4)
Double drum vibratory rollers	4812161675	CC1200 VI (18,5 kW) (T4) Plus kits
Double drum vibratory rollers	4812161674	CC1200 VI (28 kW) (T4)

Service kit , 750H

Subcategory	P/N	Additional info
Double drum vibratory rollers	4812160462	CC1200 VI (26 kW) (IIIA)
Double drum vibratory rollers	4812161677	CC1200 VI (26 kW) (IIIA) Plus kits
Double drum vibratory rollers	4812160462	CC1200 VI (18,5 kW) (T4)
Double drum vibratory rollers	4812161677	CC1200 VI (18,5 kW) (T4) Plus kits
Double drum vibratory rollers	4812160462	CC1200 VI (28 kW) (T4)

Equipment (Standard and options)

Standard

■ Adjustable seat
■ Back up alarm
■ Dual amplitudes
■ Dual speed rear axle & Drum
■ Driving lights
■ Working lights
■ Emergency stop
■ Hour meter
■ Lockable instrument panel cover
■ Rear view mirrors(External & Internal)
■ Safety belt
■ ROPS platform
■ USB mobile charger
■ Mobile holder
■ Water bottle holder
■ Horn
■ Front scraper(Bottom)
■ Rear Scraper(Bottom)

Optional

■ Compaction meter Field kit
■ Dyn@link Basic field kit
■ Dyn@link Basic factory fitted
■ Rotating beacon field kit
■ Rotating beacon factory fitted
■ Sunshade
■ Sunvisor

Compaction data

LEVEL II
