Dynapac CA405D CEV-V Single drum vibratory rollers

My comparison

Experience
Pictures
Dimensions

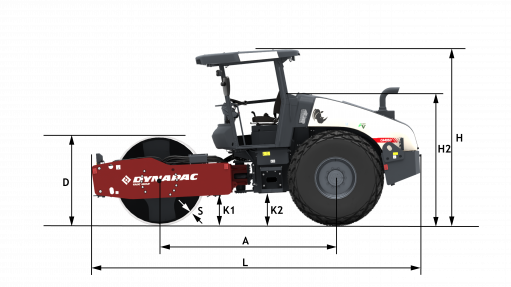

Blueprint side view Dynapac CA405D CEV-V

A. Wheelbase	2990 mm
B1. Width, front	2300 mm
B2. Width, rear	2130 mm
D. Drum diameter	1543 mm
H1. Height, with ROPS/cab	2977 mm
K1. Ground clearance	520 mm
K2. Curb clearance	460 mm
L. Length	5600 mm
O1. Overhang, right	87 mm
O2. Overhang, left	87 mm
R1. Turning radius, outside	5515 mm
R2. Turning radius, inside	3385 mm
S. Drum shell thickness	35 mm
W. Drum width	2130 mm
α. Steering angle	±38°

The CA30D is a vibratory roller designed for compaction operations in pipe trenches, on road shoulders and in cramped spaces in connection with refilling work. The roller is also suitable for repair work on dams, power stations, parking lots and airfields. The smooth drum version with drum drive (D) gives good maneuverability even on very steep slopes.

Operating Mass: 13,840 kg

Static linear load: 40.3 kg/cm

Compaction width: 2,130 mm

Features & benefits

Dyn@Link

A tool to monitor and control their machine fleet efficiently and conveniently.

Efficiency Eccentrics

‘Efficiency Eccentrics’ save energy and fuel in Dynapac rollers!

Technical data

Masses
Operating mass (incl. ROPS)	13,840 kg
Operating mass (incl. Cab)	13,960 kg
Module mass (front/rear)	8580/5260 kg (ROPS)
Max. operating mass	13,960 kg
Traction
Speed range	4.4/6.2/6.3/10.8 kmph
Tyre size (8 ply)	23.1-26 TL
Vertical oscillation	±9º
Max. gradeability	50 %
Alternative Engine
Manufacturer/Model	Cummins
Type	Water cooled
Rated power, SAE J1995	121 HP @ 2200 rpm
Fuel tank capacity	280 l
Emission stage	CEV-V
Hydraulic system
Driving	Hydrostatic
Vibration	Hydrostatic
Steering	Hydrostatic
Service brake	Hydrostatic in forward and reverse lever.
Parking/Emergency brake	Failsafe multidisc brake in rear axle and front drum motor.

Operations & maintenance manuals

Please Log in or Register to MyDynapac to get access.

Equipment (Standard and options)

Standard

■ Adjustable seat
■ Back up alarm
■ Dual amplitudes
■ Dual speed rear axle & Drum
■ Driving lights
■ Working lights
■ Emergency stop
■ Hour meter
■ Lockable instrument panel cover
■ Rear view mirrors(External & Internal)
■ Safety belt
■ USB mobile charger
■ Mobile holder
■ Water bottle holder
■ Horn
■ Front scraper(Bottom)
■ Rear Scraper(Bottom)

Optional

■ Compaction meter Field kit
■ Dyn@link Basic field kit
■ Dyn@link Basic factory fitted
■ Rotating beacon field kit
■ Rotating beacon factory fitted
■ Fender - Field kit

Compaction data

LEVEL II
