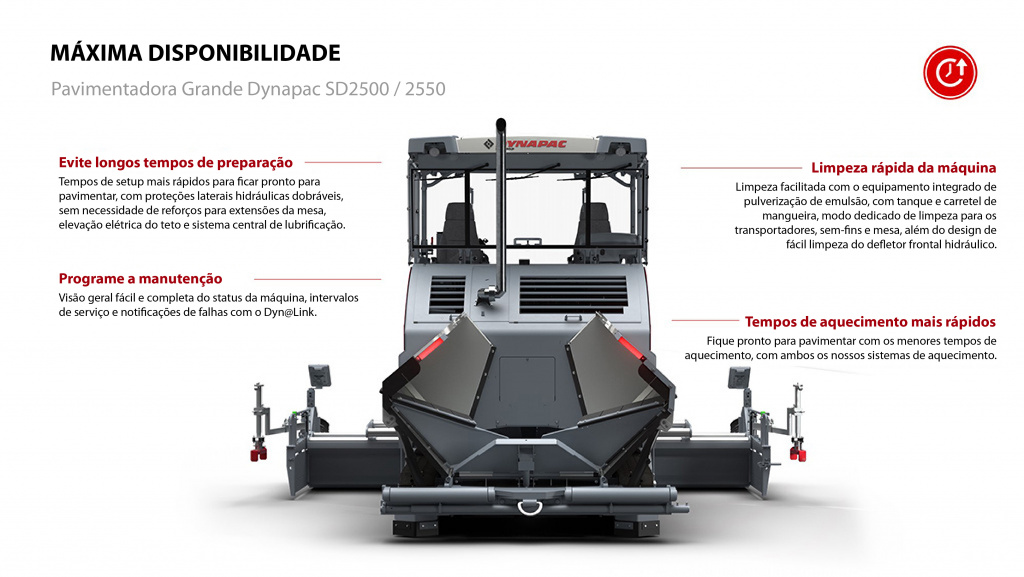

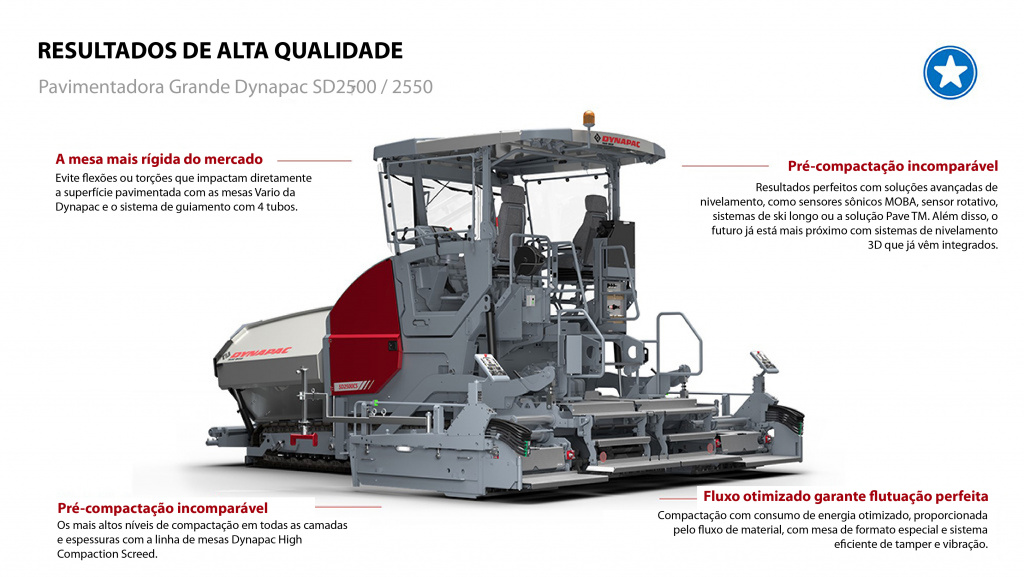

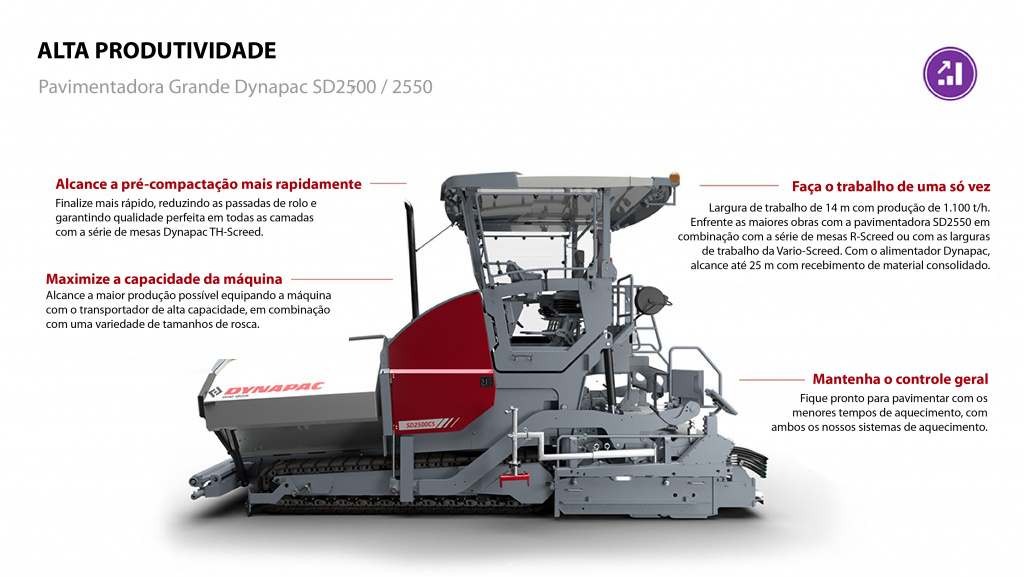

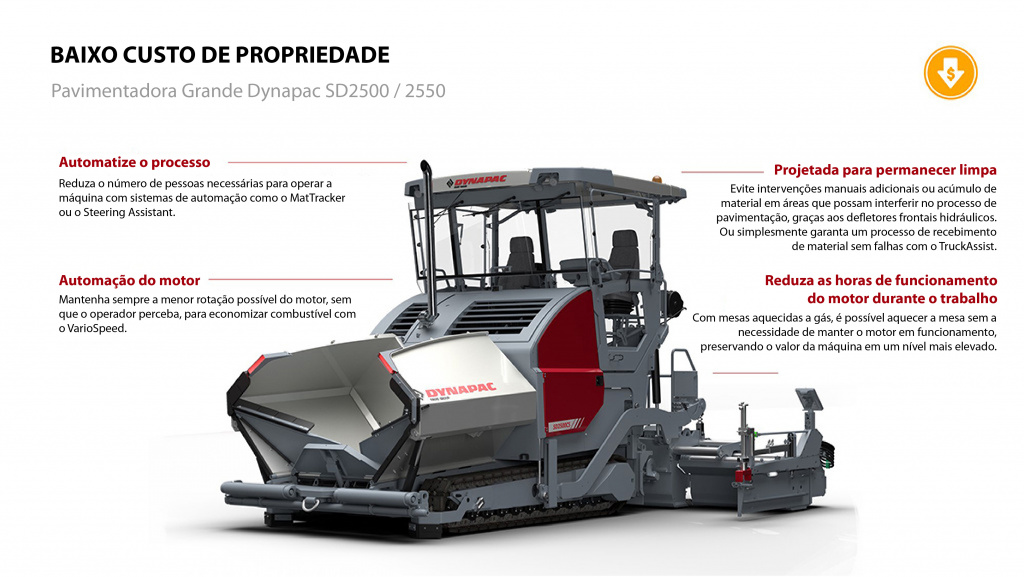

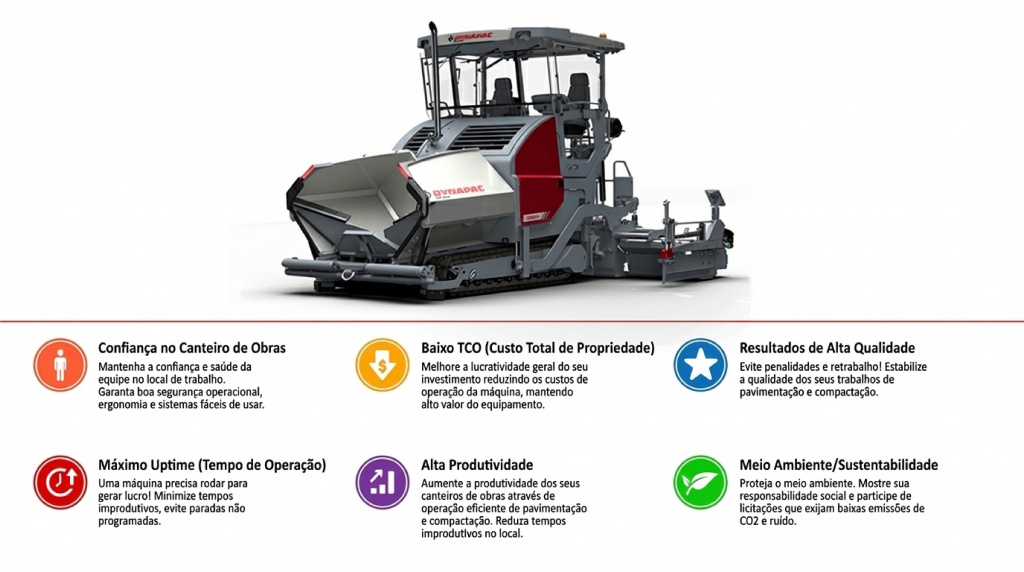

Dynapac SD2550CS

Dynapac SD2550CS Large pavers

  • Experience
  • Imagem
  • Dimensões
A. Axle track 3.36 m
B1. Width, max. 3.47 m
B2. Width, standard 2.55 m
B3. Largura, entre esteiras 1.99 m
C1. Largura da sapata 0.32 m
H1. Altura, máx. 3.90 m
H2. Altura, transporte 3.10 m
H3. Altura 0.46 m
L1. Comprimento 6.63 m
L3. Comprimento, silo 2.60 m
Discontinued false
Let us introduce a new generation of Dynapac pavers. They combine decades of paving experience with the latest technology. The result: superior performance to get you into pole position.
Largura básica de pavimentação: 2.550 mm
Esp. Máx. Pavimentação: 14 mm
Espes. Máx. Camada: 360 mm
Capac. Teór. de Descarga: 1.100 t/h

Características e Benefícios

Dynapac Dyn@Link
Dyn@Link

A tool to monitor and control their machine fleet efficiently and conveniently.


Dynapac Eco mode
Eco mode

Big fuel savings with ECO!


Dynapac Stage V / TIER 4f
Stage V / TIER 4f

Any Dynapac product equipped with a Stage IV engine, is not only compliant with the latest emission stage but is also contributing to great fuel cost savings.


Dynapac Vario speed
Vario speed

Vario speed details here

Características técnicas

Pesos
Peso (incl. mesa standard) 20 t
Tração
Velocidade de pavimentação máxima 1.680 m/s
Velocidade de transporte 1,1 m/s
Motor
Fabricante/Modelo Cummins QSB6.7-C260
Emissões EU Stage IIIA
Potência nominal, SAE J1995 194 kW @ 2200 rpm
Sistema elétrico 24 V
Tanque de combustível 320 litros
Motor Alternativo
Fabricante/Modelo Cummins QSB6.7-C260
Emissões EU Stage V / US EPA t4f
Potência nominal, SAE J1995 194 kW @ 2200 rpm
DEF tank capacity 37 litros
Sistema elétrico 24 V
Tanque de combustível 353 litros
Transportadora
Tipo Dual bar feeder
Controle Automatic with limit switches
Largura 2x 655 mm

Argumentos de vendas

  • Intuitive PaveManager 2.0 user interface
  • Integrated advanced leveling solutions
  • Big hopper volume
  • Perfect overview with slidable cabin
  • Increased traction due to longer tracks
