Dynapac CP150 • Dynapac

Dynapac CP150 Pneumatic tire rollers

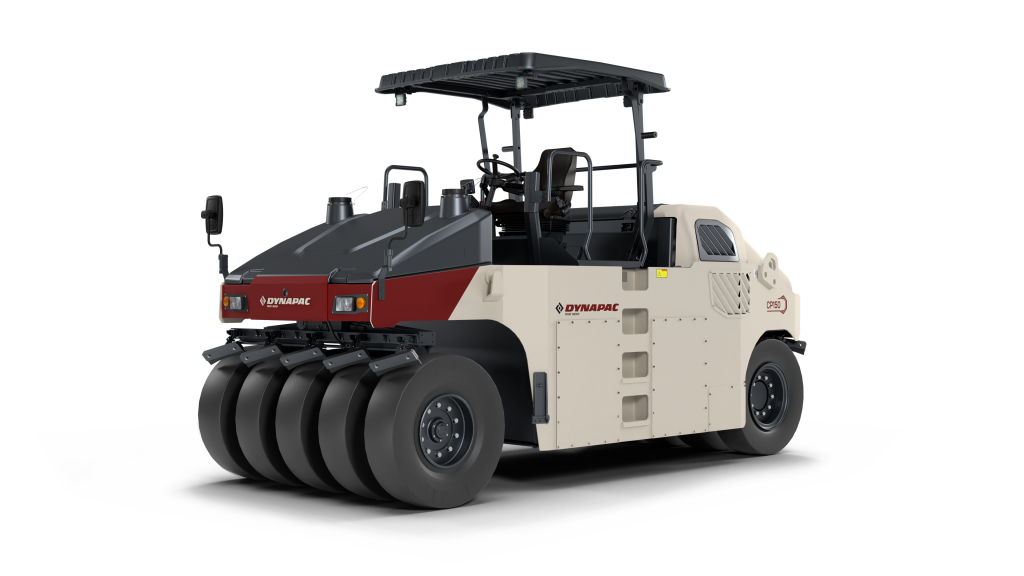

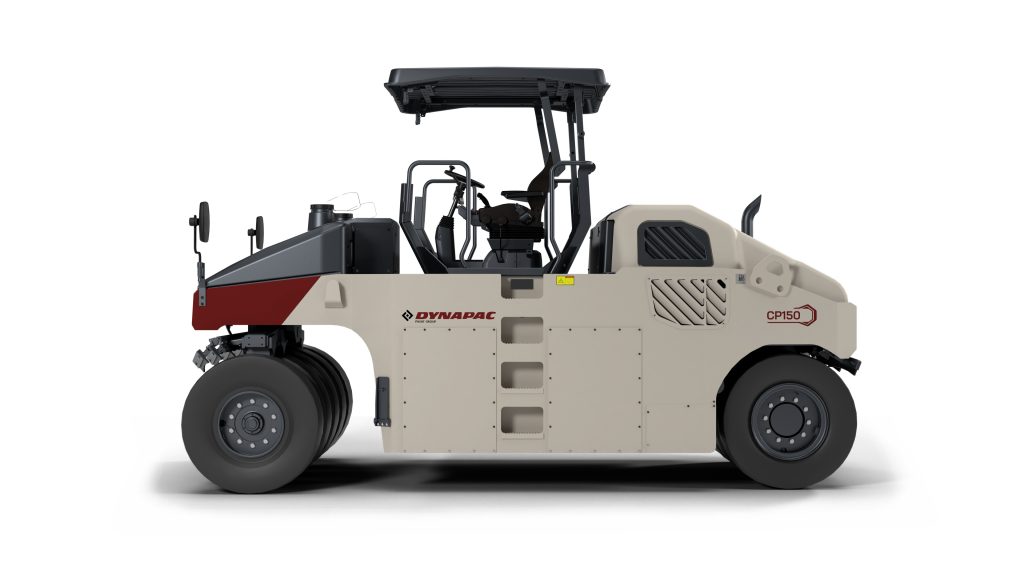

Pictures

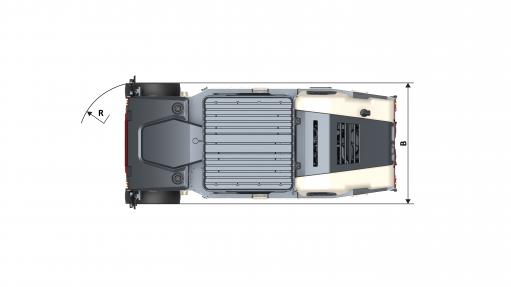

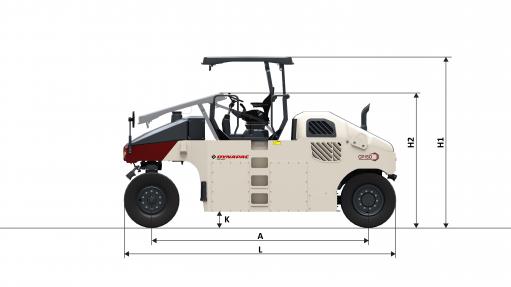

Dimensions

A. Wheelbase	4,100 mm
B. Width, with symmetric cab
B1. Width, with assymetric cab
B1. Width, with assymmetric cab
B2. Width, with symmetric cab
B. Width	2,250 mm
H1. Height, w/o ROPS/Cab
H2. Height, with folded canopy	2,550 mm
H2. Height, with ROPS/Cab
H3. Height max. with ROPS/Cab
K. Ground clearance	300 mm
L. Length	5,150 mm
O. Overlap
O1. Overhang, right
O2. Overhang, left
R. Turning radius, outside	9,000 mm
H1. Height, with canopy/cab	3,250 mm
W. Drum width	2250 mm

Operating Mass: 10600 kg

Static linear load: N/A

Compaction width: 2250 mm

Technical data

Masses
Operating mass	10600 kg
Operating mass (incl. Cab)	10,600 kg
Mass with max ballast (Cab)	15,600 kg
Operating mass (incl. Canopy)	10,000 kg
Mass with max ballast (Canopy)	15,000 kg
Operating mass (ROPS & FOPS)	10,370 kg
Mass with max ballast (ROPS & FOPS)	15,370 kg
Traction
Speed low	km/h
Working speed	0 - 7 km/h
Speed high	17 km/h
Max. theoretical gradeability	30 %
Engine / Drive
Manufacturer	Cummins
Model	4BTAA3.9-C110 (Tier2)
Rated power, SAE J1995	82 kw (110 hp) @ 2,200 rpm
Type	Watercooled Turbo Diesel
Fuel tank capacity	220 l
Electrical system	24 V
Alternative Engine
Manufacturer	Cummins
Model	QSB3.9-C110 (Stage IIIA / Tier 3)
Rated power, SAE J1995	81 kw (110 hp) @ 2,200 rpm
Type	Watercooled Turbo Diesel
Electrical system	24 V
Fuel tank capacity	220 l
Alternative Engine
Fuel tank capacity
Hydraulic system
Driving	Axial piston pump with variable displacement Axial pistion motor (1) with variable displacement
Steering	Hydrostatic
Service brake	Hydrostatic
Parking brake	Falisafe multidisc brake in rear axle

Sales arguments

More uniform compaction and great surface finishing
Powerful and reliable drive capability
Optimal working visibility
Optimized ergonomic design
Grouped service points

Equipment (Standard and options)

Standard

■ Arm Rests
■ Back-up Alarm
■ Ballast water drainage
■ Battery Switch
■ Emergency Stop
■ Floor mat (for Cab & ROPS)
■ Fuel level gauge
■ Fuel tank drainage
■ Hood lockable
■ Horn
■ Hour Meter
■ Hydraulic check-points
■ Interlock
■ Lifting and tiedown points
■ Cab with ROPS/FOPS certified
■ Mirrors, rear view
■ Operator’s seat, suspension
■ Operator’s station, slide
■ Tilt Tyres – front suspension
■ Parking Brake
■ Pressurized Sprinkler System
■ Scrapers
■ Speedometer
■ Sprinkler Timer
■ USB charger for Cab & ROPS
■ Working Lights, LED x 8
■ User instructions, one set
■ Rotating Beacon
■ Seat Belt, 2”
■ Tool Set

Optional

■ Air on the run
■ Asphalt temperature meter
■ Cocoa mats
■ Driving Lights, LH
■ Oil spray system
■ Heat Skirts
■ Radio MP3 and Bluetooth
■ Sprinkler Pump, back up
■ 12 V Socket for Cab & ROPS

Compaction data
