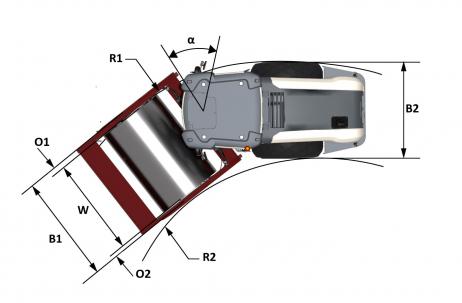

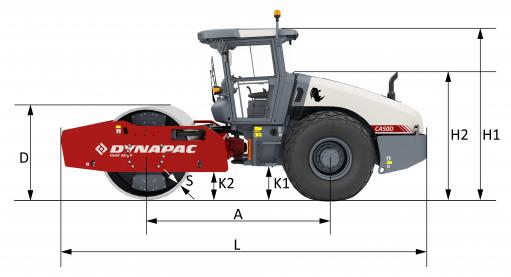

| A. Wheelbase | 3,100 mm |
|---|---|
| B1. Width, front | 2,360 mm |
| B2. Width, rear | 2,130 mm |
| D. Drum diameter | 1,573 mm |
| H1. Height, with ROPS/cab | 2,900 mm |
| H2. Height, w/o ROPS/cab | 2,145 mm |
| K1. Ground clearance | 470 mm |
| K2. Curb clearance | 500 mm |
| L. Length | 6,236 mm |
| O1. Overhang, right | 130 mm |
| O2. Overhang, left | 100 mm |
| R1. Turning radius, outside | 5,630 mm |
| R2. Turning radius, inside | 3,500 mm |
| S. Drum shell thickness | 40 mm |
| W. Drum width | 2,130 mm |
| α. Steering angle | ±38° |
| Masses | |
| Operating mass (incl. ROPS) | 15,310 kg |
|---|---|
| Operating mass (incl. Cab) | 15,450 kg |
| Max mass (incl. ROPS) | 16,950 kg |
| Max mass (incl. Cab) | 16,950 kg |
| Moudle mass front / rear (incl. ROPS) | 10,560 kg / 4,750 kg |
| Module mass front / rear (incl. Cab) | 10,560 kg / 4,890 kg |
| Shell pad kit mass | 1567 kg |
| Operating mass (incl. ROPS) | 15310 kg |
| Traction | |
| Speed range (Traction Control) | 4/5/6/11 km/h |
| Tyre size | 23.1x26 |
| Max. theoretical gradeability, traction control | 46 % |
| Vertical oscillation | ±9° |
| Engine / Drive | |
| Manufacturer / Model | CUMMINS 4BTAA3.9 II/T2 |
| Type | Water cooled turbo Diesel |
| Rated power, SAE J1995 | 97kW@2500rpm |
| Fuel tank capacity | 320 l |
| Alternative Engine | |
| Manufacturer / Model | CUMMINS QSB3.9 IIIA/T3 |
| Type | Water cooled turbo Diesel |
| Rated power, SAE J1995 | 103kW@2500rpm |
| Fuel tank capacity | 320 l |
| Hydraulic system | |
| Driving | Axial piston pump with variable displacement.Axial piston motors with variable displacement. |
| Vibration | Axial piston pump with variable displacement.Axial piston motors with constant displacement. |
| Steering | Gear pump with constant displacement. |
| Service brake | Hydrostatic in forward and reverse lever. |
| Parking/ Emergency brake |
Failsafe multidisc brake in drum gear box and in rear axle. |
