Dynapac CP28 • Dynapac

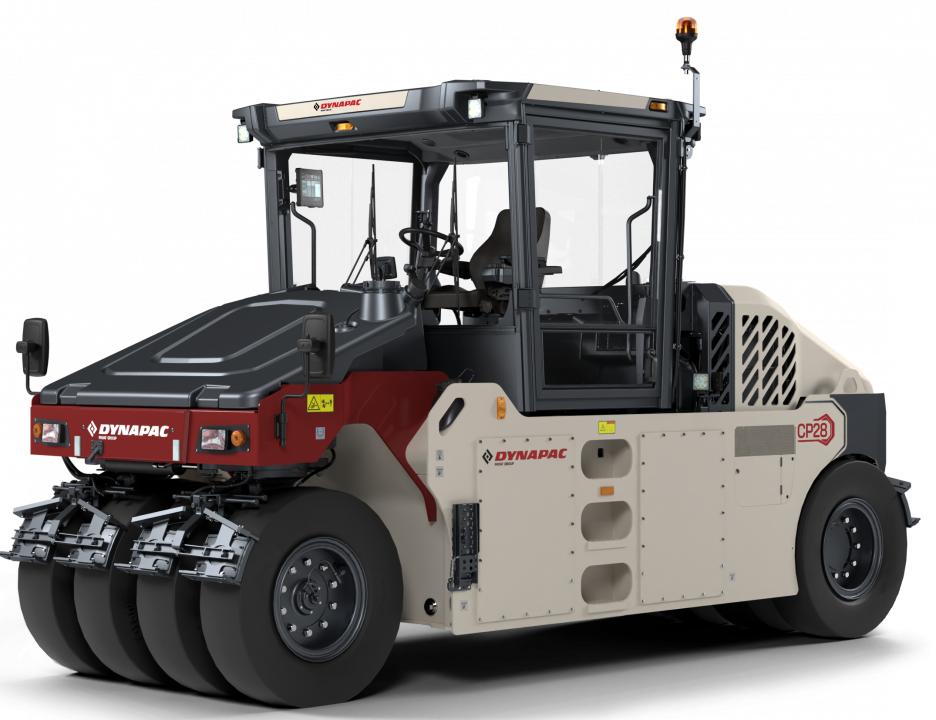

Dynapac CP28 Pneumatic tire rollers

Pictures

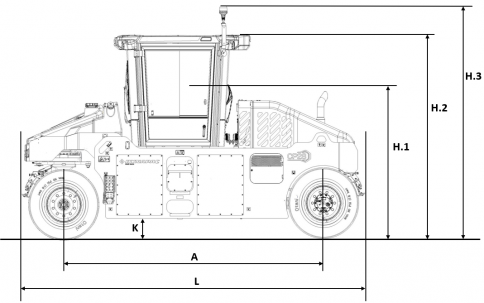

Dimensions

A. Wheelbase	3900 mm

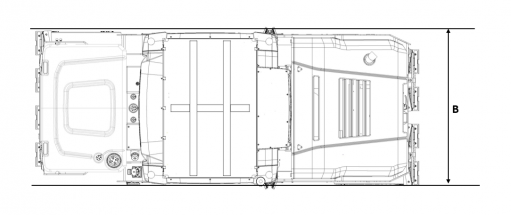

B. Width, with symmetric cab	2085 mm
B1. Width, with assymetric cab	2350 mm
B. Width
H1. Height, w/o ROPS/Cab	2330 mm
H2. Height, with folded canopy
H2. Height, with ROPS/Cab	3000 mm
H3. Height max. with ROPS/Cab	3430 mm
K. Ground clearance	270 mm
L. Length	5150 mm
O. Overlap	45 mm
O1. Overhang, right	25 mm
O2. Overhang, left	25 mm
R2. Turning radius, inside	5700 mm

Operating Mass: 9600 kg

Static linear load: N/A

Compaction width: N/A

Technical data

Masses
Operating mass (incl. ROPS)	9600 kg
Operating mass (incl. Cab)	9800 kg
Operating mass (incl. Cab)
Max. operating mass	kg
Max. operating mass
Mass with max. ballast	28000 kg
Operating mass (incl. Canopy)	kg
Mass with max ballast (Canopy)
Mass with steel ballast (Canopy)
Mass with water ballast	13000 kg
Mass with wet sand ballast	13600 kg
Traction
Working speed	m/s
Speed low	7 km/h
Speed high	20 km/h
Max. theoretical gradeability	27 %
Engine / Drive
Manufacturer	Cummins
Model	F 3.8 (Stage V/T4f)
Rated power, SAE J1995	101 kW (134 hp) @ 2.200 rpm
Type	Watercooled Turbo Diesel
Fuel tank capacity	210 l
DEF tank capacity	23 l
Electrical system	24 V with alternator of 70A
Alternative Engine
Manufacturer	Cummins
Model	QSF 4.5 (Stage IIIA/Tier3/MAR1)
Rated power, SAE J1995	97 kM (130hp) @ 2.200 rpm
Type	Watercooled Turbo Diesel
Fuel tank capacity	210 l
Alternative Engine
Fuel tank capacity
Hydraulic system
Driving	Axial piston pump with variable displacement. Axial piston motors (2) with variable displacement.
Steering	Hydrostatic
Service brake	2 multidisc brakes on rear wheels
Parking/ Emergency brake	Failsafe multidisc brakes in both gear boxes

Sales arguments

New frame design enhancing visibility

Great tire overlap

Flexible ballast system

Sliding and swivel seat

Powerful and reliable engine

Equipment (Standard and options)

Standard

■ Arm rest
■ Brake pedal
■ Back-up alarm
■ Ballast water drainage
■ Battery switch
■ Charger socket, USB A and USB C
■ Charger socket, 1x 12V
■ Charger socket, 1x 24V
■ EcoMode
■ Emergency Stop
■ Filler caps
■ Floor mat
■ Fuel level gauge
■ Fuel tank drainage
■ Hood lockable
■ Horn
■ Hour meter
■ USB charger
■ Hydraulic check-points
■ Interlock
■ Lifting and tiedown points
■ Mirrors, rear view
■ Operator's seat, suspension
■ Operator's station, slide and swivel
■ Parking brake
■ Sprinkler system
■ Sprinkler timer
■ Rotating beacon
■ Scrapers
■ Speedometer
■ Warning lights
■ Working lights, LED x4
■ Otani tires
■ Seat belt, 3"
■ Neutral start arrangement

Compaction data

LEVEL II
