Dynapac CP280 • Dynapac

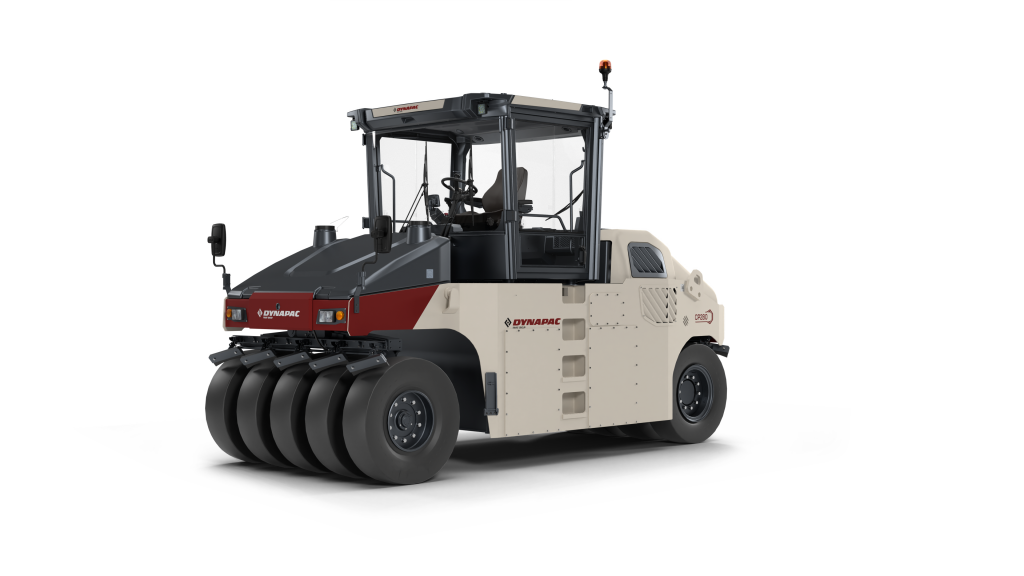

Dynapac CP280 Pneumatic tire rollers

Pictures

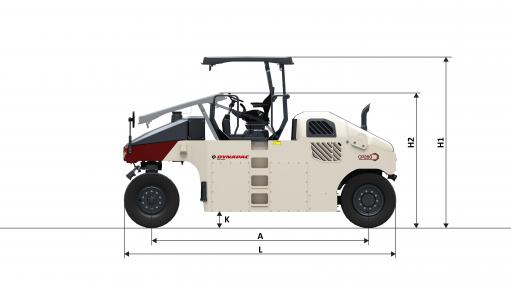

Dimensions

A. Wheelbase	4,100 mm
B. Width	2,250 mm
H1. Height, with canopy	3,250 mm
H1. Height, with ROPS/cab	3,250 mm
H2. Height, with folded canopy	2,550 mm
K. Ground clearance	300 mm
L. Length	5,150 mm
R. Turning radius, outside	9,000 mm
W. Drum width	2250 mm

Operating Mass: 10600 kg

Static linear load: N/A

Compaction width: 2250 mm

Technical data

Masses
Operating mass	10600 kg
Operating mass (Canopy)	10,600 kg
Operating mass with max ballast (Canopy)	28,000 kg
Operating mass (ROPS & FOPS)	11,000 kg
Operating mass with max ballast (ROPS & FOPS)	28,360 kg
Operating mass (Cab)	11,200 kg
Operating mass with max ballast (Cab)	28,600 kg
Traction
Working speed	0 - 7 km/h
Transport speed, max	17 km/h
Max. theoretical gradeability	24 %
Engine / Drive
Manufacturer	Cummins
Model	4BTAA3.9-C130
Rated power, SAE J1995	97 kw (130 hp) @ 2,500 rpm
Type	Watercooled Turbo Diesel
Electrical system	24 V
Fuel tank capacity	220 l
Alternative Engine
Manufacturer	Cummins
Model	QSB3.9-C130
Rated power, SAE J1995	97 kw (130 hp) @ 2,500 rpm
Type	Watercooled Turbo Diesel
Electrical system	24 V
Fuel tank capacity	220 l
Hydraulic system
Driving	Axial piston pump with variable displacement Axial piston motors (2) with variable displacement
Steering	Hydrostatic
Service brake	Hydrostatic brake and drum brake
Parking brake	Falisafe multidisc brake in gear box (2)

Sales arguments

More uniform compaction and great surface finishing
Powerful and reliable drive capability
Optimal working visibility
Optimized ergonomic design
Grouped service points

Equipment (Standard and options)

Standard

■ Arm Rests
■ Back-up Alarm
■ Ballast water drainage
■ Battery Switch
■ Emergency Stop
■ Floor mat (for Cab & ROPS)
■ Fuel level gauge
■ Fuel tank drainage
■ Hood lockable
■ Horn
■ Hour Meter
■ Hydraulic check-points
■ Interlock
■ Lifting and tiedown points
■ Cab with ROPS/FOPS certified
■ Mirrors, rear view
■ Operator’s seat, suspension
■ Operator’s station, slide
■ Tilt Tyres – front suspension
■ Parking Brake
■ Pressurized Sprinkler System
■ Scrapers
■ Speedometer
■ Sprinkler Timer
■ USB charger for Cab & ROPS
■ Working Lights, LED x 8
■ User instructions, one set
■ Rotating Beacon
■ Seat Belt, 2”
■ Tool Set

Optional

■ Air on the run
■ Driving Lights, LH
■ Sprinkler Pump, back up
■ Dyn@link Basic
■ Dyn@link Advanced
■ Driver seat protection

Compaction data

LEVEL II
