Compaction

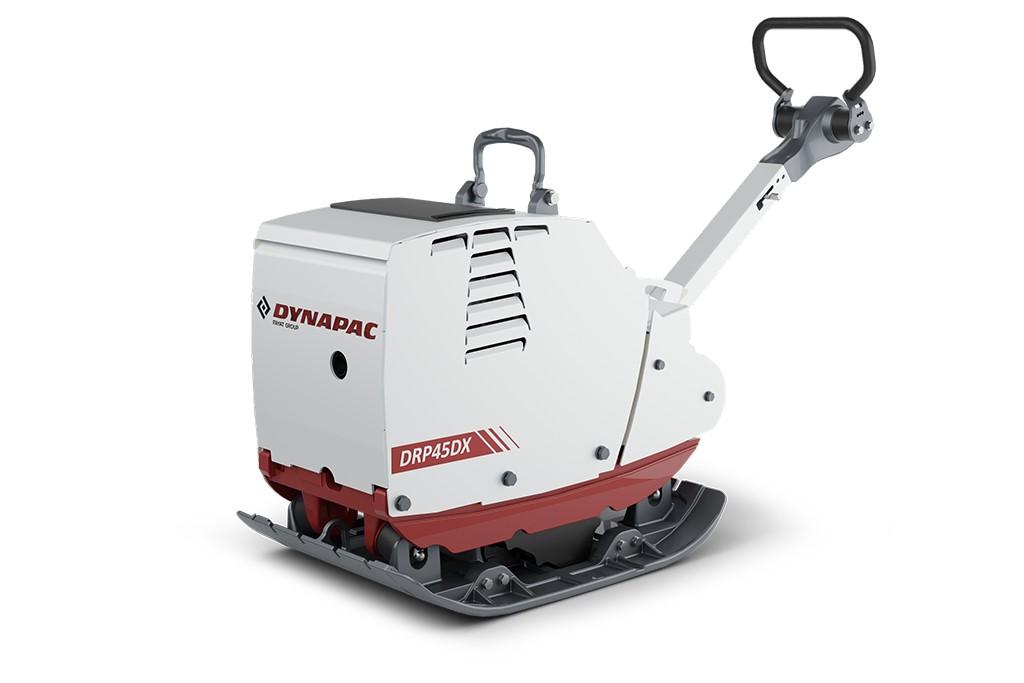

Dynapac DRP45DX Plate compactors

  • Pictures
  • Dimensions
H. Height 790 mm
H1. Height 980 mm
H1. Height, steering rod (lowered)
H2. Height 1380 mm
H2. Height, steering rod (raised)
L. Length 1700 mm
L1. Length 900 mm
W. Basic plate width 650 mm
W1. Plate width, without extensions 450 mm
W2. Plate width, with extensions 550 mm
W3. Plate width, with extensions 750 mm

Product information

Technical data

Masses
Basic mass 455 kg
Operating mass kg
Operating mass (W) 460 kg
Operating mass (W1) 440 kg
Operating mass (W2) 453 kg
Operating mass (W3) 471 kg
Traction
Speed m/min
Max. gradeability 35 %
Max. working speed 28 m/min
Compaction
Frequency 66 Hz
Centrifugal force 60 kN
Amplitude 1.96 mm
Engine
Manufacturer/Model Hatz 1B 40
Emissions according to non EPA or US T4f
Rated power hp
Type Air cooled diesel
Number of cylinders 1
Fuel consumption /h, avg. 1.5 l
Fuel tank capacity 5 l
Power 6.7 kW @ 3000 rpm

Equipment (Standard and options)

Standard


■ Durable base plate including extension (W)
■ Comfort handle control
■ Low vibration steering rod adjustable in height
■ Steering rod lock in transport and working position
■ Vibration and throttle regulation on the steering rod
■ Reverse drive protection
■ All around protection hood
■ All around protection for V-belt
■ Automatic decompression
■ Recoil starter
■ Electric starter
■ Hour meter

Optional


■ Extension plates (W2, W3)
■ Plastic mat
■ Service Kit
