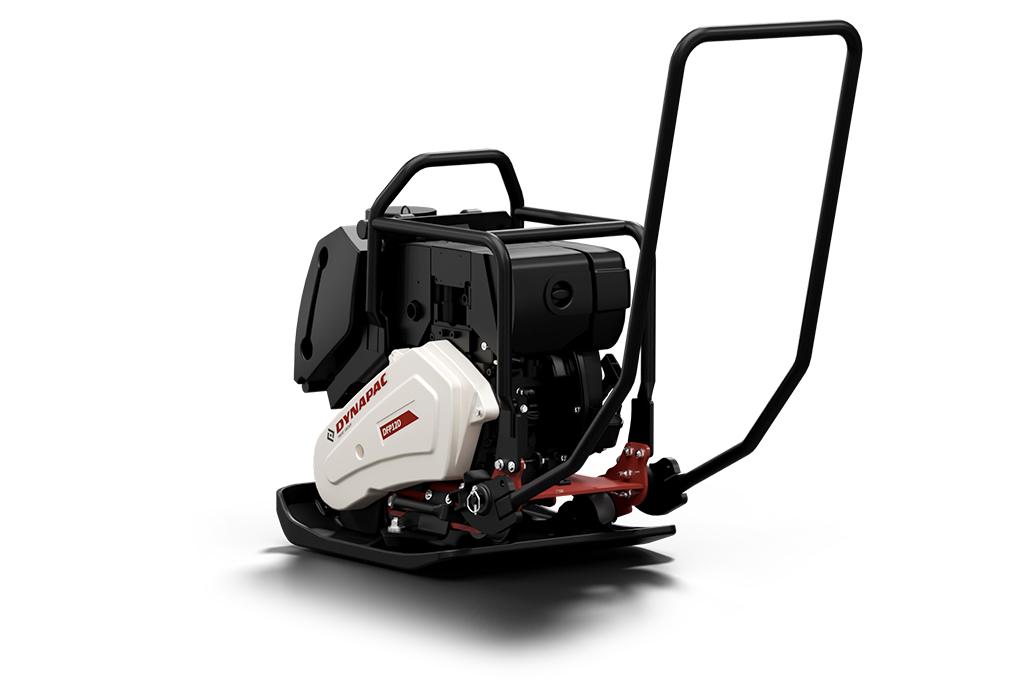

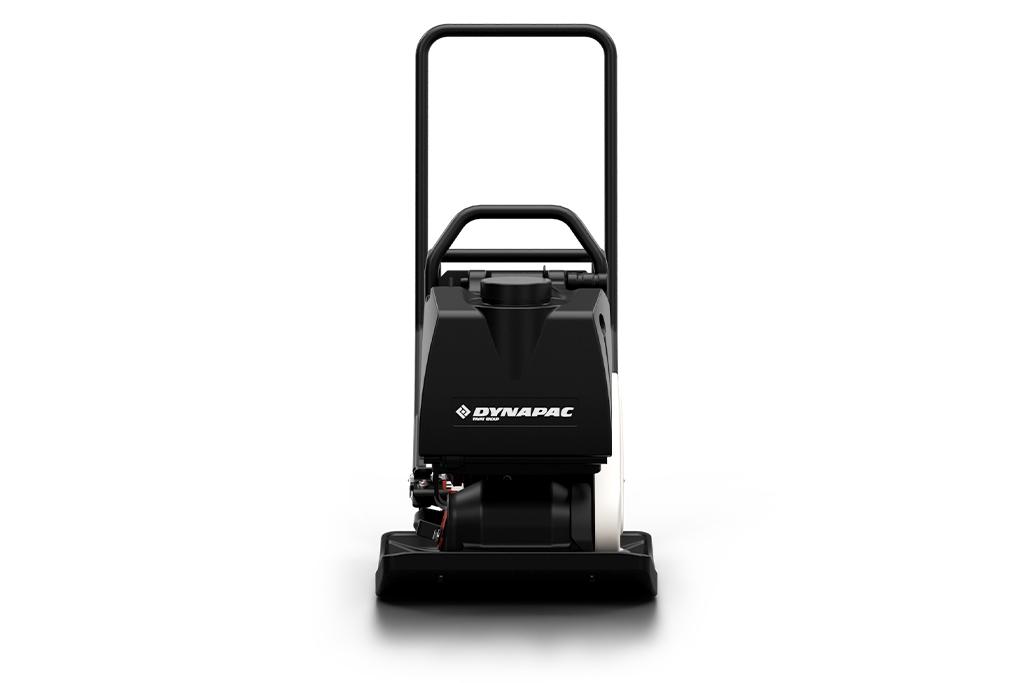

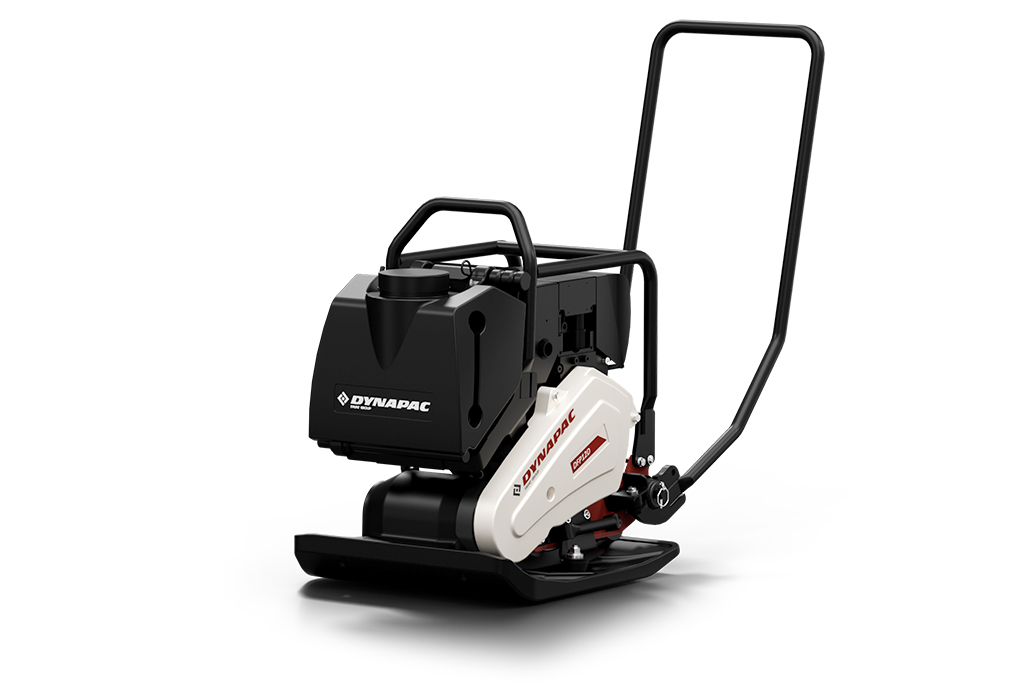

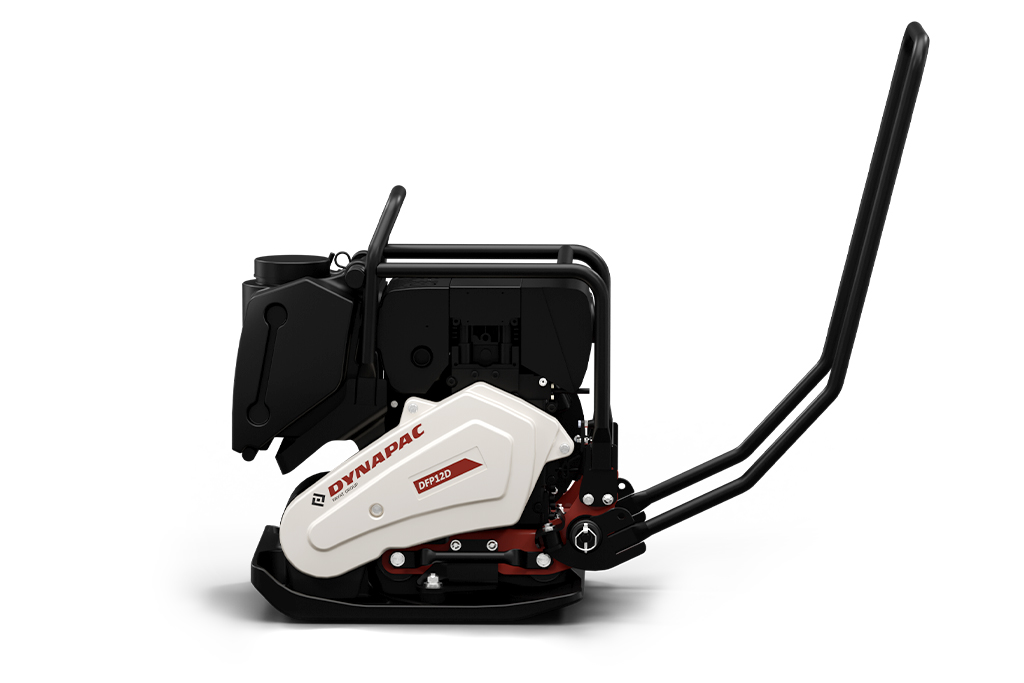

Dynapac DFP12D

Dynapac DFP12D Forward plates

  • Pictures
  • Dimensions
H. Height 708 mm
H1. Height 962 mm
H2. Height 700 mm
L. Length 1084 mm
L1. Length 542 mm
W. Basic plate width 500 mm
Operating Mass: 122 kg
Compaction Width: 500 mm
Manufacturer / Model: Hatz 1B 20

Technical data

Masses
Basic mass 123 kg
Operating mass 122 kg
Traction
Max. gradeability 30 %
Max. working speed 30 m/min
Compaction
Frequency 92 Hz
Amplitude 1.11 mm
Water tank volume 13.5 l
Centrifugal force 25 kN
Engine
Manufacturer/Model Hatz 1B 20
Emissions according to Stage V/non EPA
Type Air cooled diesel
Number of cylinders 1
Fuel consumption /h, avg. 0.7 l
Fuel tank capacity 3 l
Power 3.1 kW @ 3000 rpm

Operations & maintenance manuals

Equipment (Standard and options)

Standard


■ Foldable steering handle with vibration isolation
■ Highly wear resistant base plate
■ Automatic decompression
■ All around protection for V-belt
■ Protection frame for powerpack
■ Recoil starter
■ Carrying handles
■ One point lift

Optional


■ Water sprinkler system 13,5l (+10kg)
■ Comfort handle
■ Puncture proof transport wheels (+4kg)
■ Block paving mat
■ Service Kit
