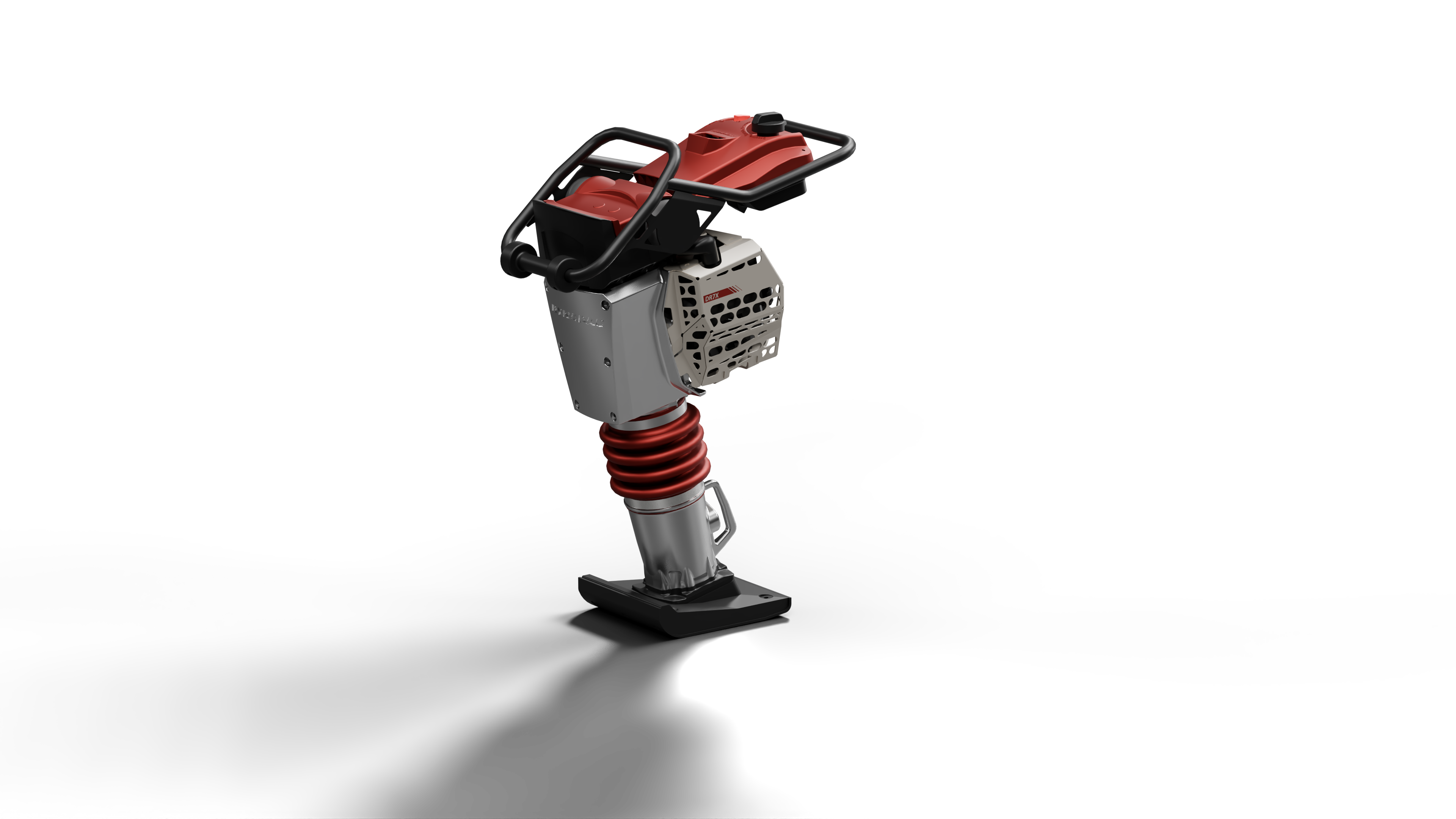

Dynapac DR7X

Dynapac DR7X Rammers

  • Pictures
  • Dimensions
B. Width 350 mm
H. Height 1030 mm
L. Length 728 mm
L1. Length 335 mm
W. Basic shoe width 280 mm
Operating Mass: 68 kg
Compaction Width: 280 mm

Technical data

Net mass 67 kg
Operating mass 68 kg
Max. area coverage 336 m2 /h
Max. working speed 20 m/min
Impact force, kN 17 kN
Vibration frequency 10.0 – 11.8 Hz
Manufacturer/Model Honda GXR 120
Number of cylinders 1
Type Air cooled gasoline
Emissions according to Stage V / CARB Phase lll
Rated power 2.8 kW
Fuel tank capacity 3 l
Fuel consumption /h, avg. 0.9 l

Operations & maintenance manuals

Equipment (Standard and options)


■ Low vibration handle
■ Dual stage fuel filter system
■ Air filter
■ Air pre-filter with self cleaning housing
■ Auto oil level check before start
■ Engine protection covers
■ One knob to start or stop both engine & fuel
■ Infinitely variable frequency
■ Recoil starter
■ Loading aid rollers on handle
■ One point lift
■ Hour and rpm display


■ Puncture proof transport wheels
■ Foot widths & extensions
■ Service kit
