Light Equipment

Dynapac DRP15X Plate compactors

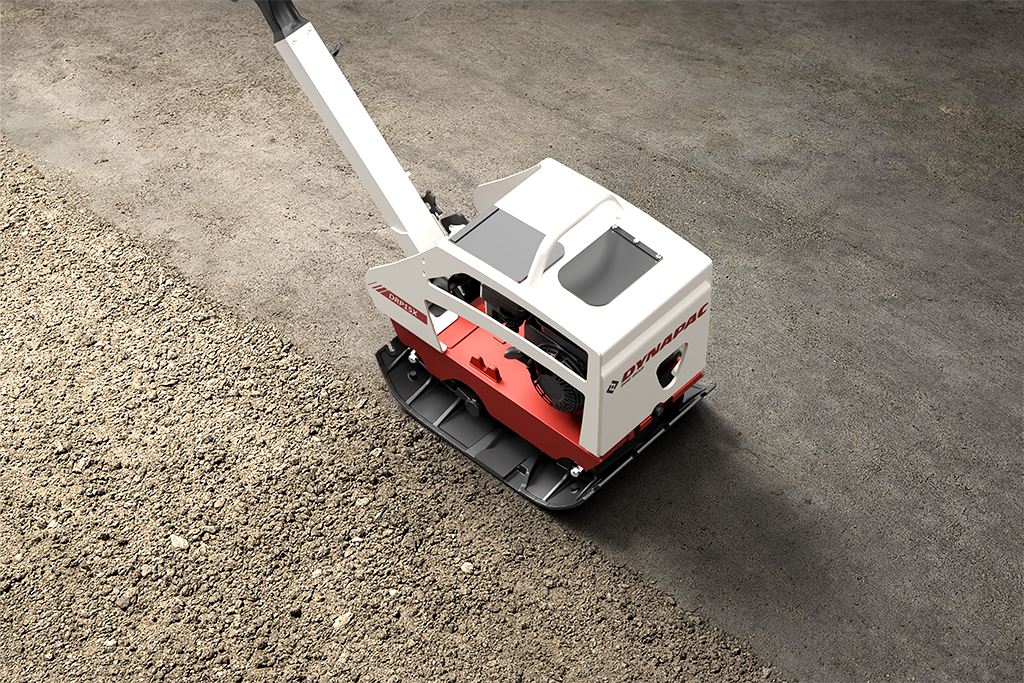

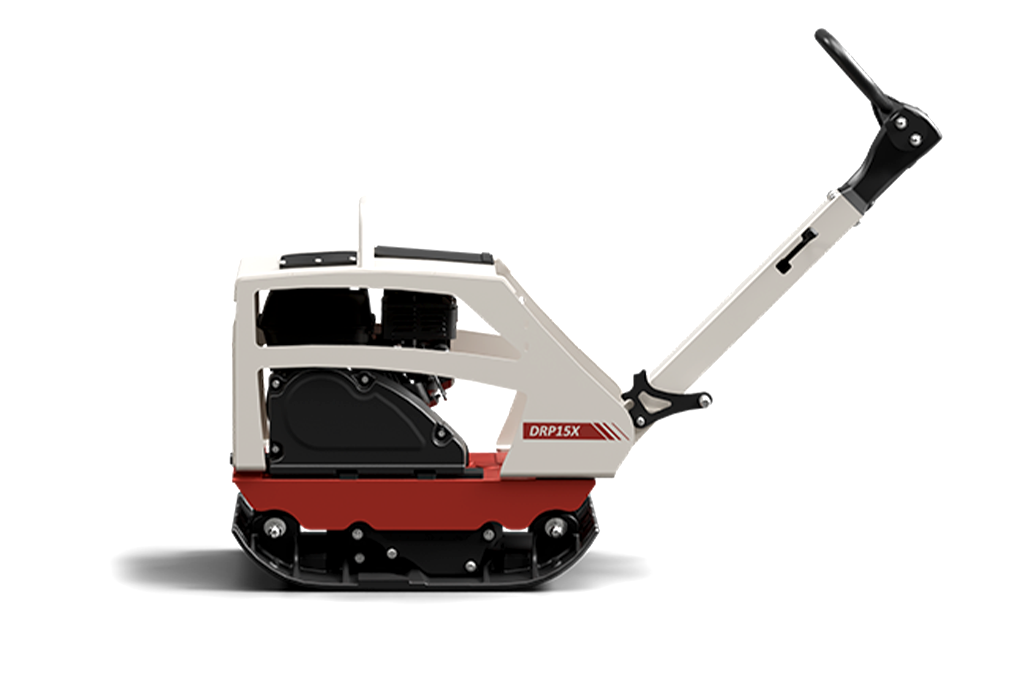

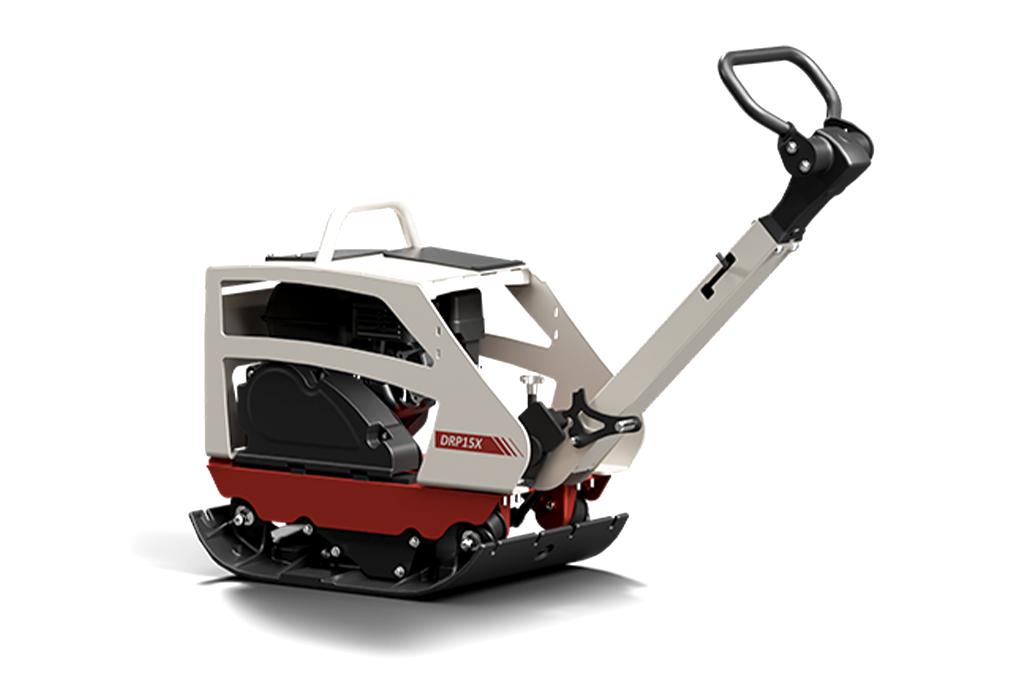

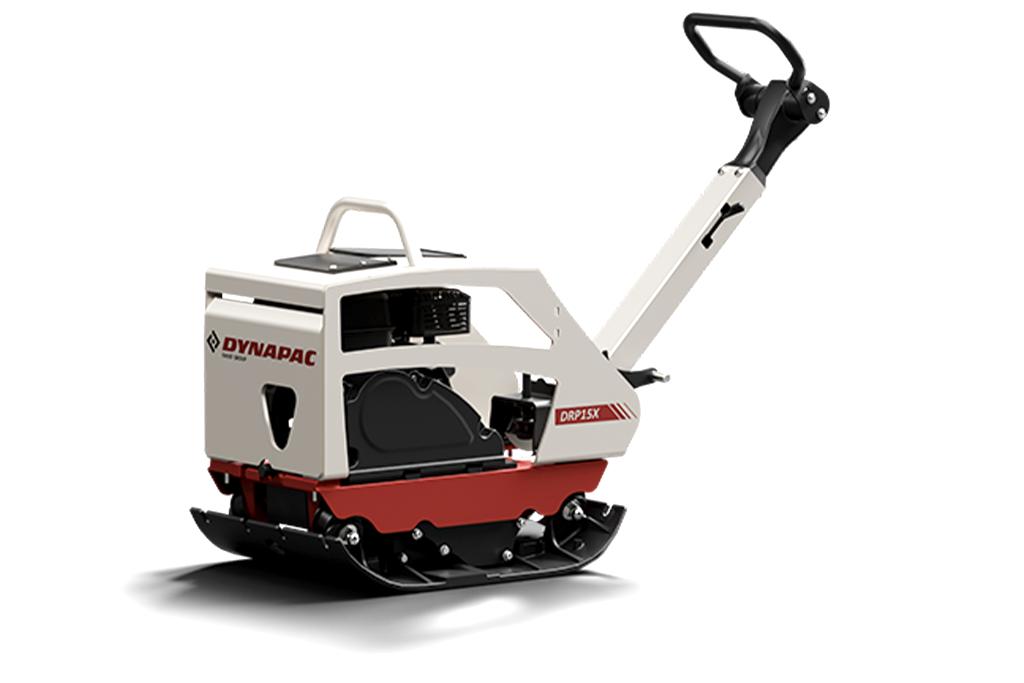

  • Pictures
  • Dimensions
H. Height 660 mm
H1. Height 870 mm
H2. Height 1220 mm
L. Length 1460 mm
L1. Length 650 mm
W. Basic plate width 500 mm

Product information

Technical data

Masses
Basic mass 137 kg
Operating mass 140 kg
Traction
Max. gradeability 30 %
Max. working speed 25 m/min
Compaction
Frequency 85 Hz
Centrifugal force 25 kN
Amplitude 1.31 mm
Water tank volume 13.5 l
Engine
Manufacturer/Model Honda GX 160
Emissions according to CARB Phase III
Type Air cooled gasoline
Number of cylinders 1
Fuel consumption /h, avg. 1.1 l
Fuel tank capacity 3 l
Power 3.6 kW @ 3600 rpm

Operations & maintenance manuals

Equipment (Standard and options)

Standard


■ Control handle with vibration isolation
■ Height adjustable control lever
■ Control lever lock in transport and working position
■ Reverse drive protection
■ Highly wear resistant base plate
■ All around protection hood
■ All around protection for V-belt
■ Automatic shutdown at low oil level
■ One point lift
■ Recoil starter

Optional


■ Block paving mat
■ Puncture proof transport wheels (+4kg)
■ Water sprinkler system 12l (+13kg)
■ Service Kit
