Light Equipment

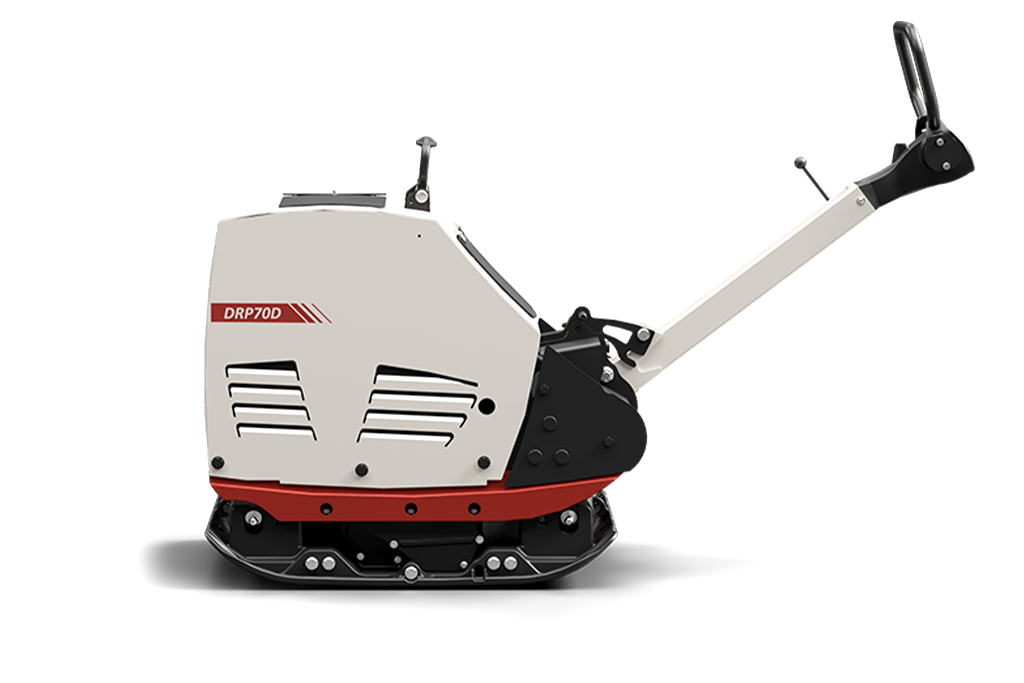

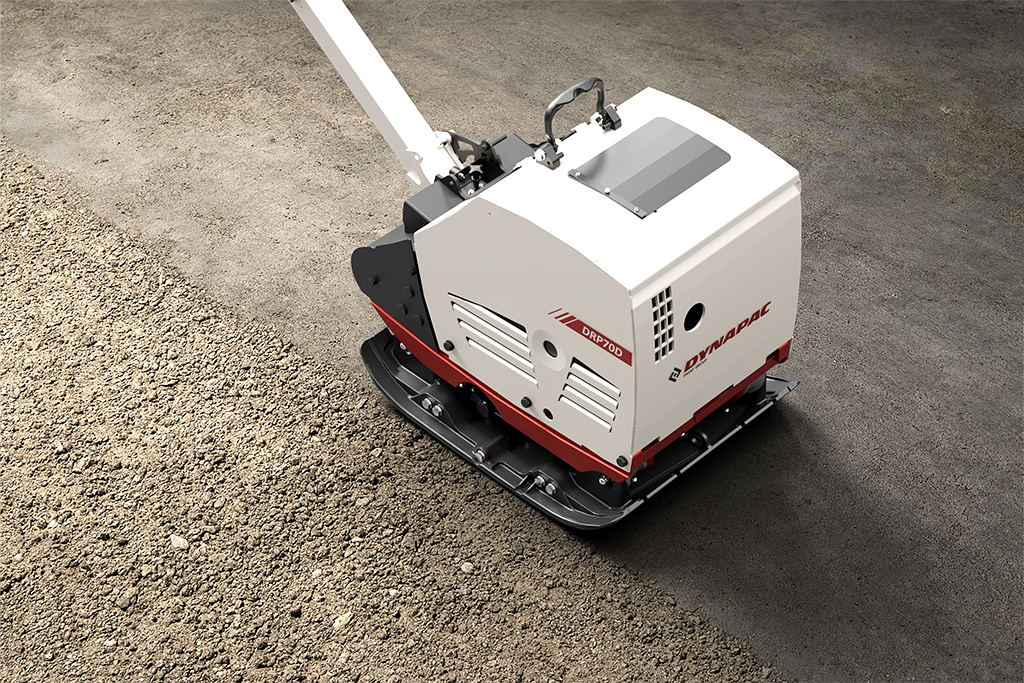

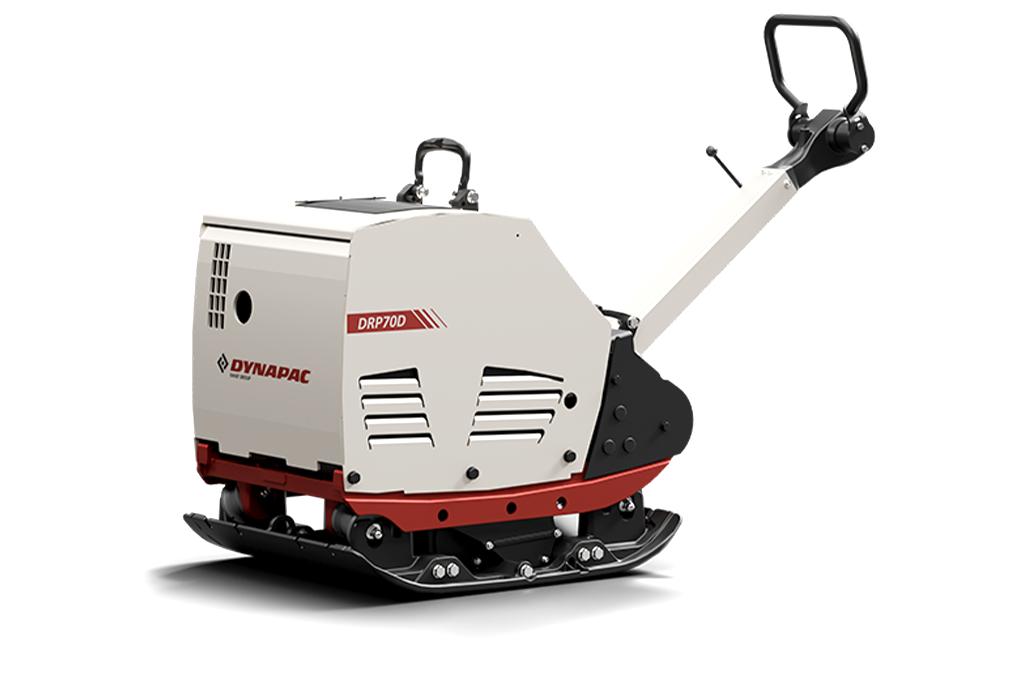

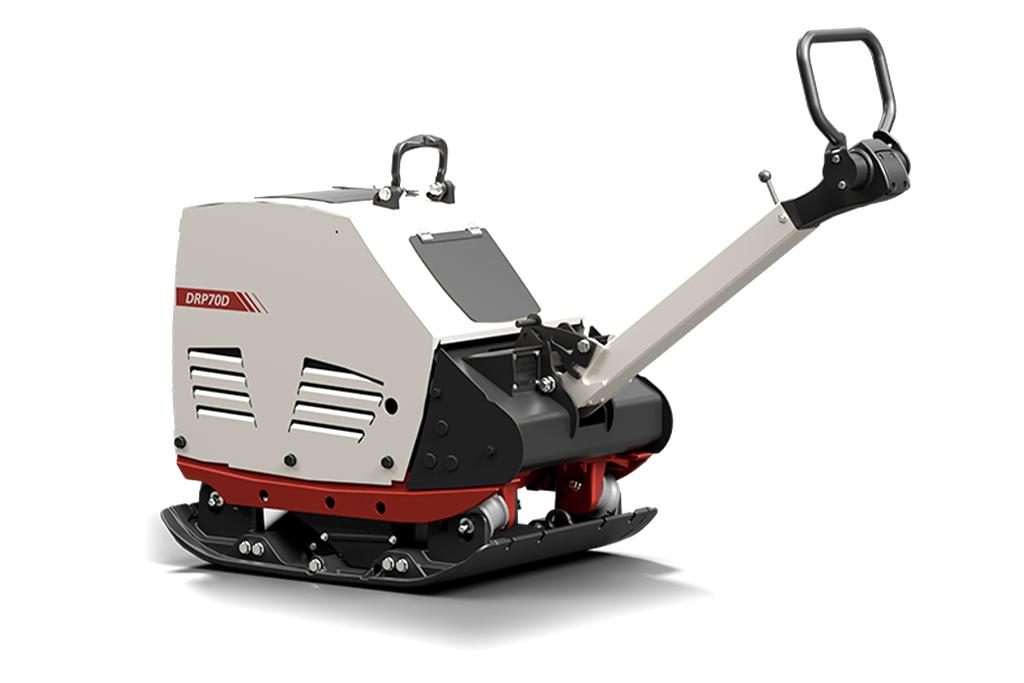

Dynapac DRP70D Plate compactors

  • Pictures
  • Dimensions
H. Height 910 mm
H1. Height 1180 mm
H2. Height 1540 mm
L. Length 1890 mm
L1. Length 980 mm
W. Basic plate width 800 mm
W1. Plate width, without extensions 650 mm
W2. Plate width, with extensions 950 mm

Product information

Technical data

Basic mass 695 kg
Operating mass (CECE) 687 kg
Operating mass (W) 677 kg
Operating mass (W1) 700 kg
Operating mass (W2) 716 kg
Max. gradeability 35 %
Max. working speed 28 m/min
Frequency 54 Hz
Centrifugal force (front/rear) 100 kN
Amplitude (front/rear) 2.70 mm
Manufacturer/Model Hatz 1D 90
Emissions according to Stage V
Type Air cooled diesel
Number of cylinders 1
Fuel type Diesel
Fuel consumption /h, avg. 2.2 l
Fuel tank capacity 10 l
Power 10.3 kW @ 2600 rpm

Operations & maintenance manuals

Equipment (Standard and options)


■ Control handle - comfort - with vibration isolation
■ Height adjustable control lever
■ Control lever lock in transport and working position
■ Reverse drive protection
■ Highly wear resistant base plate
■ All around protection hood
■ All around protection for V-belt
■ Automatic shutdown at low oil level
■ One point lift
■ Electric starter
■ Hour meter


■ Crank start handle (+3kg)
■ Block paving mat
■ Extension plate
■ Service Kit
