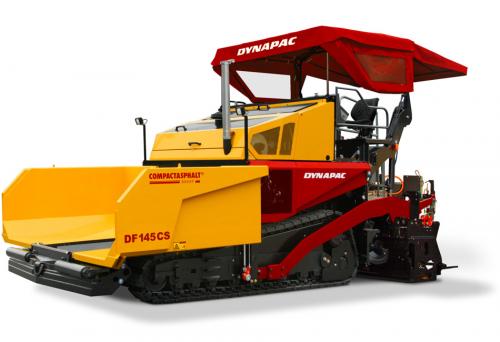

DF145CS Tracked pavers

  • Pictures
  • Dimensions
H3. Height
Discontinued true
With the DF145CS Dynapac offers an ultramodern paver which copes easily working widths up to 13.5m. Equipped with an innovative control concept surface irregularities are compensated and an excellent surface quality is the result.
Basic paving width: 2.55 m
Max. paving width: N/A m
Max. layer thickn.: 350 mm
Theor placement cap.: 900 t/h

Technical data

Masses
Weight 20.30 t
Traction
Paving speed 0-23 m/min
Transport speed 5 km/h
Engine / Drive
Manufacturer/Model Deutz QSB 6.7-C220
Emissions according to EU3A / Tier 3
Rated power, SAE J1995 172 kW (230.0 hp ) @ 1800 rpm
Electrical system 24V
Fuel tank capacity l
Operation
Operator console Slidable left/right
Operator seat Adjustable, turnable, fluid-cushioned comfort seat
Conveyor
Conveyor type Dual bar feeder
Conveyor width 600 mm
Conveyor control Proportional speed control, both sides driven independently

Operations & maintenance manuals

Please Log in or Register to MyDynapac to get access.

Fluids

Auger gear box
Type of fluid Volume Additional info
Dynapac Gear Oil 300 1,2 liter
Conveyor gear box
Type of fluid Volume Additional info
Dynapac Gear Oil 300 3 liter
Grease
Type of fluid Volume Additional info
Dynapac Paver Grease
Split gear box
Type of fluid Volume Additional info
Dynapac Gear Oil 300 4,5 liter
Track gear box
Type of fluid Volume Additional info
Dynapac Gear Oil 200 8 liter

Service Kits

Conveyor chain kit
Category Subcategory P/N Additional info
Paving Tracked pavers 4700679632
Paving Tracked pavers 4700679632 Double quantity of bars
Conveyor guide kit
Category Subcategory P/N Additional info
Paving Tracked pavers 4700679633
Conveyor plate kit
Category Subcategory P/N Additional info
Paving Tracked pavers 4700690785 COM3
Rubber pad kit
Category Subcategory P/N Additional info
Paving Tracked pavers 4700679545
Paving Tracked pavers 4812025454 New type of rubber pads, rebuild kit
Paving Tracked pavers 4812025460 New type of rubber pads, replace kit
Service kit , 1000H
Category Subcategory P/N Additional info
Paving Tracked pavers 4700690770 BF6M 2012C
Paving Tracked pavers 4812025553 TCD 2012 L06V COM3, without bio oil
Paving Tracked pavers D299000892 TCD 2012 L06V COM3, 2 belt-version
Service kit , 500H
Category Subcategory P/N Additional info
Paving Tracked pavers D299000460 BF6M 2012C
Paving Tracked pavers 4812025552 TCD 2012 L06V COM3, without bio oil
Paving Tracked pavers 4812044732 Deutz engine TCD 2012 L06-COM 3
Including oil
Wear part kit - Conveyor drive
Category Subcategory P/N Additional info
Paving Tracked pavers D299010010 COM3
