Paving

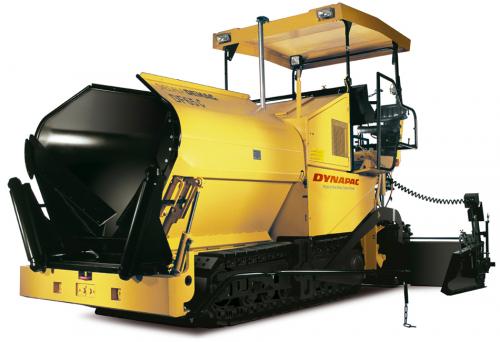

DF65C Tracked pavers

  • Pictures
  • Dimensions
H3. Height
The DF65C manages easily working widths from 1.10m (with cut-off shoes) up to 4.10m. Even on insecure ground this pavers ensures high paving quality and remains stable due to its long tracks and significant high traction.
Basic paving width: 1.70 m
Max. paving width: N/A m
Max. layer thickn.: 270 mm
Theor placement cap.: 300 t/h
Manufacturer / Model: Deutz

Technical data

Masses
Weight 9.60 t
Traction
Paving speed 0-32 m/min
Transport speed 3.80 km/h
Engine
Manufacturer Deutz
Manufacturer/Model Deutz
Emissions according to EU 3A/Tier 3
Type TD 2011 L04
Rated power 52 kW
Rated power 71.0 hp
Rated power @ 2300 rpm
Rated power, SAE J1995 52 kW (71.0 hp ) @ 2300 rpm
Electrical system 2 x 12 V, 72 Ah
Operation
Operator console Slidable left/right
Operator seat Adjustable, turnable, fluid-cushioned comfort seat
Conveyor
Conveyor type Dual bar feeder
Conveyor width 350 mm
Conveyor control Both sides independent

Operations & maintenance manuals

Service Kits

Auger wear part kit
Category Subcategory P/N Additional info
Paving Tracked pavers 4812027478 380 mm
Conveyor chain kit
Category Subcategory P/N Additional info
Paving Tracked pavers 4812029178 single quantity of bars
Paving Tracked pavers 4812027444 double quantity of bars
Conveyor drive kit
Category Subcategory P/N Additional info
Paving Tracked pavers 4812035552
Conveyor guide kit
Category Subcategory P/N Additional info
Paving Tracked pavers 4812027440
Conveyor guide roller kit
Category Subcategory P/N Additional info
Paving Tracked pavers 4812035553
Conveyor plate kit
Category Subcategory P/N Additional info
Paving Tracked pavers 4812027441
Hopper rubber kit, hydr. front flap
Category Subcategory P/N Additional info
Paving Tracked pavers 4812045834
Hopper rubber kit, reinforced, hydr. front flap
Category Subcategory P/N Additional info
Paving Tracked pavers 4812007263
Hopper rubber kit, standard, hydr. front flap
Category Subcategory P/N Additional info
Paving Tracked pavers 4812011023
Hopper rubber kit; standard
Category Subcategory P/N Additional info
Paving Tracked pavers 4812045783 Standard
Paving Tracked pavers 4812007262 Valid for s/n 0G000974, 988, 998, 1001, 1016, ff
Rubber pad kit
Category Subcategory P/N Additional info
Paving Tracked pavers 4812035550
Service kit
Category Subcategory P/N Additional info
Paving Tracked pavers 4700691229 Tier 3
Service kit , 1000H
Category Subcategory P/N Additional info
Paving Tracked pavers 4812041235 Tier 3, Standard
Paving Tracked pavers 4812046969 Tier 3, stage 2
Valid for s/n 0G00974, 977, 979, 981, 984, 985, 990, 991, 992, 993, 995, 998-1002, 1008, 1011, 1016, 1017, 1018, 1020, 1024, 1025, ff
Service kit , 500H
Category Subcategory P/N Additional info
Paving Tracked pavers 4700691229 Tier 3
