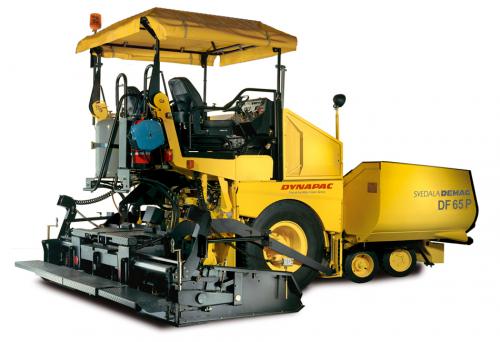

DF65P Wheeled pavers

  • Pictures
  • Dimensions
H4. Dumping height
K. Ground clearance
L2. Length, hopper
Discontinued true
The DF65P with screed type EB34-(E) is intended for a wide spectrum of uses requiring exceptional mobility and placement quality – such as new roads, resurfacing, maintaining and repairing secondary and rural roads, narrow streets and alleys, car parks and areas of large open-plan building sites.
Basic paving width: 1.70 m
Max. paving width: N/A m
Max. layer thickn.: 270 mm
Theor placement cap.: 250 t/h

Technical data

Masses
Weight 8.50 t
Traction
Paving speed 0 - 32 m/min
Maximum paving speed m/s
Transport speed 18 km/h
Engine / Drive
Manufacturer Deutz
Model TD 2011 L04
Manufacturer/Model Deutz TD 2011 L04
Rated power 52 kW
Rated power 71.0 hp
Rated power @ 2300 rpm
Rated power 52 kW (71.0 hp ) @ 2300 rpm
Emissions according to EU 3A/Tier 3
Electrical system 2 x 12V, 72Ah
Alternative Engine
Manufacturer/Model
Operation
Operator console Adjustable left/right
Operator seat Adjustable, comfortable, hydraulically sprung seat
Conveyor
Conveyor type Dual bar feeder
Conveyor width 350 mm
Conveyor control On/off switch, running direction of each side independently reversible
