Paving

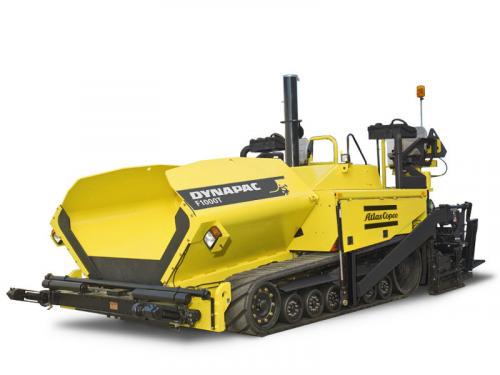

Dynapac F1000T Tracked pavers

  • Pictures
  • Dimensions
A. Axle track
B2. Width, standard 3.05 m
H3. Height
H3. Height
L1. Length
L2. Length, wheelbase
Discontinued true
The DYNAPAC F1000T is a rubber track paver finisher that is used for laying bituminous mixed material, rolldown or lean-mixed concrete, track-laying ballast and unbound mineral aggregates for foundations for paving.
Basic paving width: 3.05 m
Max. paving width: N/A
Max. layer thickn.: 305 mm
Theor placement cap.: N/A

Technical data

Masses
Weight 17235 kg
Traction
Maximum paving speed 1.20 m/min
Maximum travel speed 4.40 m/min
Drive system Integrated hydrostatic drive system
Track width 460 mm
Engine / Drive
Manufacturer/Model Deutz QSB6.7 Tier III
Emissions according to EU3A / Tier 3
Rated power, SAE J1995 169 kW (230 hp ) @ 1800 rpm
Electrical system 24V, 70A
Operation
Operator console Dual swing out operation stations
Conveyor
Conveyor type Dual independent slat conveyor
Conveyor control Proportional speed control, both sides driven independently

Operations & maintenance manuals

Please Log in or Register to MyDynapac to get access.

Fluids

Grease
Type of fluid Volume Additional info
Dynapac Paver Grease

Service Kits

Service kit , 1000H
Category Subcategory P/N Additional info
Paving Tracked pavers D299000406 6BTA5.9-C200 without bio oil
Paving Tracked pavers D299000408 6BTA5.9-C200, with bio oil
Paving Tracked pavers D299000411 QSB 5.9 - C205 + C230 without bio oil
Paving Tracked pavers D299000413 QSB 5.9 - C205 + C230 with bio oil
Paving Tracked pavers 4700691338 QSB 6.7 - COM3, with bio oil
Paving Tracked pavers 4700691337 QSB 6.7 - COM3, without bio oil
Service kit , 500H
Category Subcategory P/N Additional info
Paving Tracked pavers D299000405 6BTA5.9-C200 without bio oil
Paving Tracked pavers D299000405 6BTA5.9-C200, with bio oil
Paving Tracked pavers D299000410 QSB 5.9 - C205 + C230 without bio oil
Paving Tracked pavers D299000410 QSB 5.9 - C205 + C230 with bio oil
Paving Tracked pavers 4700691229 QSB 6.7 - COM3, with bio oil
Paving Tracked pavers 4700691229 QSB 6.7 - COM3, without bio oil

Spare parts manuals

Eager to see the spare parts of Dynapac F1000T?

Please Log in or Register to MyDynapac to get access.

Schematics

Eager to see the schematics of Dynapac F1000T?

Please Log in or Register to MyDynapac to get access.
